Component Playgrounds PH45 - Playhouse Canopy Installation

To Next Page

To Previous Page

Step 1: Position slide on deck in

desired location

Step 2: Attach slide to deck with

two #14 x 1¼” Truss Screws.

PlasticSlideMountingInstructions

DeckMount

LadderMount

1½ “x 2¾” x 19”

WoodBlock

#14 x 1½”

SheetMetalScrew

3/8”x3”carriagebolt

3/8”hexnut

3/8”lockwasher

3/8”ﬂatwasher

AngleIronMountingBracket

Ladder

PlasticSlide

InstallationInstructionsfromtheSlideManufacturer

To mount the slide, choose a location that is ﬂ at and level. Use (2) #8 sheetrock screws or #10 ﬂ athead wood screws.

Install the screws into the countersunk drill points at the top of the slide. DO NOT OVER TORQUE!

This mounting con guration will allow your slide to receive a lot of abuse. If the slide is hit from the side by a lawn mower

or similar device, either the sheetrock screw will break or the screw head will pull through the slide. In such event, the next

size screw should be installed. This installation has proven to be very effective.

The slide can also be elevated at the bottom or foot area. Use (2) 2 x 4’s or (2) 2 x 6’s cut to the length desired for the

elevation needed. We recommend using wood screws or sheetrock screws to attach the risers to the slide.

Step 1: Attach angle iron mounting bracket

to ladder using 3/8” x 3” carriage bolt, 3/8”

ﬂ at washer, 3/8” lock washer and 3/8” nut.

Step 2: Center and attach wood block with

two #14 x 1½” Sheet Metal Screws.

Step 3: Place slide on wood block and

attach with two #14 x 1¼” Truss Screws.

#14 x 1¼”

TrussScrews

PlasticSlide

Deck

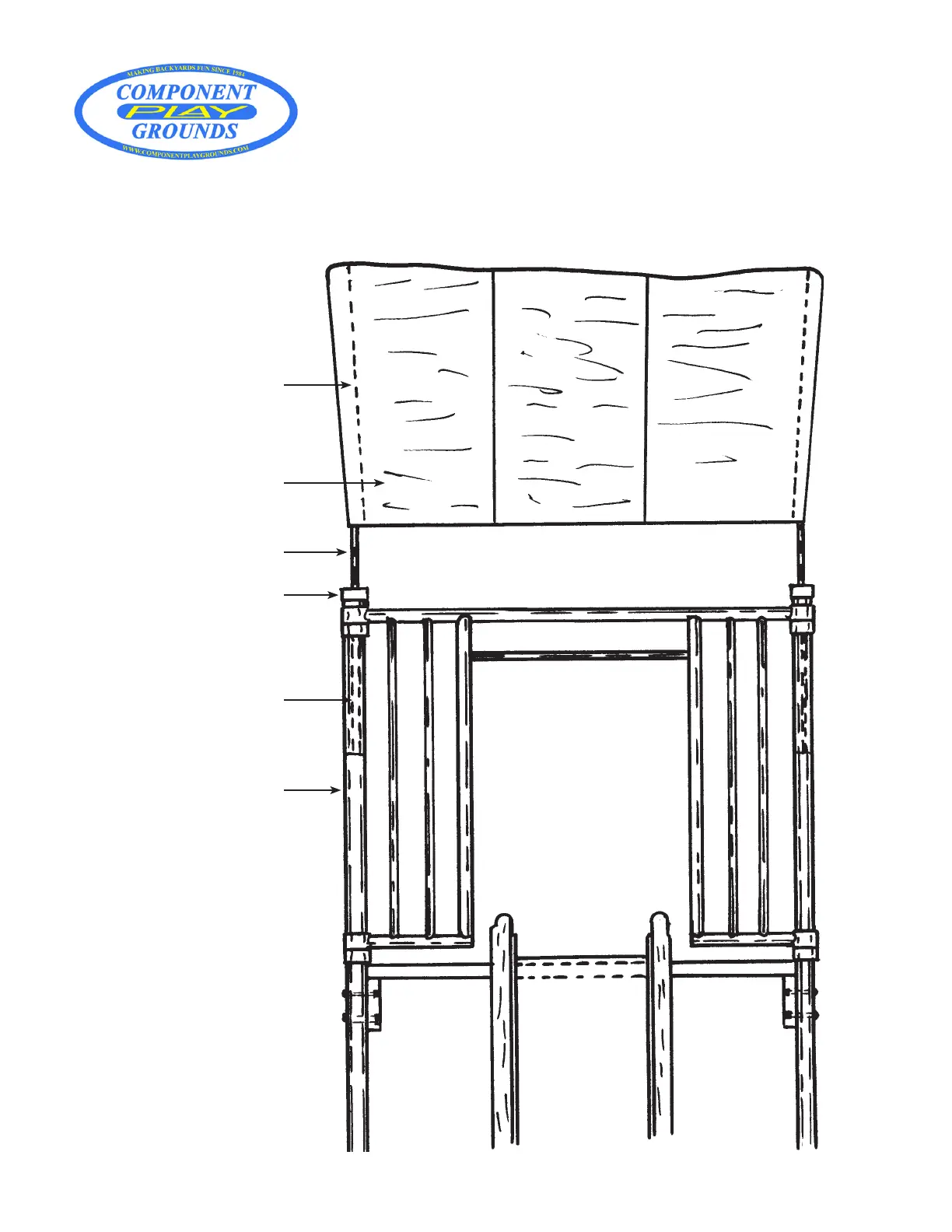

PlayhouseCanopy

CanopyPocket

Canopy

Arch

ArchSleeveattached

with 3/8” x 3/8” Set

Screw

ArchLeg

PlayhouseLeg

STEP 1: Slide Arches into Canopy Pockets. Top of Arches should curve away from each other.

STEP 2: Slide all four Arch Legs into Playhouse Legs at the same time. Tighten Set Screws.

***Canopy may be positioned either direction over the 4’x4’ deck.***
