OUTRIGGER ASSEMBLY

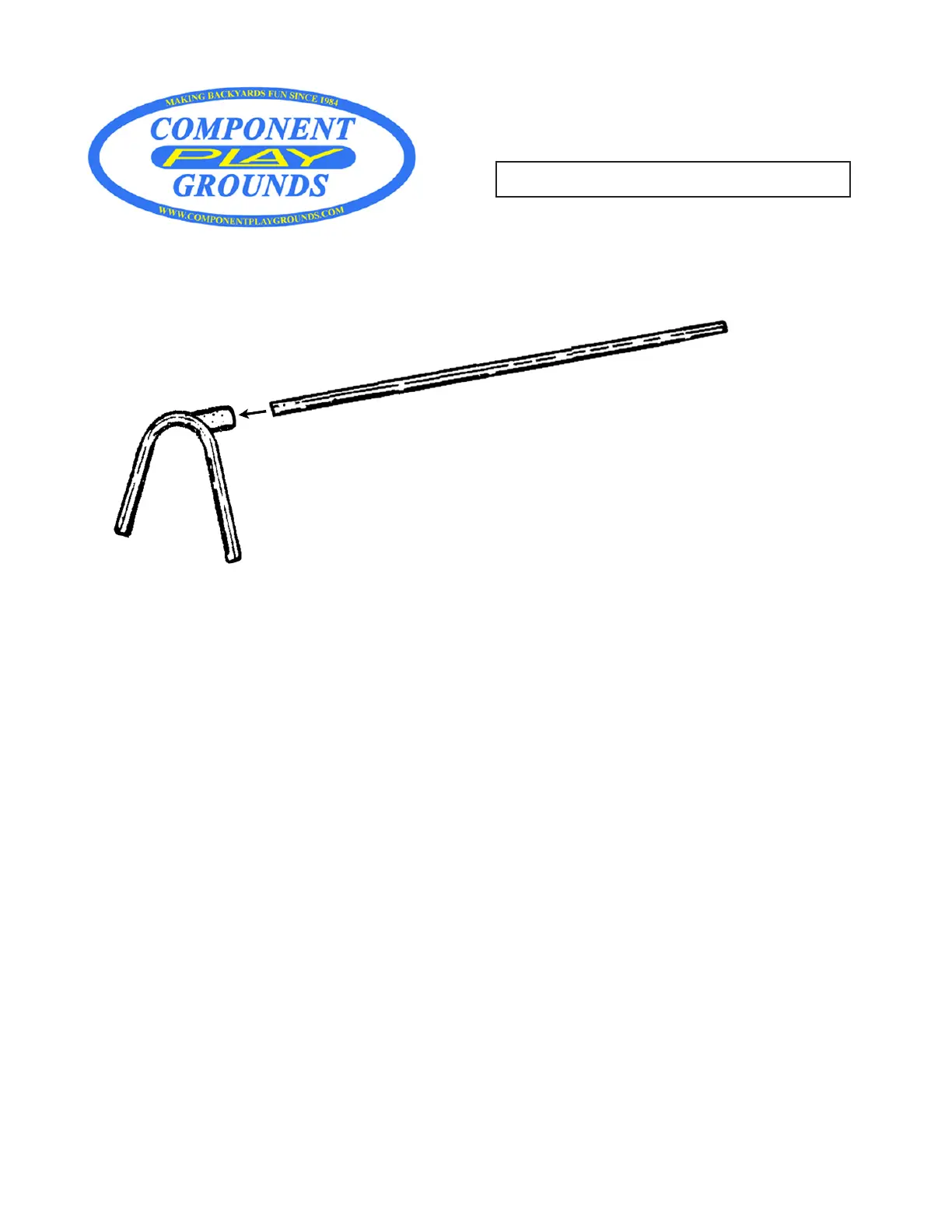

Step 1: Slide the end of the drilled Top Rail into the Sleeve of the

Triple End.

Step 2: Align the hole in the Top Rail with hole in the Sleeve of the

Triple End and join together using a 7/16” x 3 1/2” Hex Bolt and

7/16” Nyloc Nut.

Step 3: Insert and tighten (4) 3/8” x 3/8” set screws into the Triple

End Sleeve using Allen Wrench provided.
