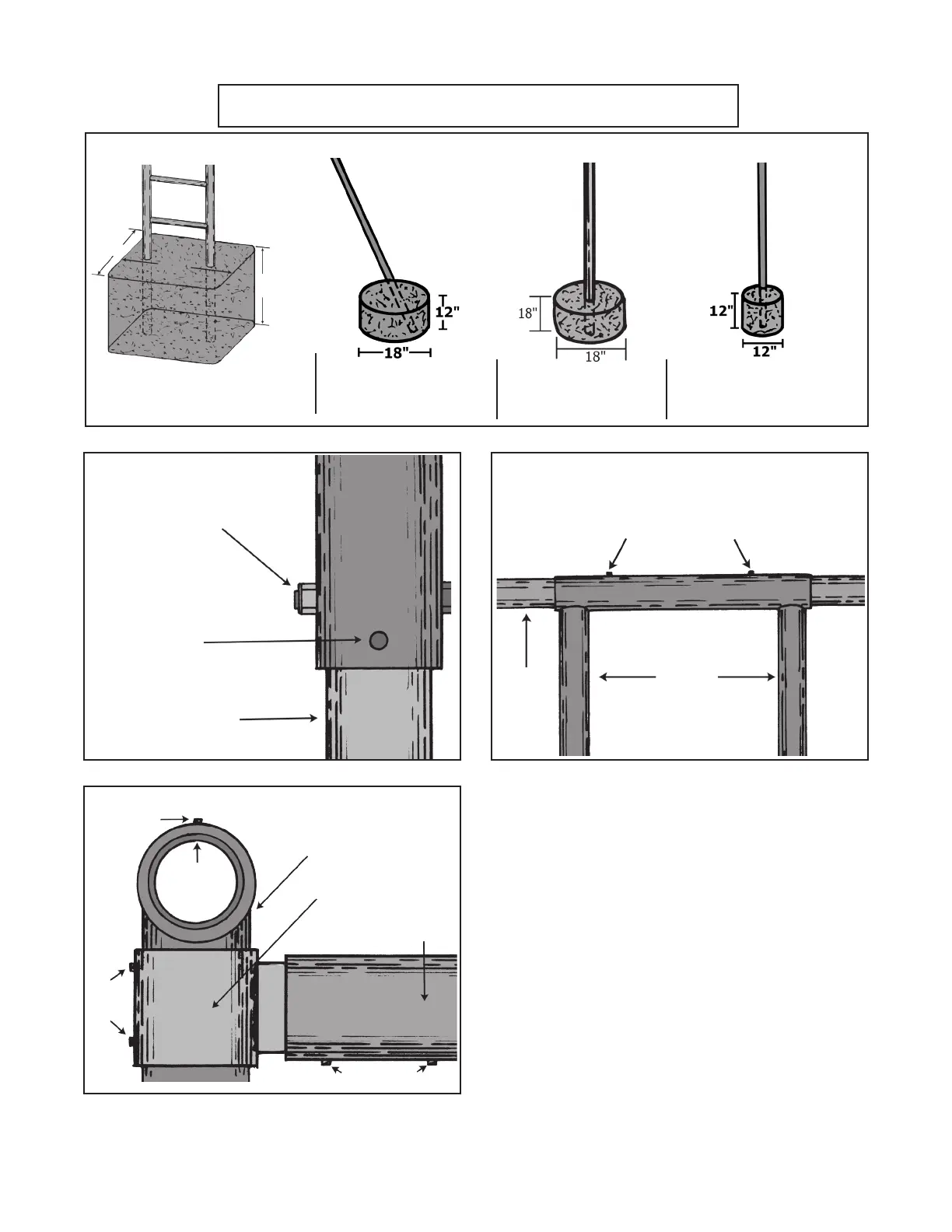

Component Playgrounds PH45 - Structural Assembly and Cementing; Hole Sizes for Cementing; Leg and Ladder Connection

ModelPH45Continued
Holes 18” x 12”
(approx. 1½ 80 lb. bags
concrete mix per hole)
(C) PH
Legs
3/8” x 2 3/4”
Hex Bolt with
3/8” Nyloc Nut
(1 each per leg)
3/8” x 3/8”
Set Screw
(1 each per leg)
Slide in Leg, bolt in
place and secure
with set screw
#2 A-Frame Leg Assembly
Ladder
Top Rail
Slide Ladder in
place on Top Rail
and secure with
two 3/8” x 3/8”
set screws.
#3LaddertoTopRailAssembly
Set Screw
Top Rail
Upright Ladder
Adjustable Sleeve
Horizontal Ladder
Set
Screws
Set Screws
#4HorizontalLaddertoUprightLadderAssembly
#1HoleSizesforCementingintheSet
28”
24”
20”
Hole 28”x20”x24”
(approximately 7 80 lb. bags
of concrete mix per hole)
(A) Upright
Ladder
DO NOT USE POSTMIX USE GOOD QUALITY CONCRETE MIX!
Triple End
A-Frame
Leg
Holes 18” x 12”
(approx. 1½ 80 lb. bags
concrete mix per hole)
(B) A-Frame
Legs
Hole 12” x 12”
(approx. one 80 lb. bag
concrete mix per hole)
(D) Wild
Climber
