Frequency
(MHz)
Transmitting
Antenna
Transmitting Antenna
7 m
Transmitting
Antenna
1.6 3-j1.310 3-j1.200 4-j1.060
2.0 4-j1.025 4-j950 5-j800
3.0 7-j970 8-j550 9-j470
4.0 9-j410 10-j325 11-j290
5.0 17-j260 18-j200 20-j145
6.0 20-j150 25-j95 28-j38
7.0 35-j65 40-j10 55+j55
8.0 40+j30 50+j90 60+j155
10.0 100+j190 130+j270 200+j400
12.0 600+j450 650+j450 1000+j300
16.0 1000+j200 900-j500 500-j500
18.0 700-j500 400-j500 250-j450
22.0 200-j400 90-j280 70-j80
25.0 90-j195 75-j10 240-j200
30.0 200+j150 500+j0 400-j300
Frequency range 1.6-30 MHz
Power rating 1.5 kW PEP
Impedance See separate section
Polarization Vertical
Pattern Omnidirectional
Electrical length 5.5 m (18 ft) (add 0.5 m (1.7 ft) for base mount)
6.5m (21 ft) (add 0.5 m (1.7 ft) for base mount)
7.5 m (25 ft) (add 0.5 m (1.7 ft) for base mount, subtract
Impedance Measurements:
Antenna mounted on a 2 m steelpipe over flat steel roof. Feed line
2 m.
Electrical specifications transmitting antennas:

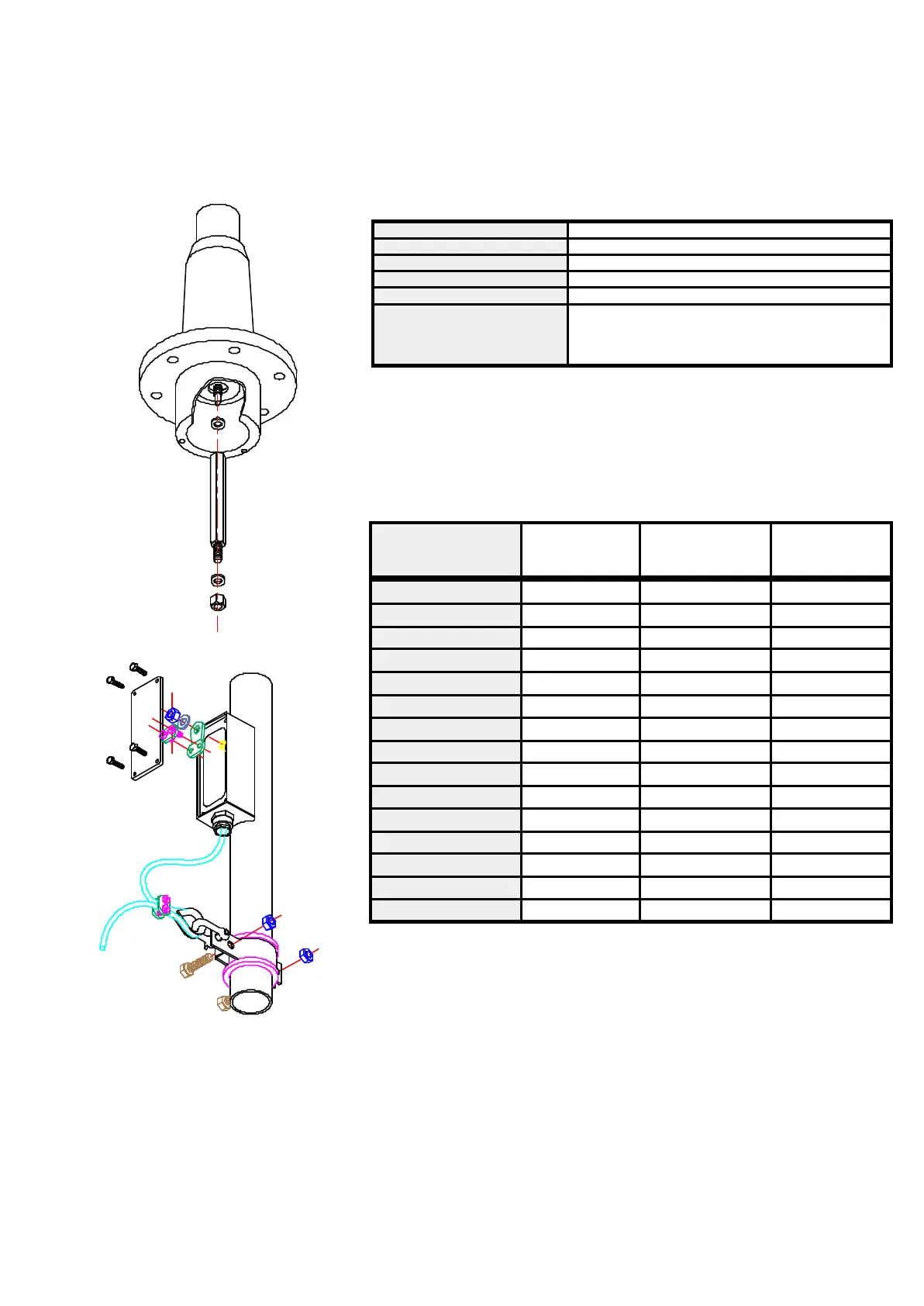

Connection kits for End feed
and Side feed transmitting
antennas
Nr: 06-6-018/3
