Comrod AT82 - Receiving Antenna Specifications; Electrical Specifications Receiving Antennas; Transformers for Receiving Antennas; Mechanical Specifications

Frequency range 0.15-30 MHz
Polarization Vertical
Pattern Omnidirectional
Electrical length 5.5 m (18 ft) (add 0.5 m (1.7 ft) for base
mount)
6.5m (21.5 ft) (add 0.5 m (1.7 ft) for base
mount)
7.5 m (25 ft) (add 0.5 m (1.7 ft) for base
Electrical specifications receiving antennas:
Design Selfsupporting fiberglass rod with aluminium or
Height 6 m (20 ft)
7 m (23 ft)
Weight 6 m: 7.0 kg
7 m: 7.6 kg
Sections 6 m:
Base: AXB22 Bracket,
side feed: AXB22D flange,
end feed: AXB22D/S Flange, side feed
Top: APB41
7 m:
Base: AXB32 Bracket,
side feed AXB32D Flange,
end feed AXB32D/S Flange,
side feed Top:APB41
8 m:
Base: AXB42 Bracket,
side feed AXB42D Flange,
end feed AXB42D/S Flange,
Wind rating 55 m/s = 125 mph
Moment of flexure 6 m: 53.3 kpm at 55 m/s
7 m: 75.3 kpm at 55 m/s
Deflection due to wind load 6 m: 2.4 m (8 ft) at tip ball at 55 m/s wind
load
Finish Polyurethane lacquer, white
Temperature range -55 °C, +55 °C, -67° F, +131 °F
Ice buildup Not affected
Transformers for Receiving antennas:
When a long feeding cable is necessary, a transformer is
recommended to compensate for the signal strength loss
in the cable. A transformer is also recommended if the
antenna is used mainly on low frequencies.
The transformer is mounted on a circuit board that is
easily installed. For specifications please refer to separate
datasheet.

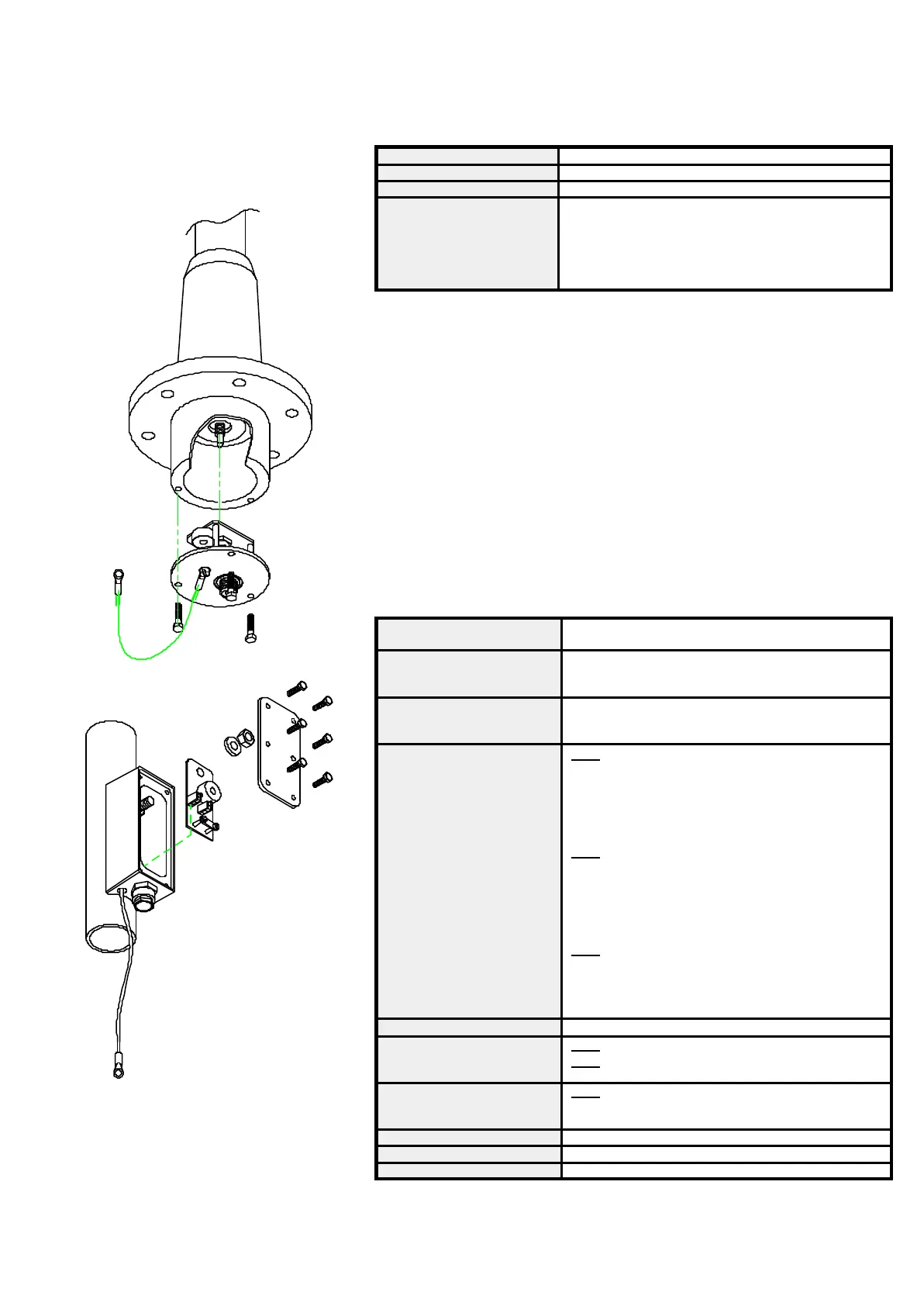

Mechanical specifications:
End feed, side feed receiving
antennas.
