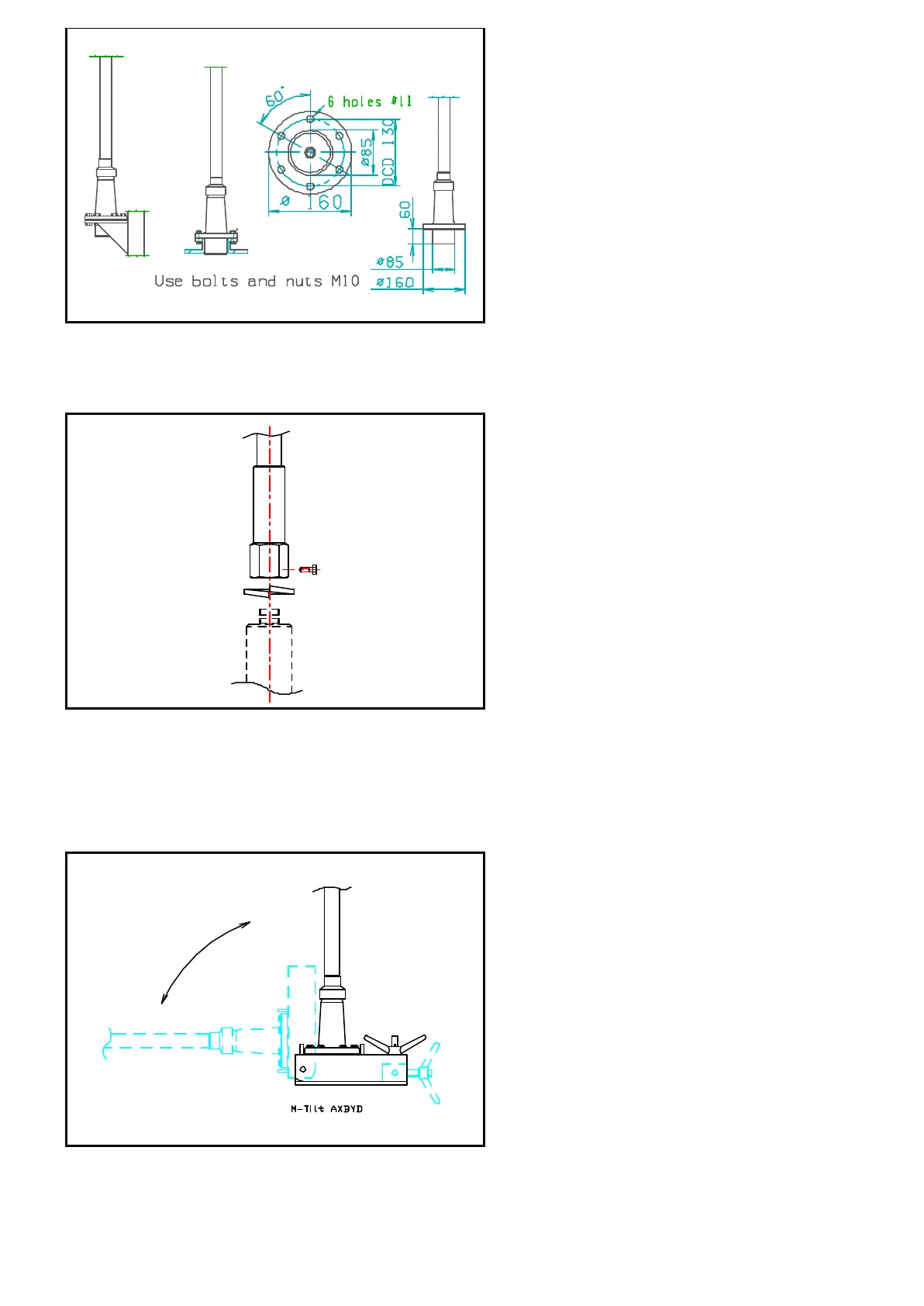

Base mount, End feed:
Versions: AT82D, AT72D, AT62D
AR82D, AR72D, AR62D
AR82D/T, AR72D/T, AR62D/T
Mounted on a flange or bracket.
Cable is connected with a UHF female
connector on the receive antennas.
Mounting of top whip:
In order to mount the whip to the base
section, use the spring washer and firmly
screw the whip and base section together
using a torque of 200 Nm. The Grub screw
is then tightened, this prevents the top whip
from unscrewing.
Tilting mechanism optional for Base mount
side feed:
M-Tilt AXBYD.
Electrical tilt after request.
M-Tilt is mounted on deck or pedestal by
means of 4 x M12 bolts. Mountings to the
antenna flang holes. 6pcs. M10x40 bolts
with nuts (included).
Base mount, end feed.
Top whip
Manual tilt.
