Positive Displacement Pump IMB036/0898

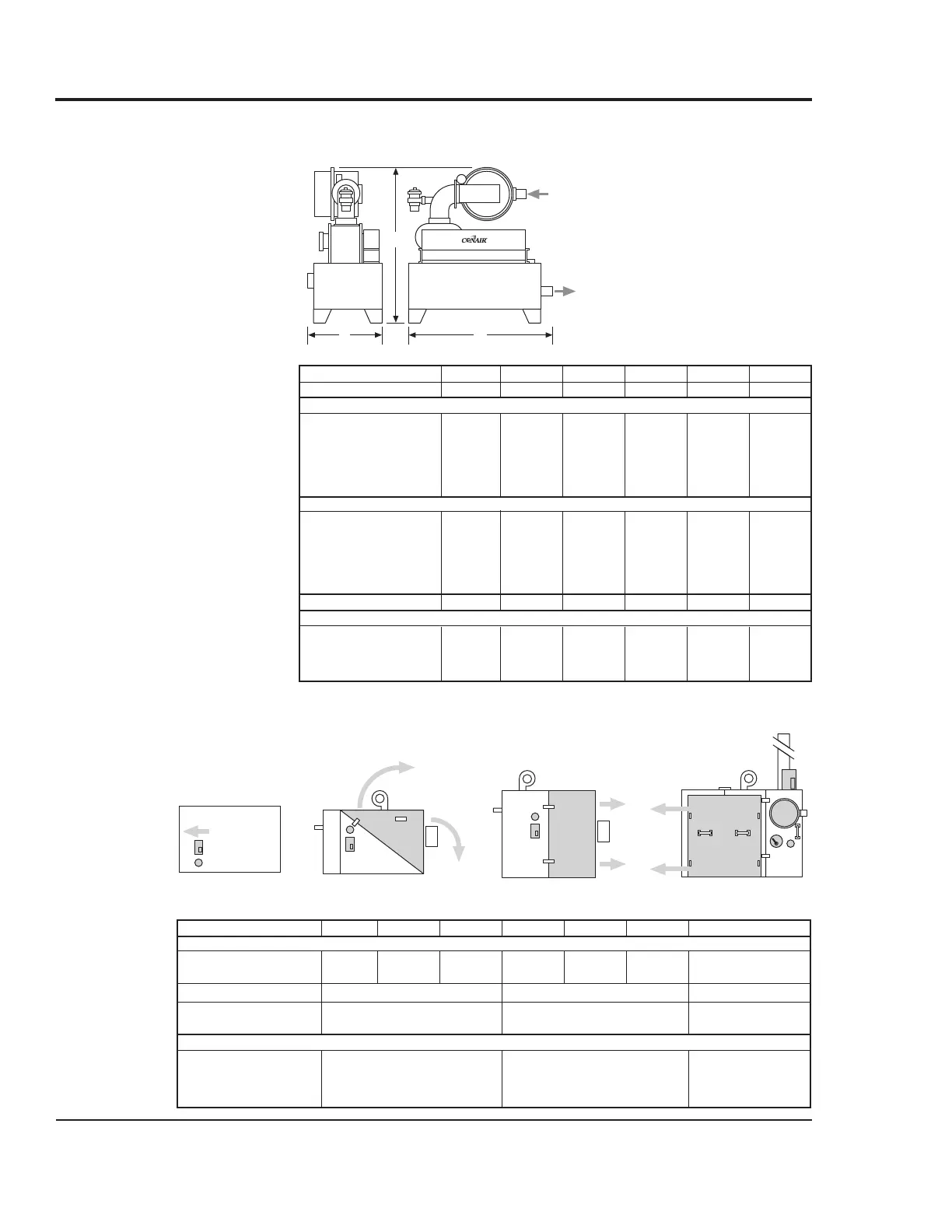

SPECIFICATIONS: POSITIVE DISPLACEMENT PUMP
MODEL PD3 PD5 PD7.5 PD10 PD15 PD25
Motor Type* TEFC TEFC TEFC ODP ODP ODP
Performance characteristics
Horsepower 3 5 7.5 10 15 25
Standard CFM at material
pickup point @ 10" Hg 52.6 76.6 121.2 154.5 201.1 346.2
Average sound level (dbA)
@ 8", 10" and 12" Hg 86 86.3 86 85.8 88.8 93
Dimensions / in. {mm}
Standard inlet line size (OD) 1.5 {38} 1.75 {44} 2.25 {57} 2.5 {64} 3.0 {76} 4.0 {102}
Exhaust line size (OD) 2.5 {64} 2.5 {64} 2.5 {64} 4.0 {102} 4.0 {102} 4.0 {102}
Height (H) 37 {940} 37 {940} 41 {1041} 51 {1295} 51 {1295} 52 {1321}
Width (W) 35 {889} 35 {889} 35 {889} 39.5 {1003} 39.5 {1003} 39.5 {1003}
Depth (D) 27 {686} 27 {686} 27 {686} 33 {838} 33 {838} 34 {864}
Installed Weight / lb {kg} 325 {147} 325 {147} 370 {168} 625 {283} 640 {290} 960 {435}
Voltage / Full Load Amps
240 V/3 phase/50-60 hz 7.6 12 18.8 28 39 59
480 V/3 phase/50-60 hz 3.8 6 9.4 14 19.5 29.5
575 V/3 phase/50 2.9 4.8 7.5 10.7 16 27
MODEL PD3 PD5 PD7.5 PD10 PD15 PD25 SUPER (ANY MODEL)
Performance characteristics
Average sound level (dbA)
@ 8", 10" and 12" Hg
61.9 69.8 76.2 79.3 86.0 90.0 Under 60 dbA
Enclosure Construction Painted Steel Natural Aluminum Painted Steel
Allowance Space for
service access / in
48 (Opposite Vacuum Inlet) 36 (Opposite Vacuum Inlet) 36 (Front, Next to Filter)
Dimensions / in. {mm}
Height (H) 49 {1245} 64 {1626} 96 {2438}
Width (W) 54 {1372} 55 {1397} 70 {1778}
Depth (D) 32 {813} 36 {914} 50 {1270}
D
H
W
Vacuum
Inlet
Exhaust
Specifications not listed below are the same as those listed above. All Sound Enclosures include a cooling fan 115 VAC @ 2 amps.
Starter
Service
Vacuum Inlet
Vacuum Gauge
V
10, 15, 25 HP
V
Super Quiet
V
SPECIFICATIONS: PUMPS WITH SOUND ENCLOSURES
3, 5, 7.5 HP
V
