3DEEP LEARNING PLUS QUICK START GUIDE
WHAT’S IN THE BOX?
Packaging Contents
Technical Documents
DL PLUS Unit x1 Quick Start Guide x1
DC12V Power Supply Adapter x1 Cable Clamp x1
Screw x1
INSTALLATION

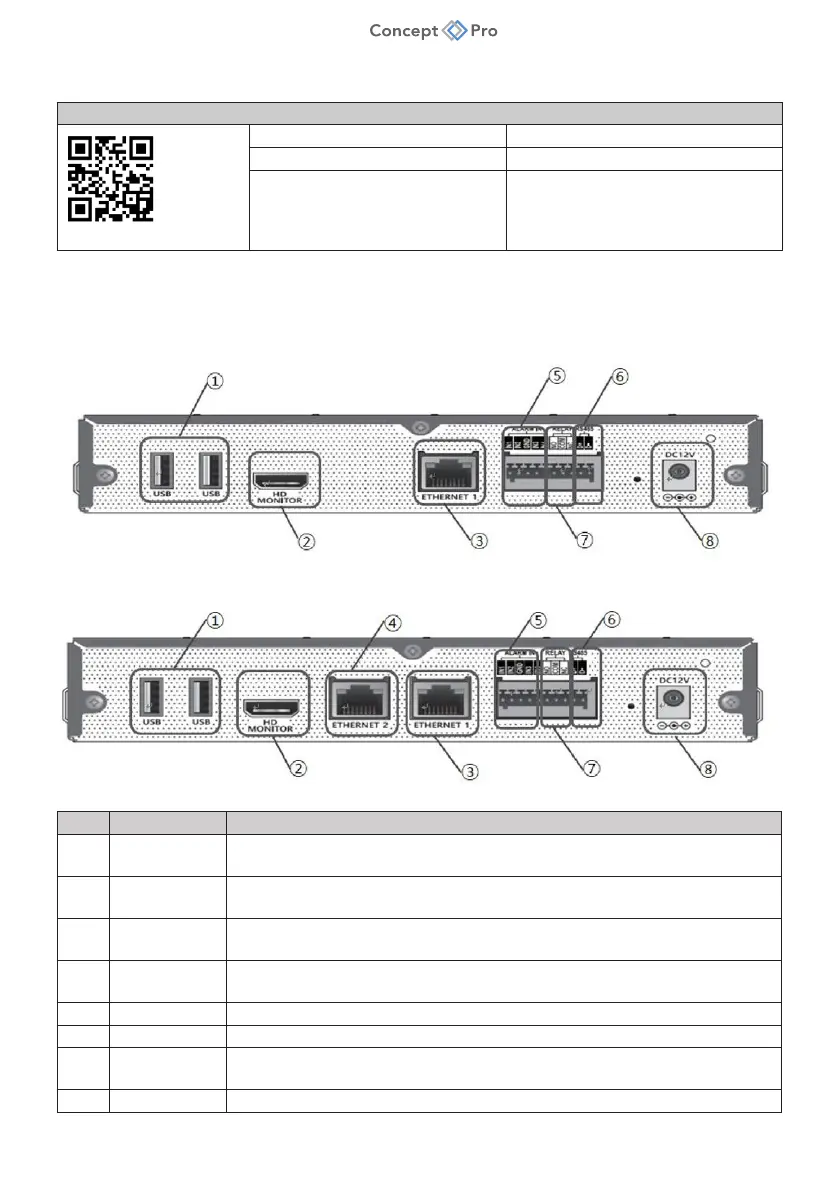

REAR PANEL
DL PLUS-4
DL PLUS-8 & DL PLUS-16
No. Item Description
1 USB Universal Serial Bus (USB) ports for additional devices
(e.g., USB storage device for firmware upgrade).
2 HD MONITOR HDMI port for connection to monitor to view live video. Note: DL PLUS cannot
be configured locally.
3 ETHERNET 1 RJ-45 port for network connection. Allows DL PLUS device configuration,
interoperation with VMS, video recorder, and IP camera equipment.
4 ETHERNET 2 RJ-45 port for connecting IP cameras and other equipment in a separate
network environment.
5 ALARM IN Alarm input signal terminal for connection with alarm sensor equipment.
6 RELAY Alarm output relay terminal for connection with external alarm equipment.
7 RS485 RS-485 communication terminal for connection with external equipment
(e.g., access control equipment)
8 DC12V DC12V power input for included power supply adapter.
