53 | Modbus Installation

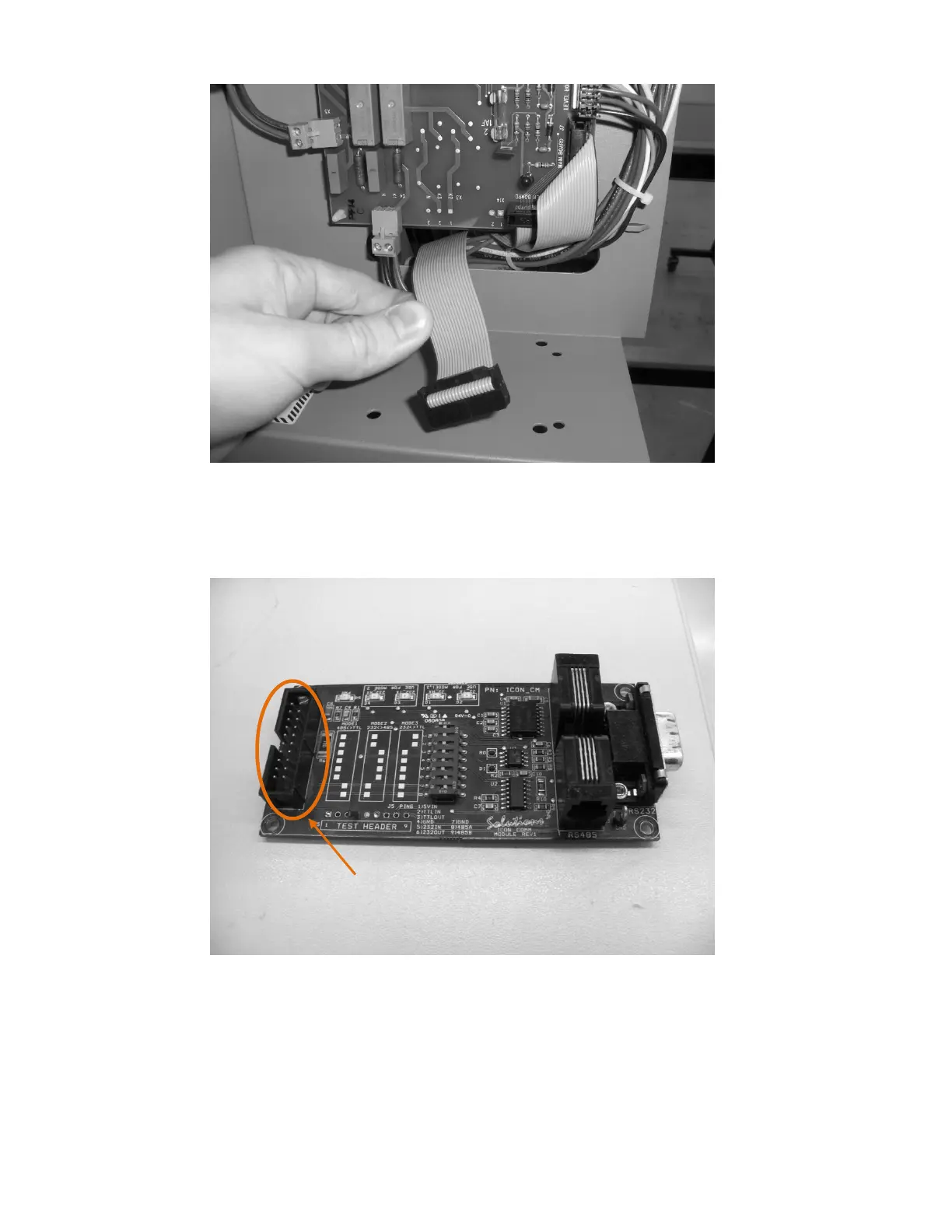

Figure 8: Routing of Ribbon Cable
4 Connect the ribbon cable 20 pin side to the Logic Card.
Figure 9: Pin connection for Ribbon cable
5 Configured dipswitch settings according to MODE1 printed on card (485<>TTL).
20 pin connection
