Modbus Installation | 54

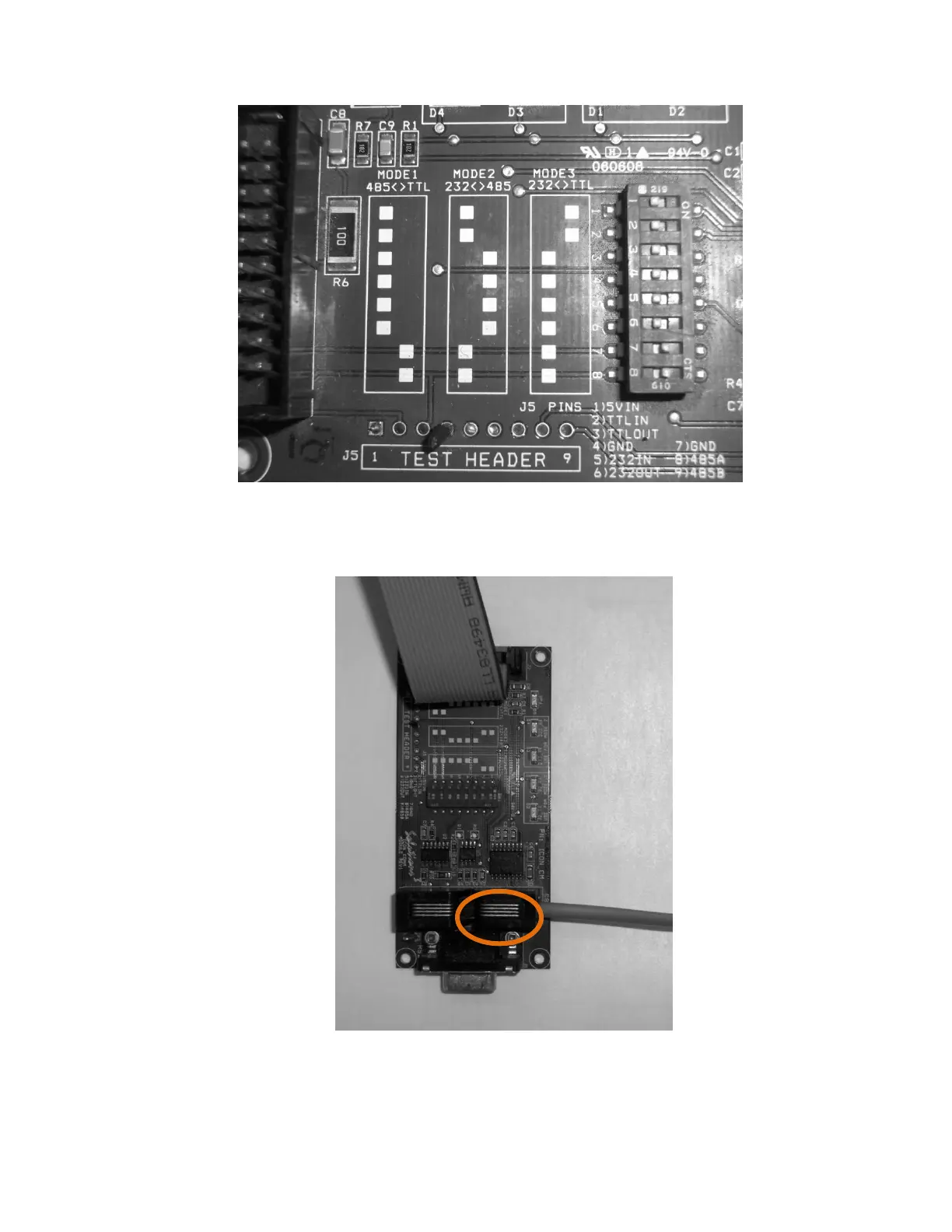

Figure 10: Dipswitch settings for Logic Card
6 Connect the RJ-11 cable to the corresponding jack on the logic card.
Figure 11: RJ-11 Jack Location on Logic Card
7 Mount logic card with nylon standoffs and screws to humidifier using the 4 pre-drilled
holes
