Installation
Do not begin the installation unless you have read the manual instruction carefully,
which contains information critical to the correct installation of your Fishfinder.
Packing list
Before you install the transducer to your bait boat, please check the packing list
below, and make sure you are not missing any items.

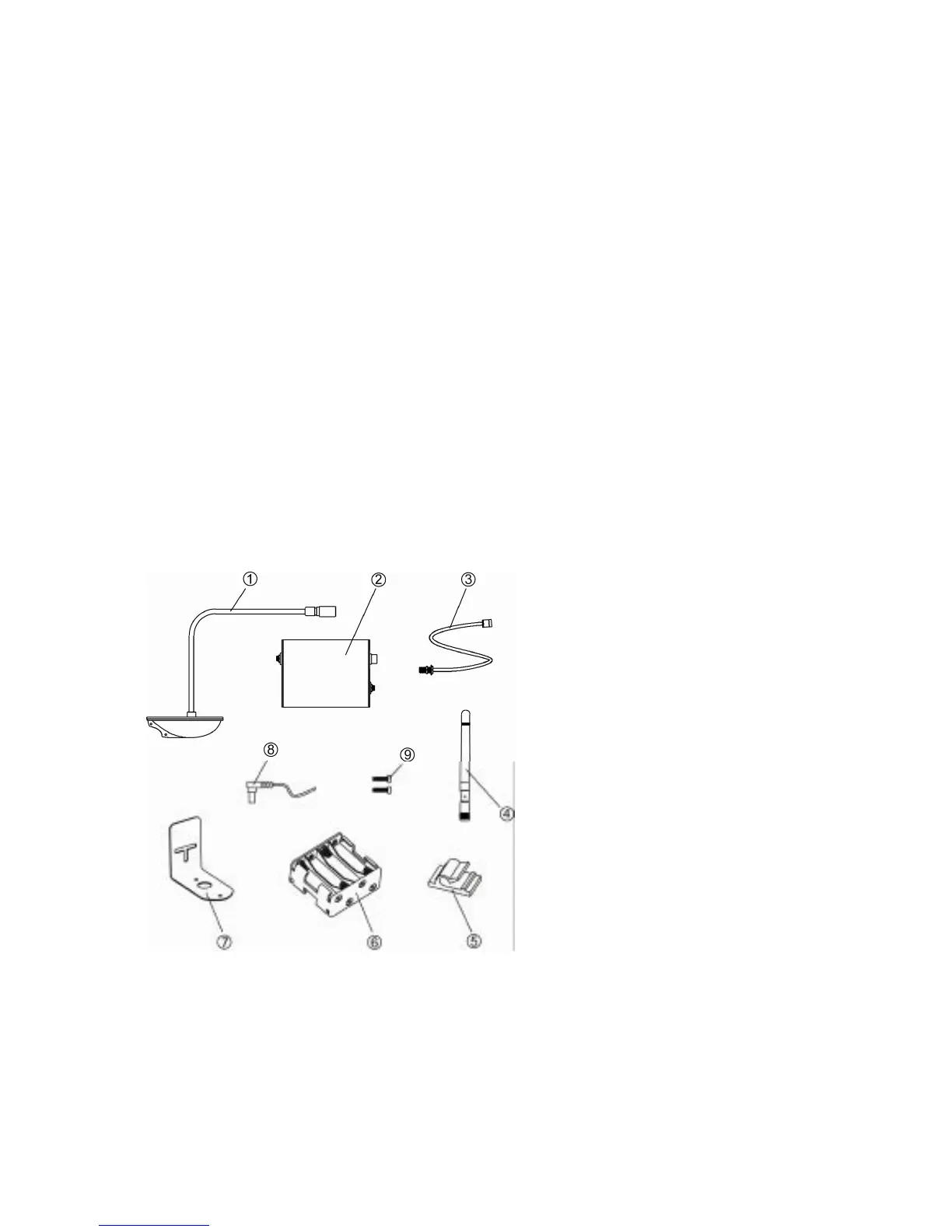

The packing list of Condor 260 Bait includes 2 parts as shown following:
1. RES Sensor
The electric control & sonar system enclosed by the dashed line are named RES
sensor.
1) A wireless remote sonar sensor
2) A controlling box
3) An antenna-extended-cable
4) Two antennas for mounting on
bait boat & sonar display
5) Two cable clip
6) A battery holder
7) A metal bracket to fix the
sensor
8) A power cable
9) Two screws
