Condor MDR 5-K - MDR 5 Pressure Diagrams and Setting Examples; MDR 5;5 Pressure Setting Diagram; Pressure Diagrams for MDR 5 Series

Page 2 of 2

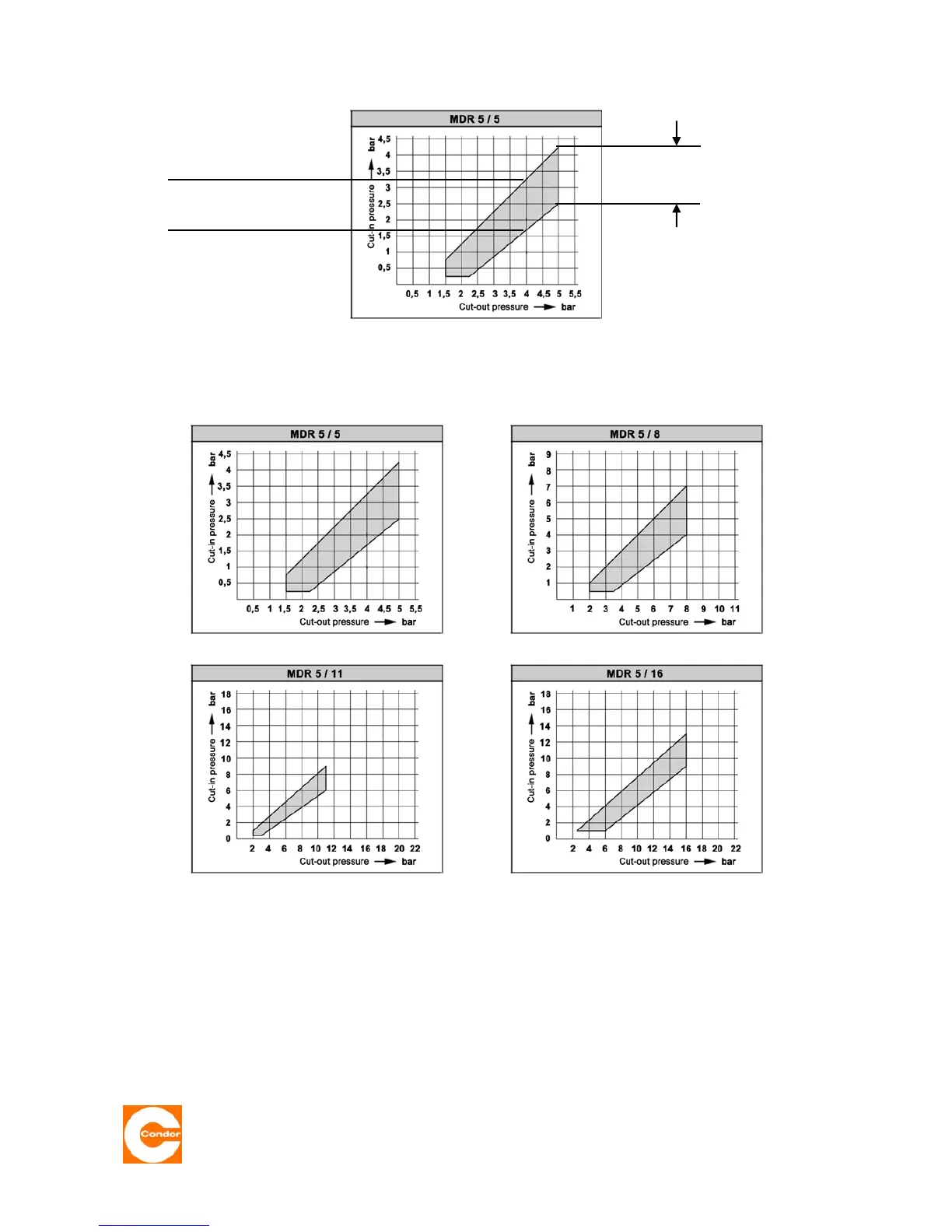

Example of a pressure setting using the MDR 5/5 pressure diagram
Pressure Diagrams MDR 5
02.11.2005
Condor Pressure Control GmbH
Warendorfer Straße 47 – 51
D-59320 Ennigerloh
Telefon: +49 (0) 25 87 / 89 – 0
Telefax: +49 (0) 25 87 / 89 - 140
info@condor-cpc.com
www.condor-cpc.com
3.2
max.
cut-in pressure
1.8
min.
cut-in pressure
Setting range off
the cut-in pressure
Example:
Cut-out pressure p
o
4 bar
Cut.in pressure p
u
between
1.8 and 3.2 bar possible
