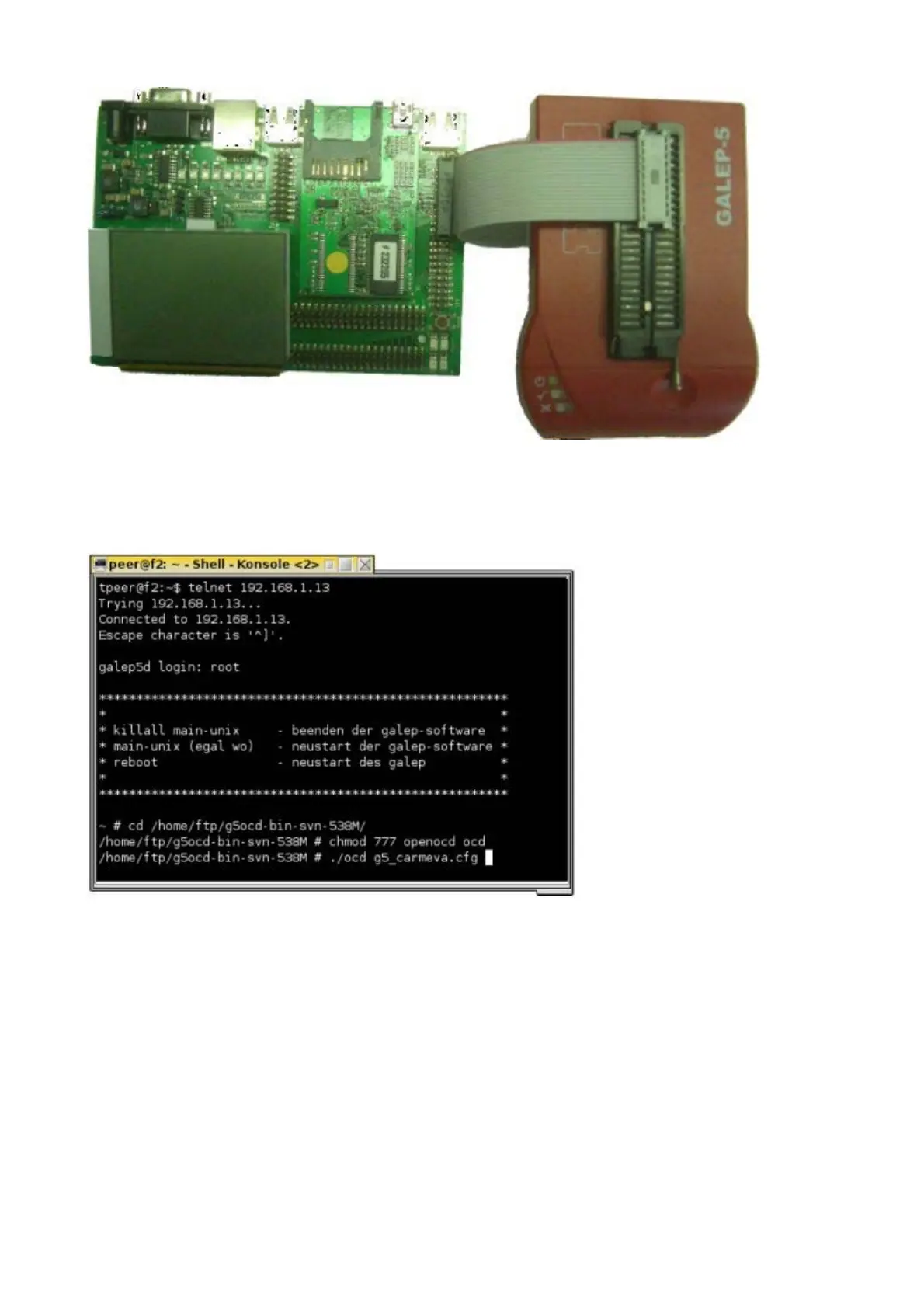

Fig: ARM&EVA connected through the OCD-JTAG-Cable20.
Start OpenOCD on GALEP
On GALEP-5 a Telnet server is running. Only the user “root” is valid. A password is not required.
fte
logging in, GALEP expects commands via Telnet. All programs that were transferred via FTP can be
found in the GALEP directory "/home/ftp". In the image above the following commands were already entered:
cd /home/ftp
chmod 777 ocd openocd
./ocd g5_carmeva.cfg
The last command starts the OpenOCD software. It can be terminated with [Ctrl+C] and anytime started
again. If the target system is found, a message like the following appears:
Fig: Log in via Telnet.
./ocd g5_carmeva.cfg
Open On-Chip Debugger 1.0 (2008-04-04-12:28) svn:538M
$URL: svn://svn.berlios.de/openocd/trunk/src/openocd.c $
Setting interface speed: No delay.
Assigning "TargetDetect"-> Socket pin 24
