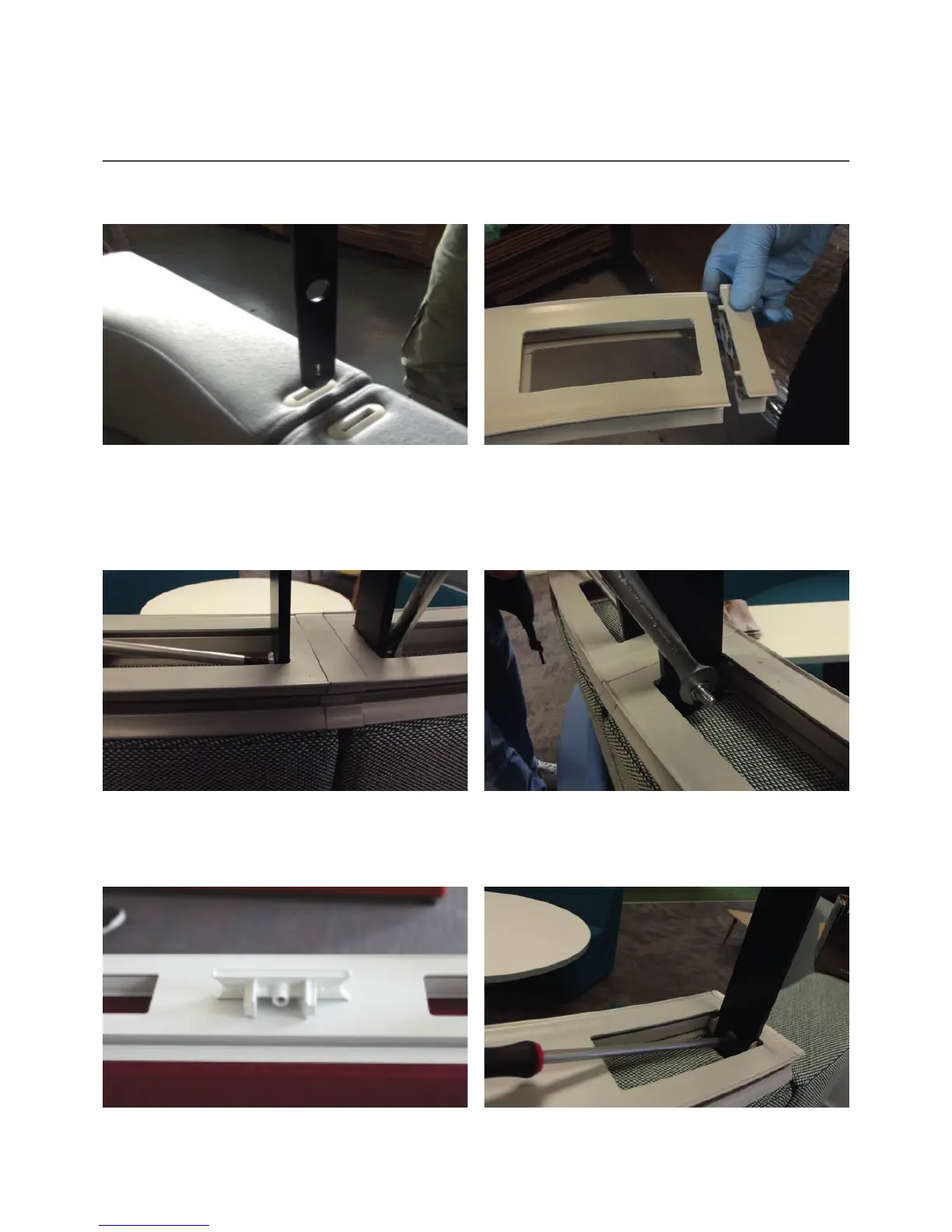

Insert the screen supports into the glides. Note that
the arrow on the support needs to point downwards.
When in position, the support will click into place.
When aligned loosely, pass a bolt through both
screen supports. The 20mm Workrail linking piece will
engage with the slots cut into the screen supports.
The end cap is secured by positioning the two prongs
into the screen support and aligning with the Workrail.
The end cap is secured in place using a short bolt,
supplied in the fixing kit. Being sure to engage the prongs
on the end cap with the slots in the screen support.
Secure this with a bolt and tighten to pull the
Workrails together.
Place the tool rail over the screen supports. Where
two Workrails are being joined insert a 20mm
Workrail linking piece.
Connecting modules together
Attaching the workrails
Hive Assembly
