Assembly Instructions
Tier: Angled Module
Components & Fixing Kit

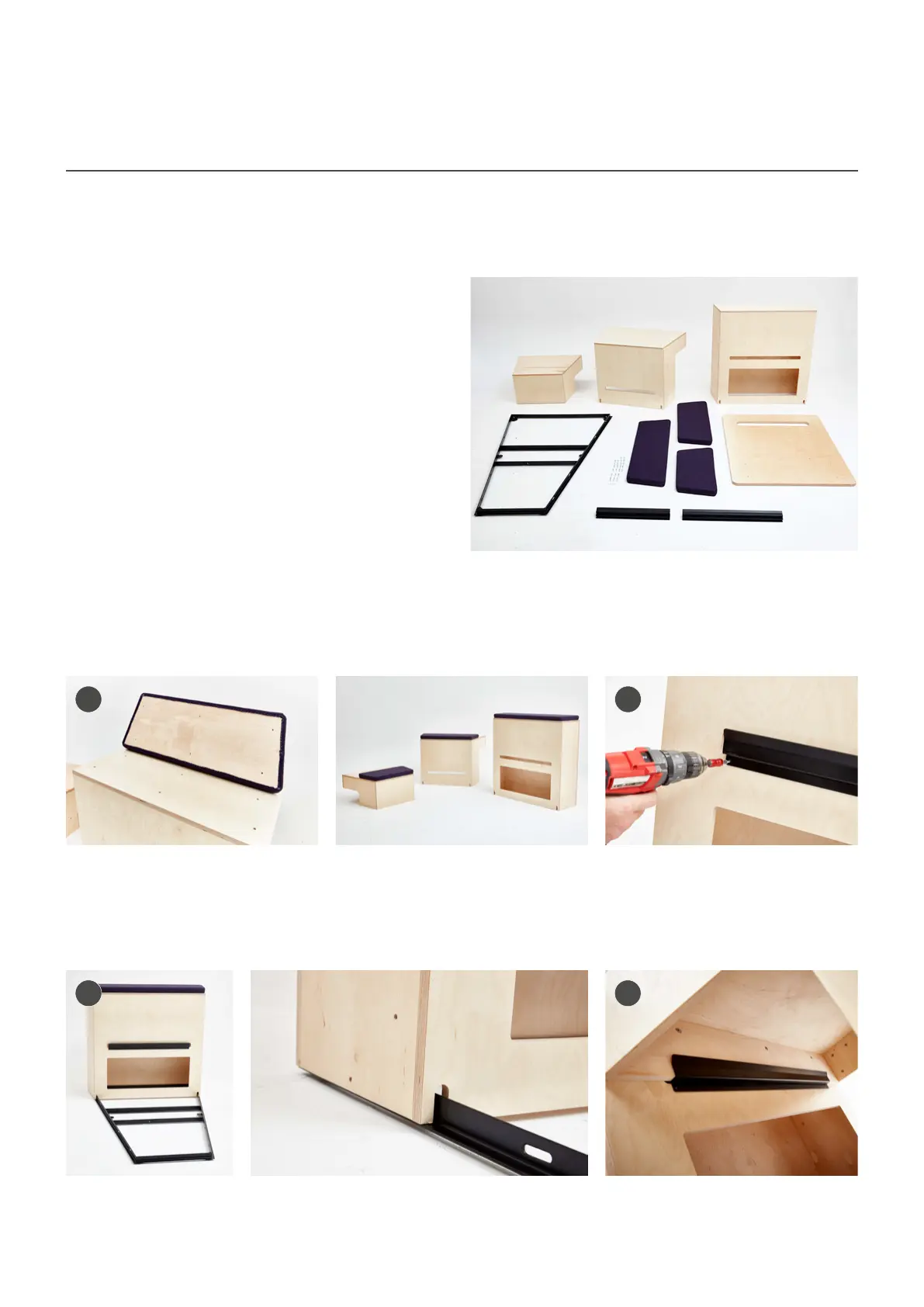

Tier Angled module requires at least 2 people to build and assemble. Tier Angled module will always be
supplied with the following components:
1. Face seat pads over the appropriate sized angled module. Each seat pad will line up with only wooden
module. Secure each seat pad in place with 6x M6x30 furniture bolts from underside of modules.
2. Connect 800mm metal bracket to small cut out on front of the rear angled module. Lift widest section of
metal bracket into cut-out halfway. Then drop the smallest run of the bracket onto the edge to secure and
then centralise. Use 3x woodscrews to secure in place. See step 5 for how brackets should be inserted.
1. Connect bench foot moulding (G) to side of frame in which the writing tablet turns off. Screw M5x20 CSK
(H) bolt into bench foot leveller and placement holes in tubing.
1 2
• Front angled module
• Central angled module
• Rear angled module
• 3x seat pads (of varying sizes)
• Angled metal under-frame
• 800mm metal bracket
• 600mm metal bracket
• Fixing kit
• M6x30 furniture bolts (seat pads)
• M6x40 furniture bolts
• Woodscrews (brackets)
If carpet tiles are specified, these will be additionally
supplied. They will need to be cut down on site and
secured with adhesive to Tier modules.
3. Once bracket is secured, lift the rear angled module onto the widest section of angled metal
under-frame, with the smallest cut-out facing forwards. Ensure that frame sits on top of cut out grooves
to secure module, as shown.
4. Lift the central angled module and place on 800mm bracket and angled module metal under-frame.
Ensure that frame sits on top of cut out grooves to secure module.
3 4
