Assembly Instructions
Tier: Straight Module
5

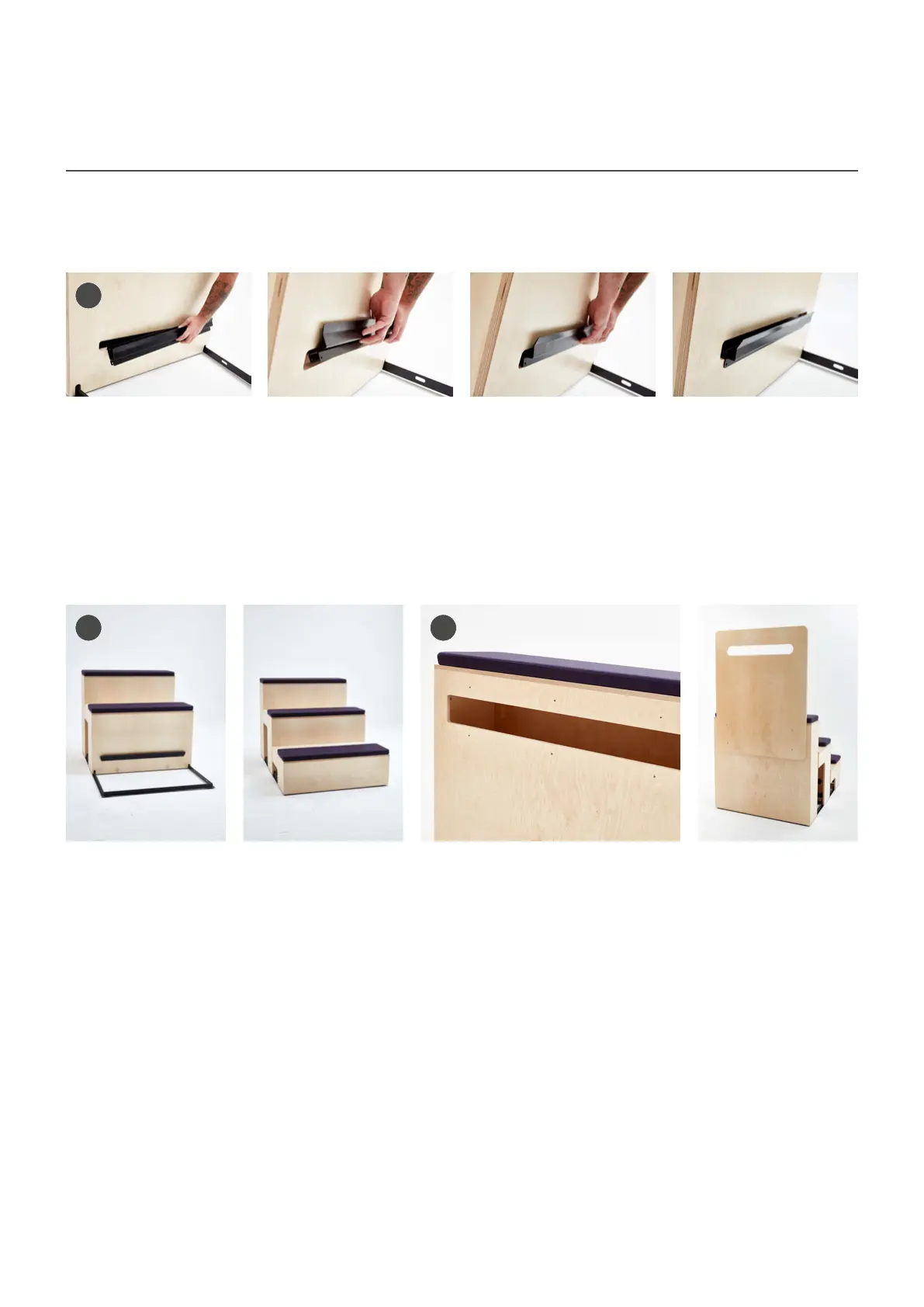

5. Insert second 1000mm bracket into small cut out on front of the central straight module by lifting widest
section of bracket within the cut-out halfway. Drop smallest ‘run’ onto the small cut-out so that it sits
secure. Centralise the bracket. Use 3x woodscrews to secure in place.
6. Lift the smaller front central module and place on 1000mm bracket and straight module metal support
frame. Ensure that frame sits under cut out grooves to secure module. All modules are now connected to
the frame.
Attaching back balustrade: If connecting a Tier Straight module to another module then do not attach
balustrade until these modules are connected together. Please see page 7 before returning to complete.
7. Locate and face back balustrade to the top of the Tier Straight module. Attach the back balustrade to
steps and secure with 6x M6x40 furniture bolts. Balustrade is now attached.
If carpet tiles are specified for Tier Angled module, they will need to be cut down and attached with adhesive
once complete configuration is connected.
6 7
