Connection Tubes Series - Tubes Bench Assembly; Tubes Bench Components and Fixing Kit; Tubes Bench Assembly Instructions

Assembly Instructions
Tubes Bench
Components & Fixing Kit

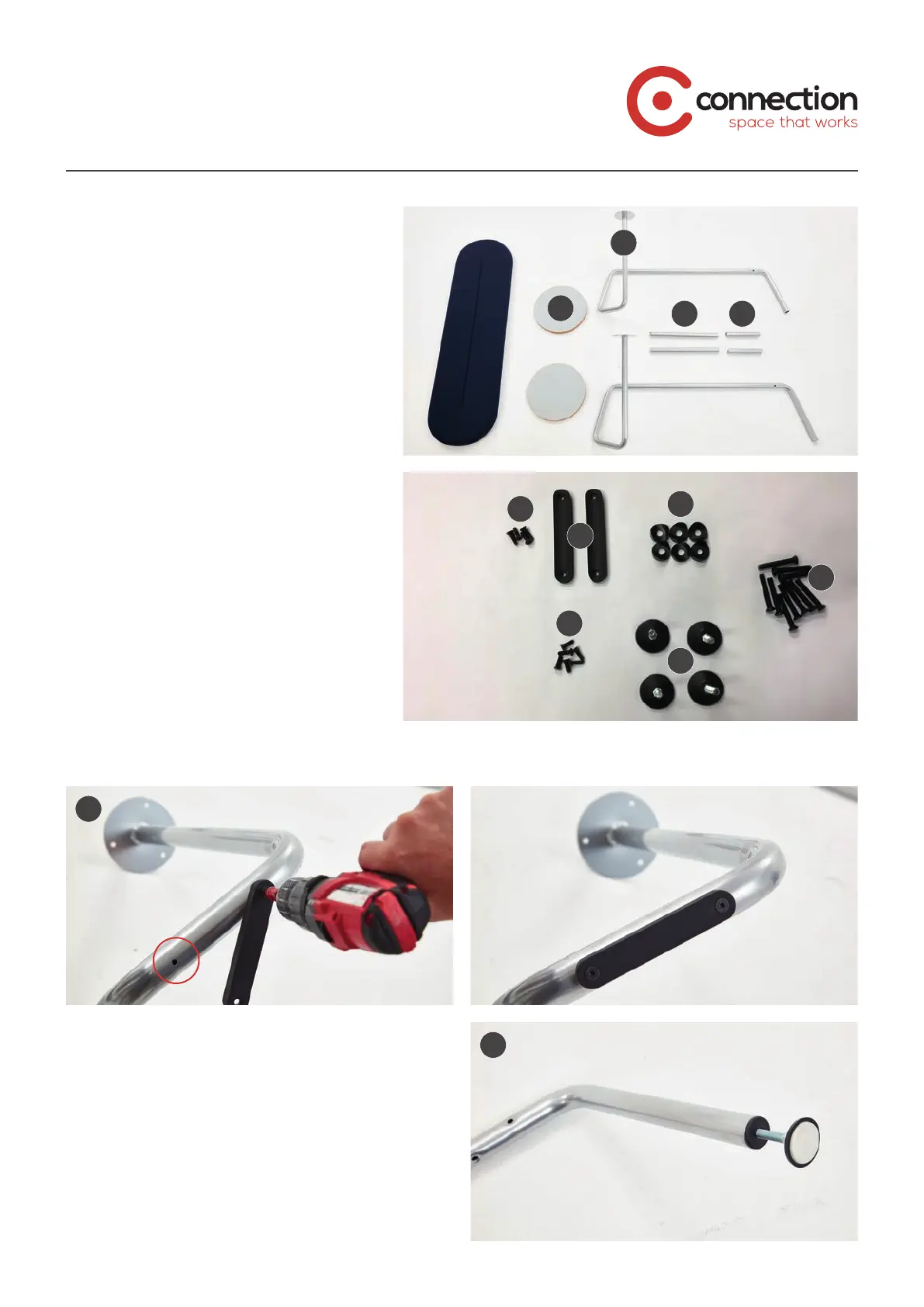

Tubes benches will always be supplied with
2 leg frames, 2 support rails, seat pad and
fixing kit.
If Tubes benches have been ordered with
writing tablet option then leg frames will
differ, as shown (A), and writing tablets will
be supplied (B).
Support rails for Tubes benches will vary
in size depending on bench size. Wide
benches will use large support rails (C). Slim
benches will use small support rails (D). You
will not receive both.
Fixing kit will come with all components in
plastic bag. Components will include:
E. M8x50 CSK bolt x 10
F. M6x16 CSK bolt x 6 – Tablets
G. Bench foot moulding x 2
H. M5x20 CSK bolt x 4
I. Half saddle washer x 6
J. M10 glide x 4
Please note, not all fixings will be required
depending on Tubes item purchased.
1. Connect bench foot moulding (G) to side of frame in which the writing tablet turns off. Screw M5x20 CSK
(H) bolt into bench foot leveller and placement holes in tubing.
A
B
C D
E
H
G
F
J
I
1
2
2. For any legs without a writing tablet, insert
adjustable M10 glide (J) into bung and screw until
level. This can be adjusted to match floor level
later on.
