Assembly Instructions
Tubes Bench

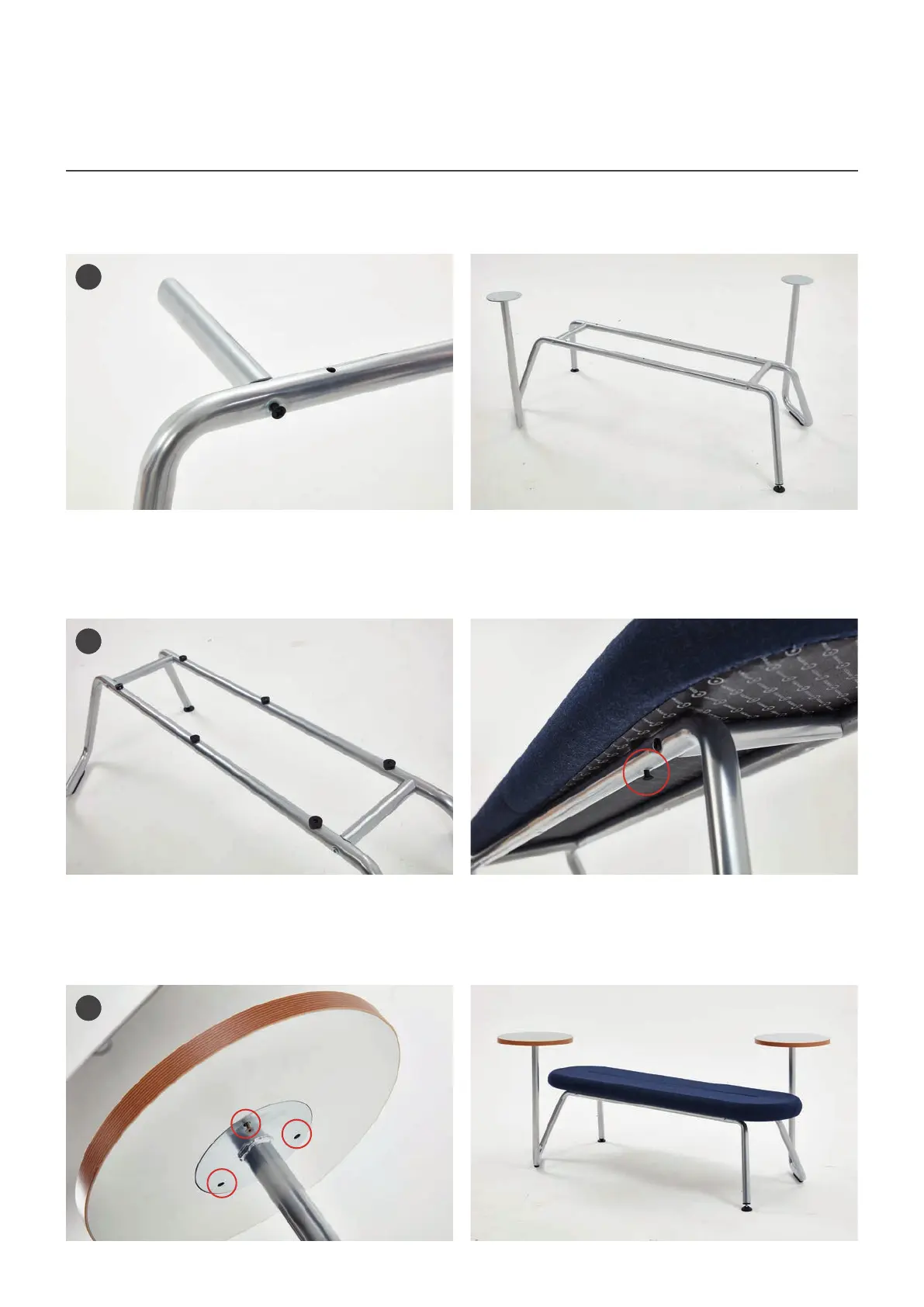

3. Connect 2 x support rails to one of the frames, with M8x50 CSK bolts (E). Face off second leg frame to
adjacent and add M8x50 CSK bolts (E) to connect. Tighten all bolts until counter sunk into tubing.
4. Face 6 x half saddle washers (I) onto tube frame. Place seat board above half saddle washers and
connect through underside of Tubes frame. Tighten all M8x50 CSK bolts (E) in place. Adjust M10 glides, if
necessary, at this stage to level out seating.
If no writing tablets are being added, then your Tubes bench is complete.
Attaching Writing Tablets (Optional)
5. Place tablets over metal place holders. Insert 3 x M6x16 CSK bolts (F) per tablet to secure. Repeat for
second writing tablet if necessary.
Your Tubes bench is now complete.
