Assembly Instructions
Tubes Table

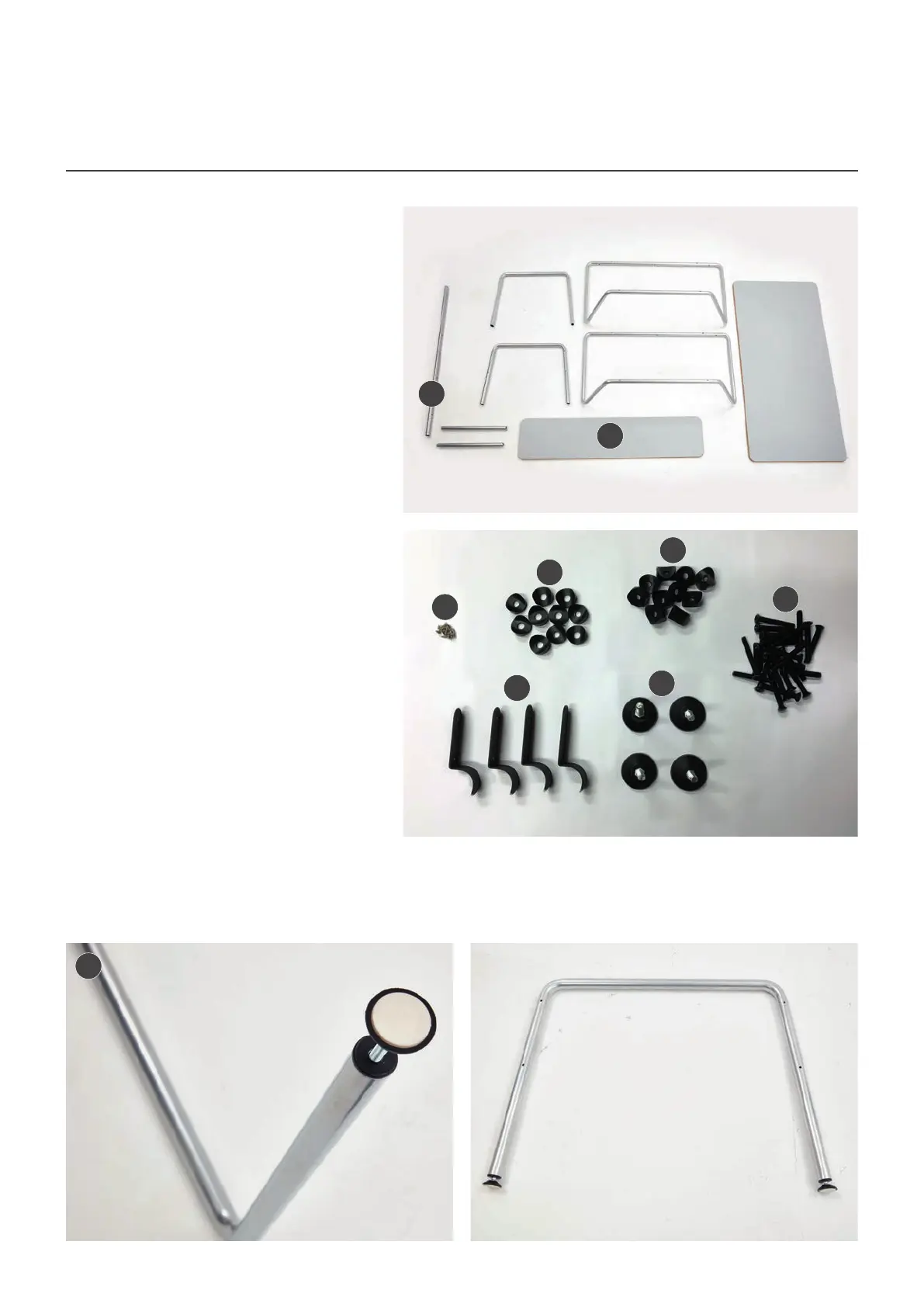

Components & Fixing Kit
Tubes tables will always be supplied with 2 leg
frames, 2 table support frames, table top, 2
table top support rails and fixing kit.
If Tubes table have been ordered with
undershelf option then additional undershelf
table top (A) and undershelf support rail (B).
Undershelf brackets (G) will be supplied to
connect together, as shown in fixing kit.
Fixing kit will come with all components in
plastic bag. Components will include:
C. M8x50 CSK bolt x 24
D. Half saddle washer x 10
E. Double saddle washer x 10
F. M10 glide x 4
G. Shelf bracket x 4
H. Wood screw x 8
Please note, not all fixings will be required
depending on Tubes item purchased.
1. Screw insert adjustable M10 glides (D) into bung in leg frame and screw until level. Complete this on all 4 legs.
This can be adjusted to match floor level later on.
When connecting table support frames, table top support rails and table legs, ensure that screws are hand
tight only, to start.
1
C
A
D
B
E
F
G
H
