Conquer 530-TRNRFLUID - Attaching the Resistance Unit; Securing the Resistance Bracket; Fastening the Resistance Unit

Product name: Conquer Fluid Resistance Bicycle
Trainer Indoor Exercise Bike
SKU: 530-TRNRFLUID
EMAIL: customercare@conquerequipment.com
TEL: 855-349-4327
help.ConquerEquipment.com
EMAIL: customercare@conquerequipment.com WEB: help.conquerequipment.com TEL: 855-349-4327

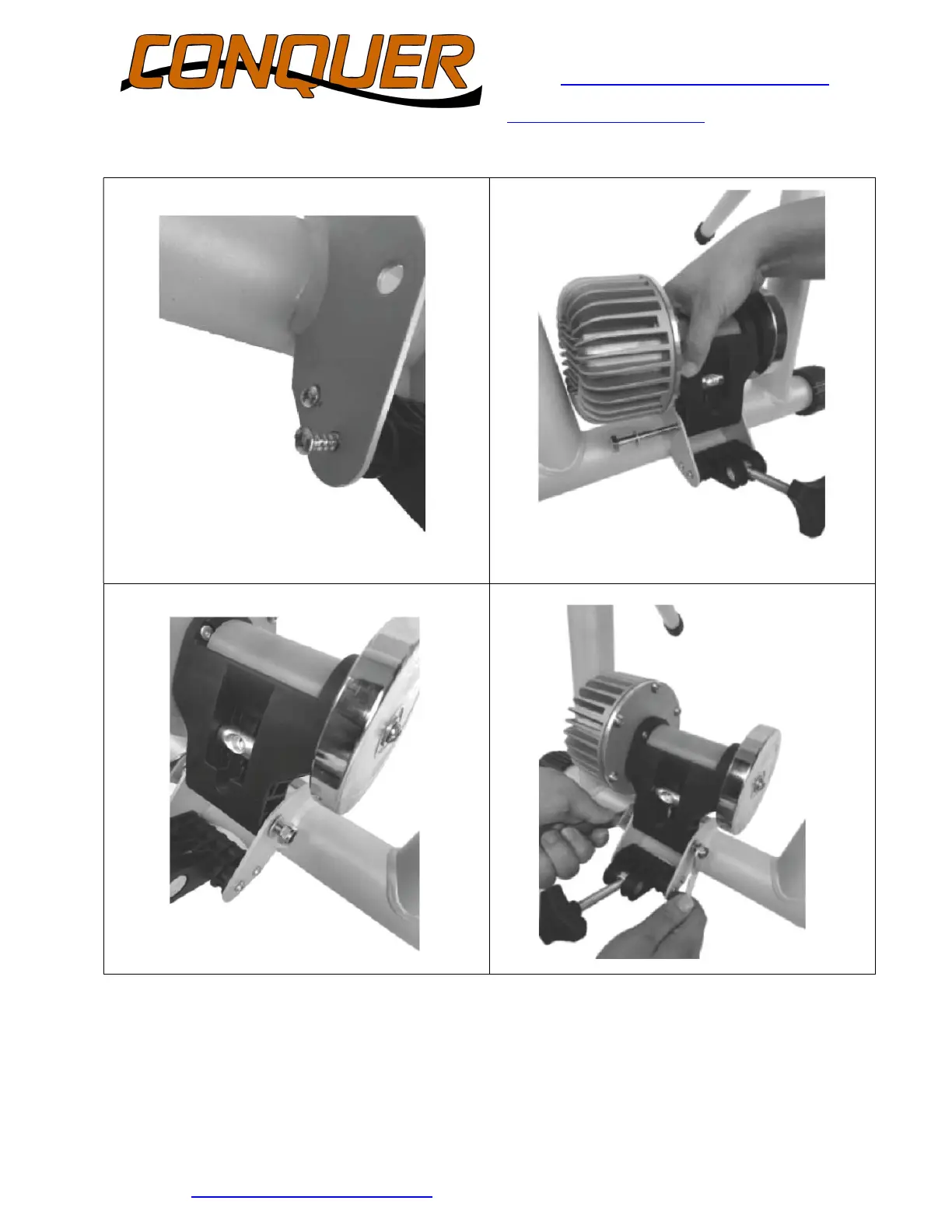

fig.1 fig. 2
fig. 3
fig. 4
3. Use 4 screws/tools (E) to affix resistance knob bracket to cycling trainer frame (fig. 1).
4. Thread bolt (part C) through frame/bracket and fluid resistance unit (fig. 2), then hand
thread nut (part D) to fasten (fig. 3). Use wrench (E) to tighten (fig. 4).
