Model XCA 700

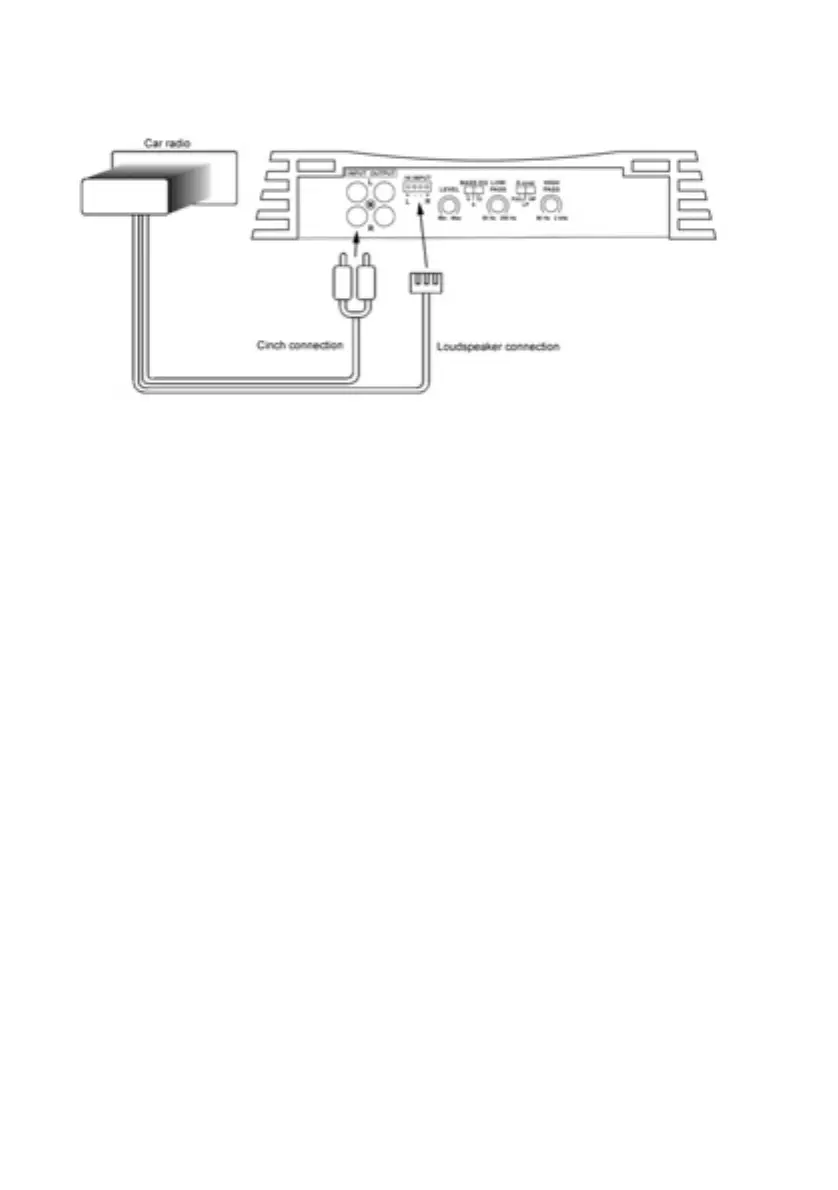

Connection via the cinch inputs
Connect the cinch outputs of your car
radio to the cinch connections INPUT (7)
of the amplifier.
Connection via the loudspeaker inputs
Plug the delivered loudspeaker connec-
tion cable into the connection HIGH
INPUT(9) of the amplifier.
Connect the loudspeaker outputs of
your car radio to the terminals of the
loudspeaker connection cable.
Observe the coloured right-left marking
of the cinch connections:
white or black > left
red > right
L+ connection > left positive loudspea-
ker output
L- connection > left negative loudspea-
ker output
R- connection > right negative louds-
peaker output
R+ connection > right positive louds-
peaker output
