Installation instructions en
27
3.

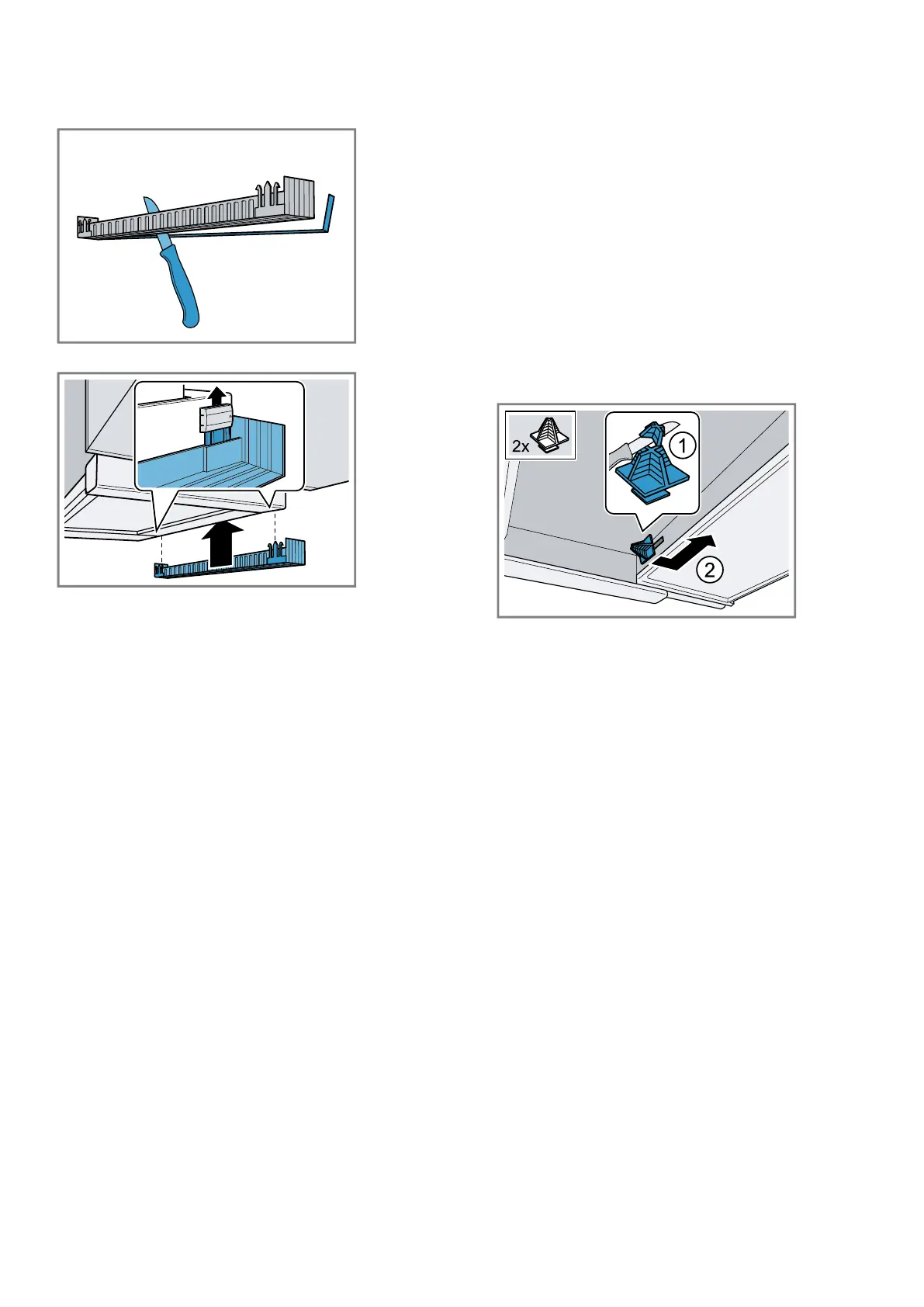

Adjust the wall closing strip to the clearance
between the appliance and the wall.
4.
Snap the wall closing strip into the holders.
5.
Fit the grease filters.
6.
Establish the pipe connection.
7.
Establish the electrical connection.
Note
You can conceal the housing of the extractor hood
within the upper cabinet. In doing so, observe the
following:
¡ The intermediate floor must not rest on the housing.
¡ The front panel must not be secured to the housing.
¡ Access to the housing must remain possible in or-
der to change the filter and for after-sales service.
Changing the filter pull-out's limit stop
On some versions of the appliance, the limit stop for
the filter pull-out can be changed. Spacers are included
with these appliances in order to set the appliance's
handle strip so that it is flush with the fitted unit.
1.
Pull the filter pull-out towards the front.
2.
Shorten the spacers to the required dimension and
insert them into the slot specified.
