Connection Examples

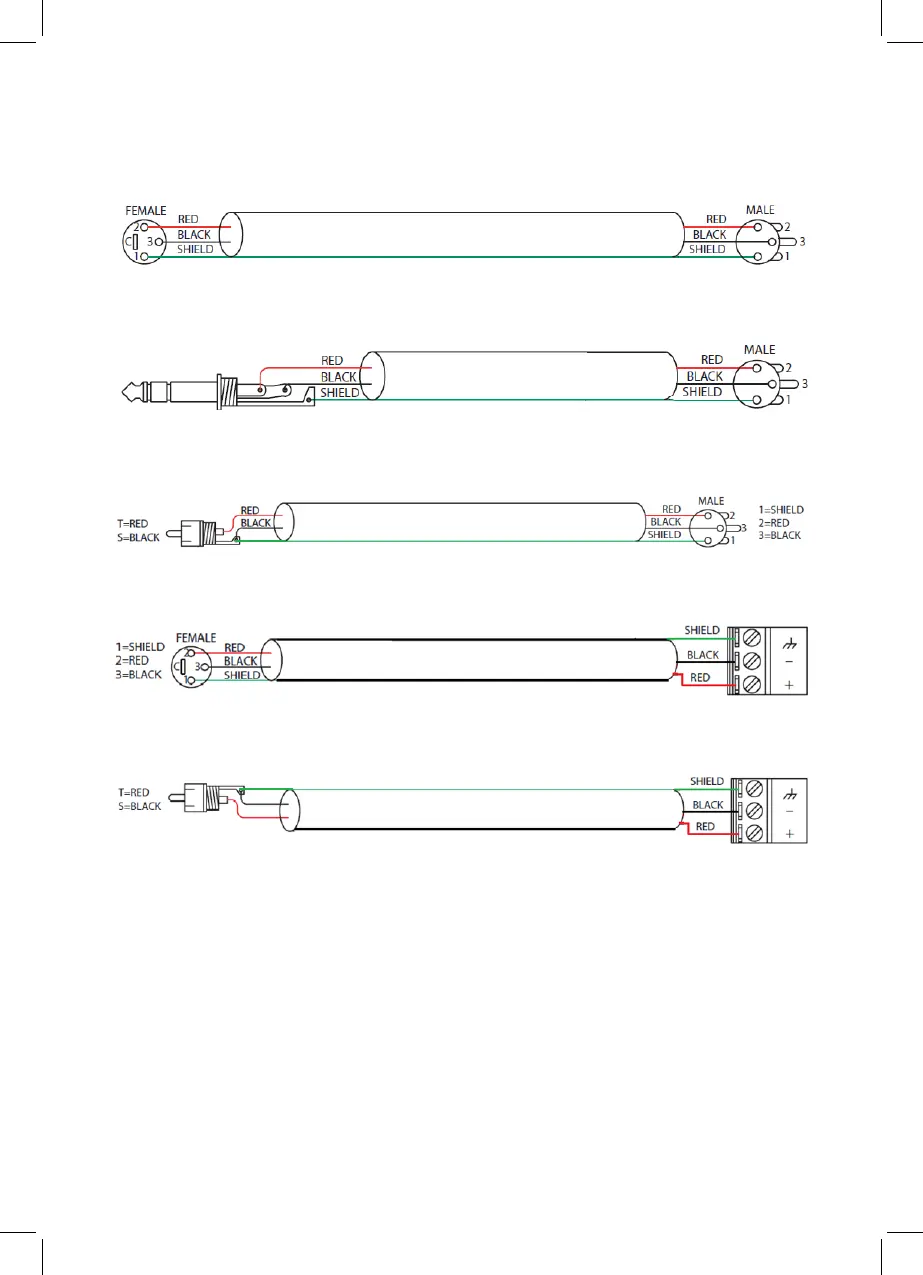

XLR to XLR (line)
TRS to XLR (line)
Unbalanced to XLR
XLR to Euroblock (balanced)
Unbalanced to Euroblock
2-CONDUCTOR SHIELDED CABLE
2-CONDUCTOR SHIELDED CABLE
2-CONDUCTOR SHIELDED CABLE
2-CONDUCTOR SHIELDED CABLE
2-CONDUCTOR SHIELDED CABLE
