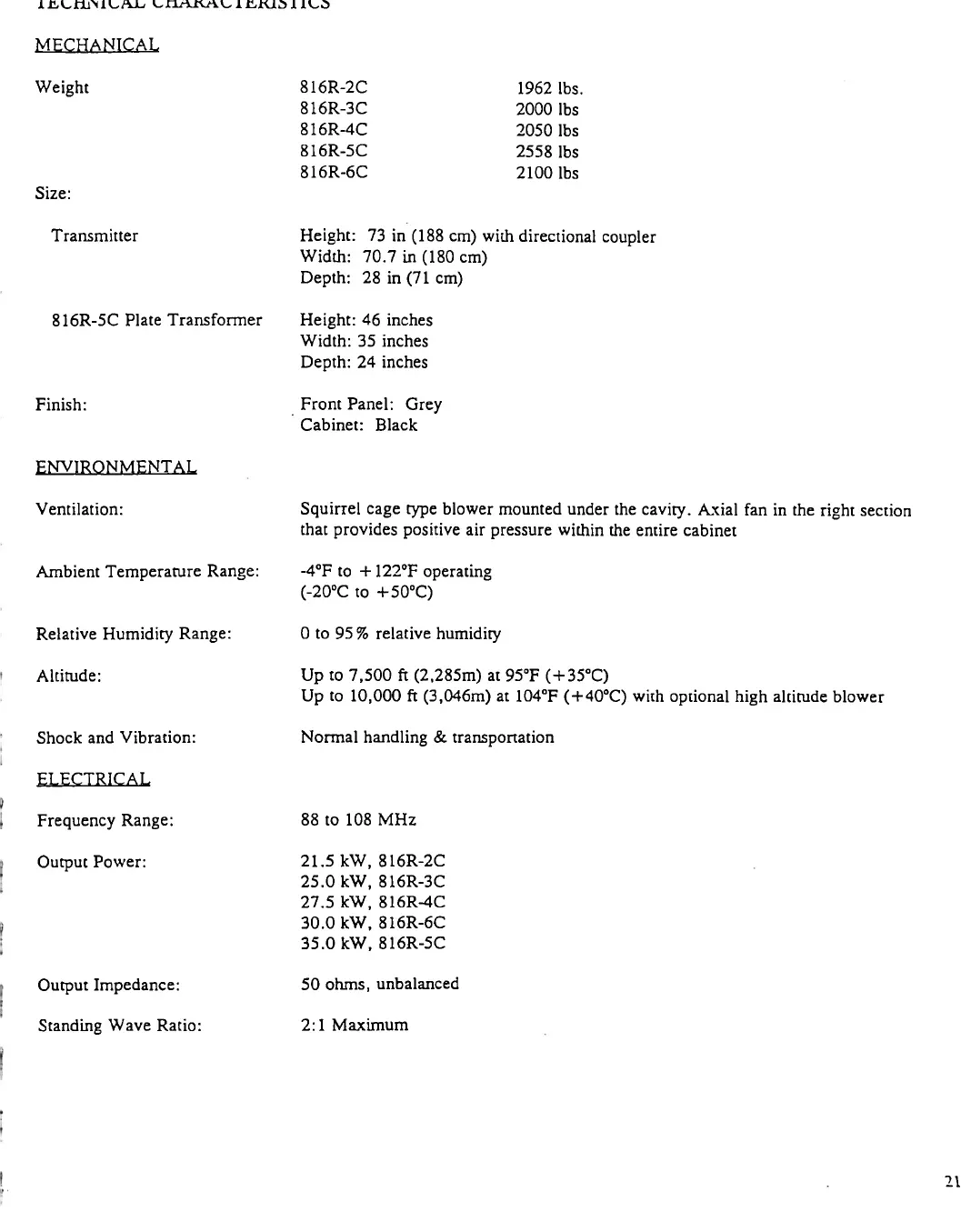

ItCJtliNlUAJL CJtlAJKAeilLKjLiJUCd
MECHANICAL
Weight
816R-2C 1962 lbs.
816R-3C 2000 lbs
816R-4C 2050 lbs
816R-5C 2558 lbs
816R-6C 2100 lbs
Size:
Transmitter
Height: 73 in (188 cm) with directional coupler
Width: 70.7 in (180 cm)
Depth: 28 in (71 cm)
816R-5C Plate Transformer
Height: 46 inches
Width: 35 inches
Depth: 24 inches
Finish:
Front Panel: Grey
Cabinet: Black
ENVIRONMENTAL
Ventilation:
Squirrel cage type blower mounted under the cavity. Axial fan in the right section
that provides positive air pressure within the entire cabinet
Ambient Temperature Range: -4°F to + 122°F operating
(-20°C to +50°C)
Relative Humidity Range:
0 to 95 % relative humidity
Altitude:
Up to 7,500 ft (2,285m) at 95°F (+35°C)
Up to 10,000 ft (3,046m) at 104°F ( + 40°C) with optional high altitude blower
Shock and Vibration:
Normal handling & transportation
ELECTRICAL
Frequency Range:
88 to 108 MHz
Output Power:
21.5 kW, 816R-2C
25.0 kW, 816R-3C
27.5 kW, 816R-4C
30.0 kW, 816R-6C
35.0 kW, 816R-5C
Output Impedance:
50 ohms, unbalanced
Standing Wave Ratio:
2:1 Maximum
21
