Continental Electronics 816R - Power Source and Line Variations; Modulation and Noise Specifications

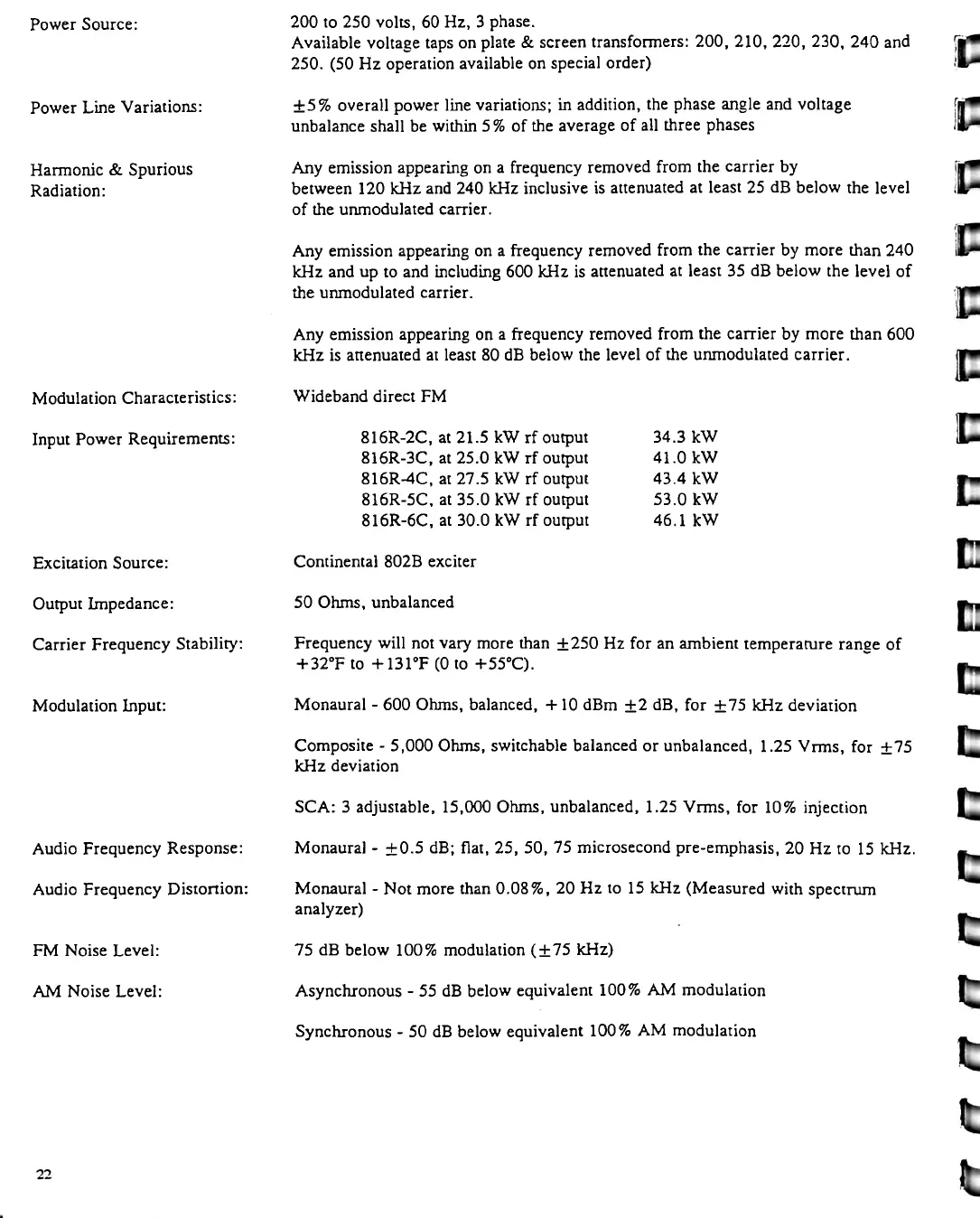

Power Source:
200 to 250 volts, 60 Hz, 3 phase.
Available voltage taps on plate & screen transformers: 200, 210, 220, 230, 240 and
250. (50 Hz operation available on special order)
Power Line Variations:
±5% overall power line variations; in addition, the phase angle and voltage
unbalance shall be within 5 % of the average of all three phases
Harmonic & Spurious
Radiation:
Any emission appearing on a frequency removed from the carrier by
between 120 kHz and 240 kHz inclusive is attenuated at least 25 dB below the level
of the unmodulated carrier.
Any emission appearing on a frequency removed from the carrier by more than 240
kHz and up to and including 600 kHz is attenuated at least 35 dB below the level of
the unmodulated carrier.
Any emission appearing on a frequency removed from the carrier by more than 600
kHz is attenuated at least 80 dB below the level of the unmodulated carrier.
Modulation Characteristics:
Wideband direct FM
Input Power Requirements:
816R-2C, at 21.5 kW rf output 34.3 kW
816R-3C, at 25.0 kWrf output 41.0 kW
816R-4C, at 27.5 kW rf output 43.4 kW
816R-5C, at 35.0 kW rf output 53.0 kW
816R-6C, at 30.0 kW rf output 46.1 kW
Excitation Source:
Continental 802B exciter
Output Impedance:
50 Ohms, unbalanced
Carrier Frequency Stability:
Frequency will not vary more than ±250 Hz for an ambient temperature range of
+ 32°F to +131°F (0 to +55°C).
Modulation Input:
Monaural - 600 Ohms, balanced, +10 dBm ±2 dB, for ±75 kHz deviation
Composite - 5,000 Ohms, switchable balanced or unbalanced, 1.25 Vrms, for ±75
kHz deviation
SCA: 3 adjustable, 15,000 Ohms, unbalanced, 1.25 Vrms, for 10% injection
Audio Frequency Response:
Monaural - ±0.5 dB; flat, 25, 50, 75 microsecond pre-emphasis, 20 Hz to 15 kHz.
Audio Frequency Distortion:
Monaural - Not more than 0.08%, 20 Hz to 15 kHz (Measured with spectrum
analyzer)
FM Noise Level:
75 dB below 100% modulation (±75 kHz)
AM Noise Level:
Asynchronous - 55 dB below equivalent 100% AM modulation
Synchronous - 50 dB below equivalent 100% AM modulation
