Control Chief TeleChief TM2000 - Installation Procedure; Radio Schematics

TELECHIEF
®
SERIES TM2000 / TM4000 / TM6000 OWNER’S MANUAL

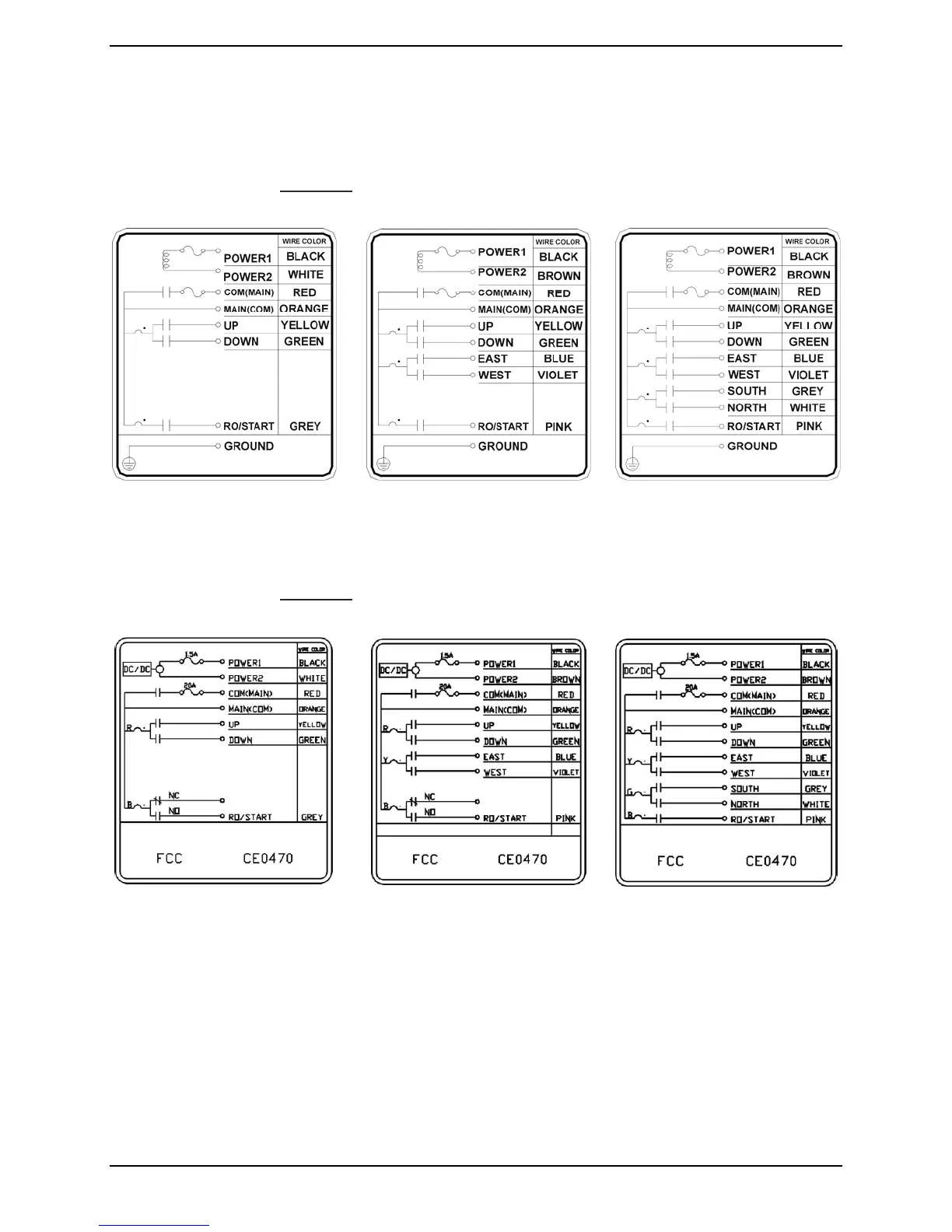

4.3.1 Radio Schematics
AC Models
TM2000 TM4000 TM6000
4-button wiring schematic 6-button wiring schematic 8-button wiring schematic
DC Models
TM2000 TM4000 TM6000
4-button wiring schematic 6-button wiring schematic 8-button wiring schematic
