TELECHIEF
®
SERIES TM2000 / TM4000 / TM6000 OWNER’S MANUAL

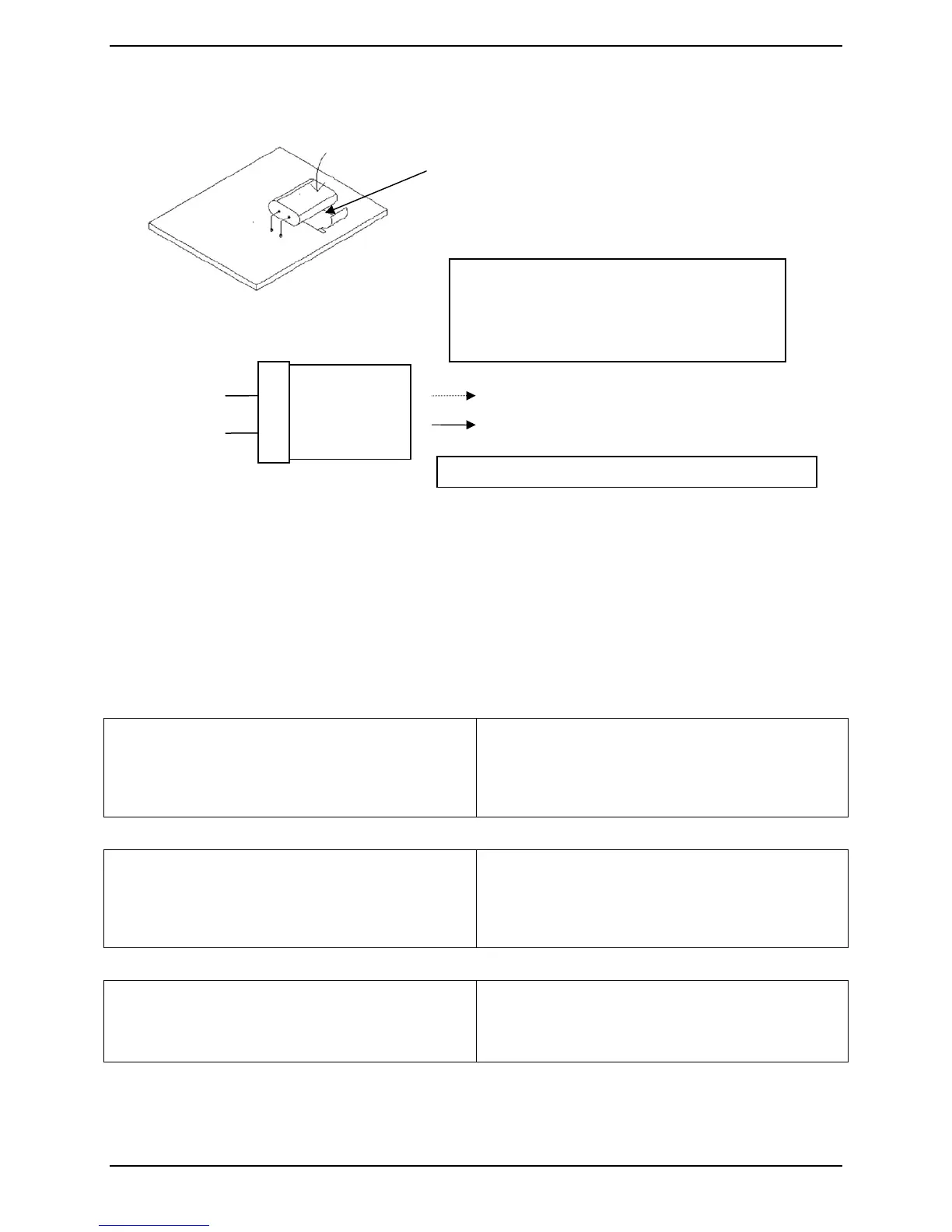

5. Add dot of RTV to clip and press the new crystal down into the socket, bending the pins.
95-00-0-036 Rev D 12 Control Chief Corporation
7.0 Function Settings
The TeleChief
®
Series offers the following function settings in the transmitter:
Momentary
ON-OFF
Maintained
Interlocked
By default they are set in an interlocked momentary mode. TeleChief
®
Series radios can be custom programmed at
the factory based on requirements and specific applications. Please contact your distributor for more information.
8.0 Specifications
8.1 General
1. Enclosure: IP65
2. Structure: Glass Fiber/Nylon
3. Operating Temperature: -45° ~ +80° C
-50° ~ +175° F
4. Relay: 10A/250VAC (AC Power);
15A/12VDC (DC Power)
5. ID Code: 32 bit (Greater than 4 Billion Unique Codes
6. Hamming distance > 4 bits
7. Static > 15KV
8. Remote ID Code Setting
9. Operating range: up to 328 ft (100 meters)
8.2 Transmitter
1. L x W x H: 4.72 x 2.17 x 1.00 in.
(120 x 55 x 25 mm)
2. Weight: 5.47 oz. (155g) (w/ batteries)
3. Uses 2 AA alkaline batteries
4. Low power indicator (LED flash red
5. Pushbutton jammed detector
6. Shock resistance
7. Output power < 4mW
8. Normal power consumption : 10 mA
9. Sleep mode consumption : < 1 µA
10. Modulation: FM
8.3 Receiver
1. L x W x H: 6.34 x 2.91 x 2.05
(161 x 74 x 52 mm)
2. Weight: 2.43 lbs. (1.1 kg) (without cable)
3. AC type: 48/110, 110/220, 220/380VAC
DC type: 12V~24VDC
4. Sensitivity: approx. -105dBm
5. Shock resistant design
6. Four independent common lines (U/D, E/W, S/N,RO)
Dot of RTV.
Attention: The frequency is different when
plugging the same crystal into the transmitter or
receiver.
For example:
T = 311 MHz
Frequency for transmitting is 311 MHz
R = 321.7 MHz
Frequency for receiving is 321.7 MHz
Contact your distributor for different matched crystal sets.
