Control Techniques Commander SE SE2D200220 User Manual

Commander SE User Guide 8
Issue Number 8 www.controltechniques.com

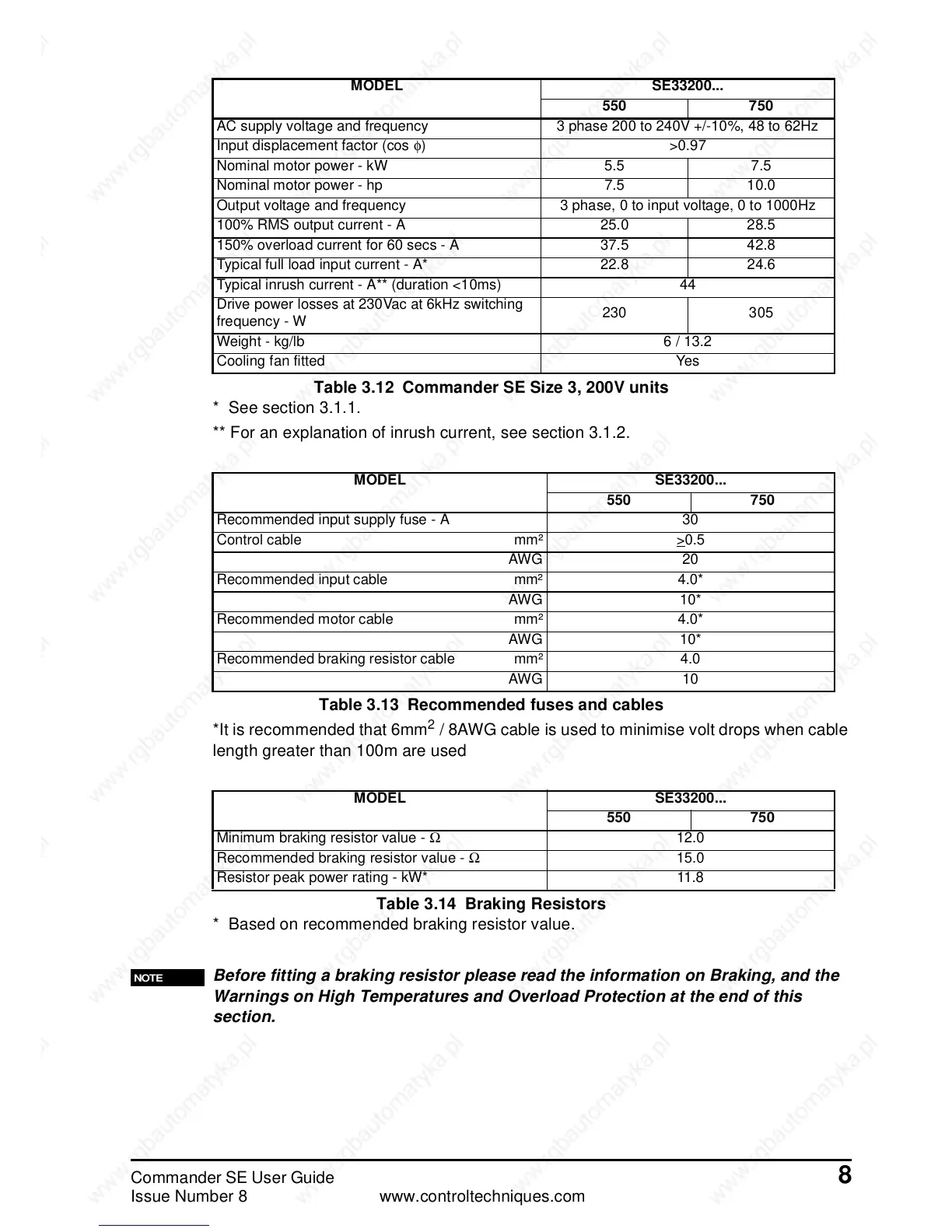

Table 3.12 Commander SE Size 3, 200V units
* See section 3.1.1.
** For an explanation of inrush current, see section 3.1.2.
Table 3.13 Recommended fuses and cables
*It is recommended that 6mm
2
/ 8AWG cable is used to minimise volt drops when cable
length greater than 100m are used
Table 3.14 Braking Resistors
* Based on recommended braking resistor value.
Before fitting a braking resistor please read the information on Braking, and the
Warnings on High Temperatures and Overload Protection at the end of this
section.
MODEL SE33200...
550 750
AC supply voltage and frequency 3 phase 200 to 240V +/-10%, 48 to 62Hz
Input displacement factor (cos φ)>0.97
Nominal motor power - kW 5.5 7.5
Nominal motor power - hp 7.5 10.0
Output voltage and frequency 3 phase, 0 to input voltage, 0 to 1000Hz
100% RMS output current - A 25.0 28.5
150% overload current for 60 secs - A 37.5 42.8
Typical full load input current - A* 22.8 24.6
Typical inrush current - A** (duration <10ms) 44
Drive power losses at 230Vac at 6kHz switching
frequency - W
230 305
Weight - kg/lb 6 / 13.2
Cooling fan fitted Yes
MODEL SE33200...
550 750
Recommended input supply fuse - A 30
Control cable mm² >
0.5
AWG 20
Recommended input cable mm² 4.0*
AWG 10*
Recommended motor cable mm² 4.0*
AWG 10*
Recommended braking resistor cable mm² 4.0
AWG 10
MODEL SE33200...
550 750
Minimum braking resistor value - Ω 12.0
Recommended braking resistor value - Ω 15.0
Resistor peak power rating - kW* 11.8
NOTE
