33 Commander SE User Guide
www.controltechniques.com Issue Number 8

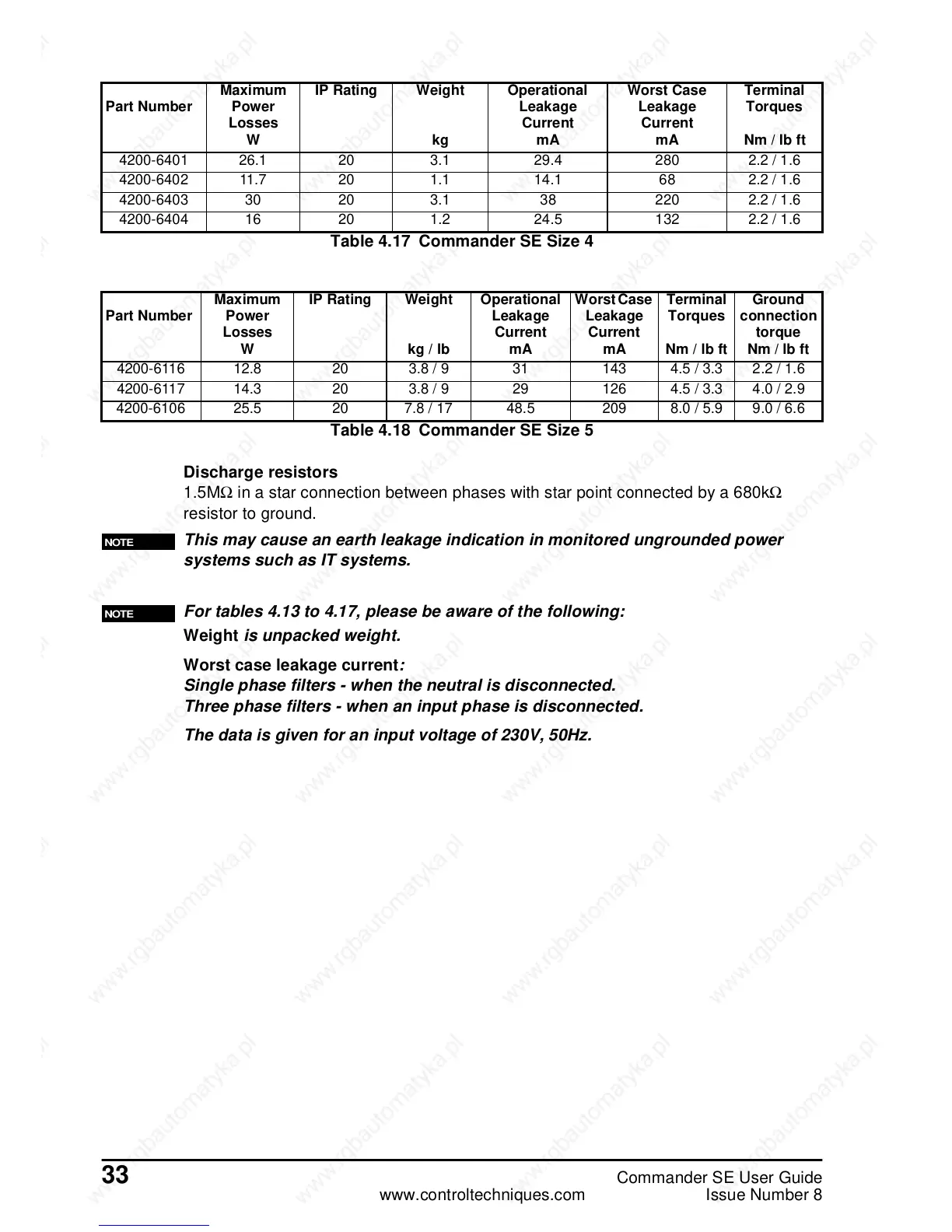

Table 4.17 Commander SE Size 4
Table 4.18 Commander SE Size 5
Discharge resistors
1.5MΩ in a star connection between phases with star point connected by a 680kΩ
resistor to ground.
This may cause an earth leakage indication in monitored ungrounded power
systems such as IT systems.
Fortables4.13to4.17,pleasebeawareofthefollowing:
Weight is unpacked weight.
Worst case leakage current:
Single phase filters - when the neutral is disconnected.
Three phase filters - when an input phase is disconnected.
The data is given for an input voltage of 230V, 50Hz.
Part Number
Maximum
Power
Losses
W
IP Rating Weight
kg
Operational
Leakage
Current
mA
Worst Case
Leakage
Current
mA
Terminal
Torques
Nm / lb ft
4200-6401 26.1 20 3.1 29.4 280 2.2 / 1.6
4200-6402 11.7 20 1.1 14.1 68 2.2 / 1.6
4200-6403 30 20 3.1 38 220 2.2 / 1.6
4200-6404 16 20 1.2 24.5 132 2.2 / 1.6
Part Number
Maximum
Power
Losses
W
IP Rating Weight
kg / lb
Operational
Leakage
Current
mA
WorstCase
Leakage
Current
mA
Terminal
Torques
Nm / lb ft
Ground
connection
torque
Nm / lb ft
4200-6116 12.8 20 3.8 / 9 31 143 4.5 / 3.3 2.2 / 1.6
4200-6117 14.3 20 3.8 / 9 29 126 4.5 / 3.3 4.0 / 2.9
4200-6106 25.5 20 7.8 / 17 48.5 209 8.0 / 5.9 9.0 / 6.6
NOTE
NOTE
