Commander SE User Guide 62
Issue Number 8 www.controltechniques.com

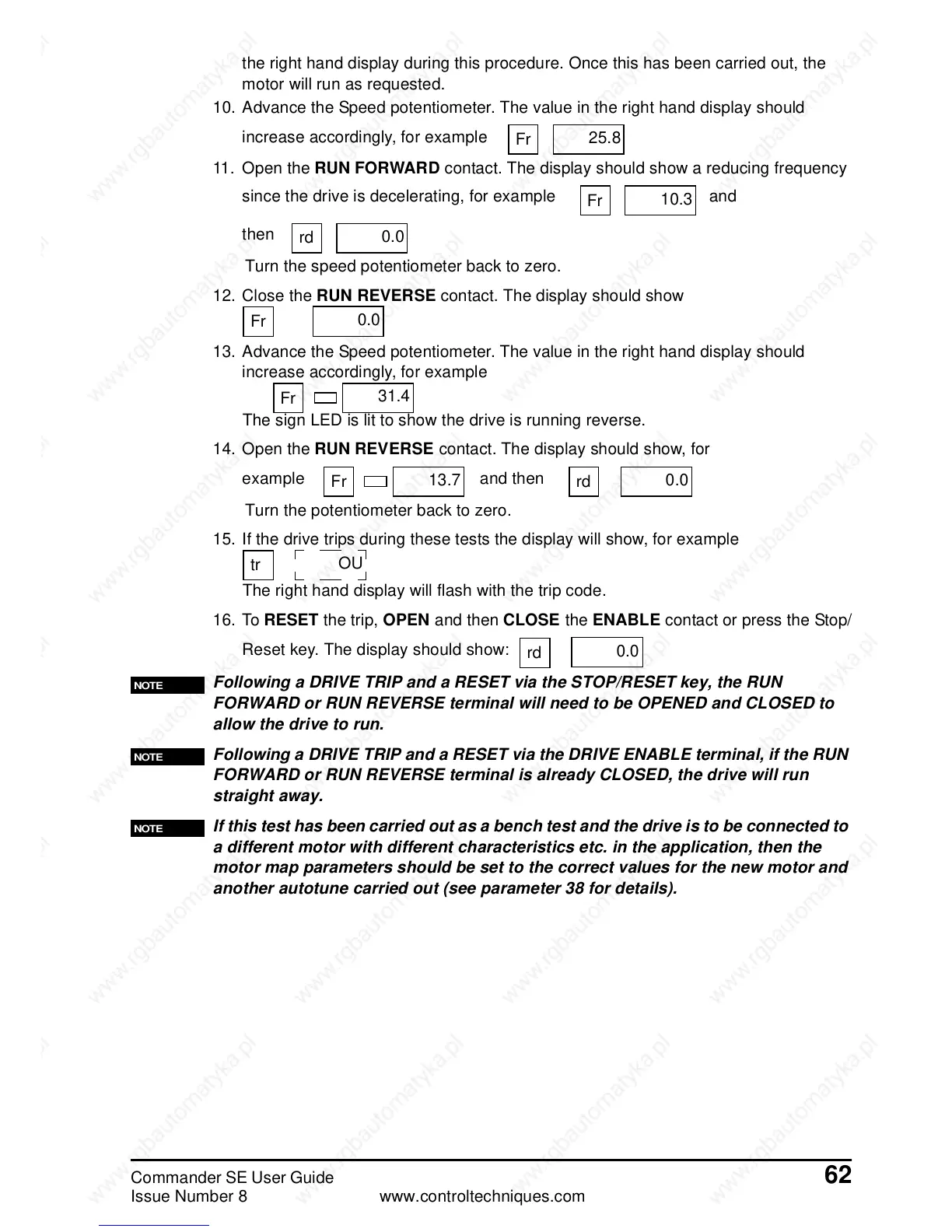

the right hand display during this procedure. Once this has been carried out, the
motor will run as requested.
10. Advance the Speed potentiometer. The value in the right hand display should
increase accordingly, for example
11. Open the RUN FORWARD contact. The display should show a reducing frequency
since the drive is decelerating, for example and
then
Turn the speed potentiometer back to zero.
12. Close the RUN REVERSE contact. The display should show
13. Advance the Speed potentiometer. The value in the right hand display should
increase accordingly, for example
The sign LED is lit to show the drive is running reverse.
14. Open the RUN REVERSE contact. The display should show, for
example and then
Turn the potentiometer back to zero.
15. If the drive trips during these tests the display will show, for example
The right hand display will flash with the trip code.
16. To RESET the trip, OPEN and then CLOSE the ENABLE contact or press the Stop/
Reset key. The display should show:
Following a DRIVE TRIP and a RESET via the STOP/RESET key, the RUN
FORWARD or RUN REVERSE terminal will need to be OPENED and CLOSED to
allow the drive to run.
Following a DRIVE TRIP and a RESET via the DRIVE ENABLE terminal, if the RUN
FORWARD or RUN REVERSE terminal is already CLOSED, the drive will run
straight away.
If this test has been carried out as a bench test and the drive is to be connected to
a different motor with different characteristics etc. in the application, then the
motor map parameters should be set to the correct values for the new motor and
another autotune carried out (see parameter 38 for details).
Fr
25.8
Fr
10.3
rd
0.0
Fr
0.0
Fr
31.4
Fr
13.7
rd
0.0
tr
OU
rd
0.0
NOTE
NOTE
NOTE
