Coolaroo BRIGHTON - Step 6: Rotating the Canopy; Step 7: Light Controller Installation

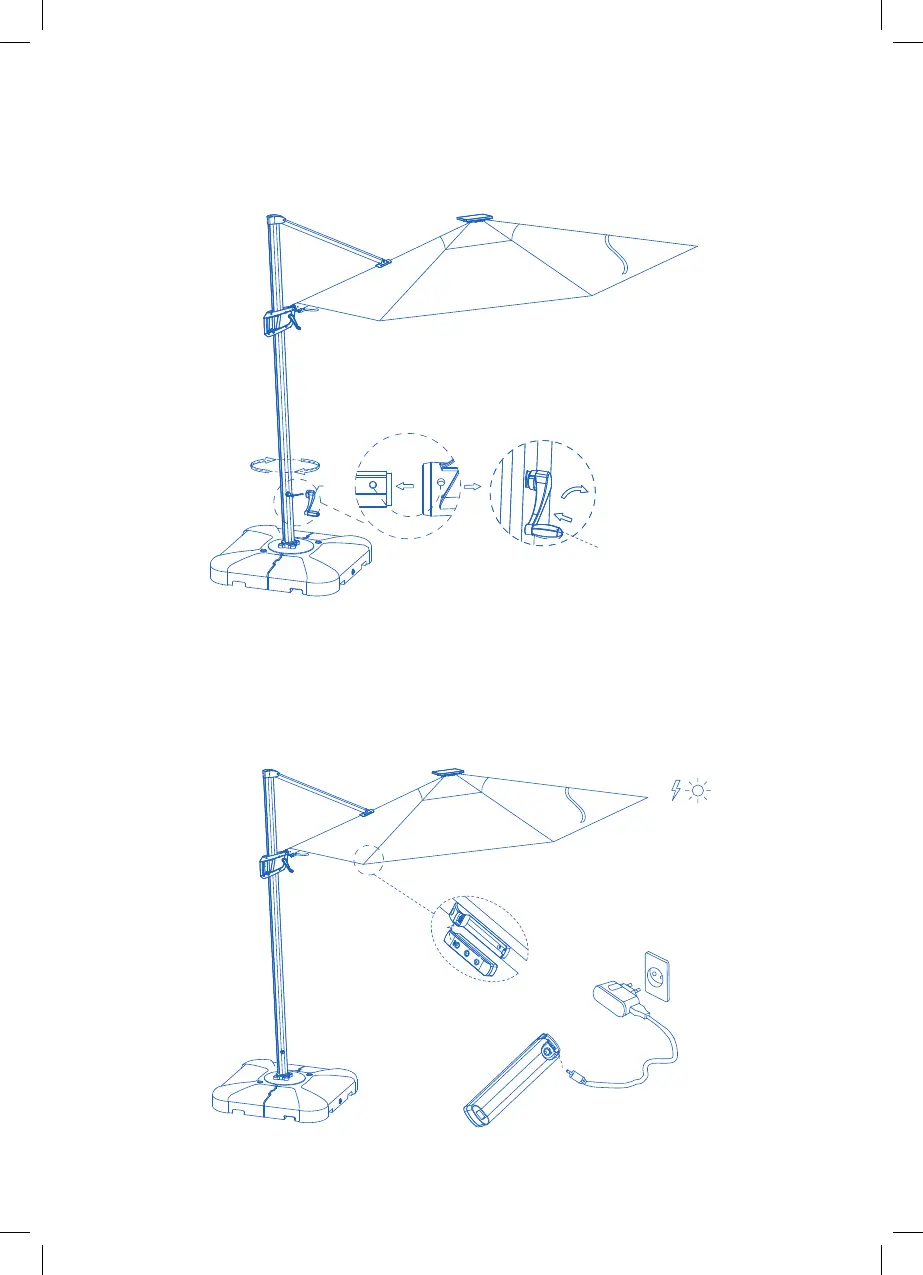

STEP 6 - ROTATING THE CANOPY
Use the crank handle (f) to rotate the canopy in a clockwise, or anti clockwise
direction. The canopy can be rotated 360 degrees in either direction.
STEP 7 - INSTALLING THE LIGHT CONTROLLER
The light controller is installed at the end of the internal umbrella rib. When charging
is required, un-clip the controller from the rib. Use the USB lead supplied and
connect to a suitable power source.
Domestic charging
F
5V=1.0A
head 5V= 1.0A
connect USB cable
light
controller
J
360°
②
①
②
①
②
①
f.
f.
