Coolaroo FAIRHAVEN - Step 10: Crank Mechanism Attachment

15
STEP 10

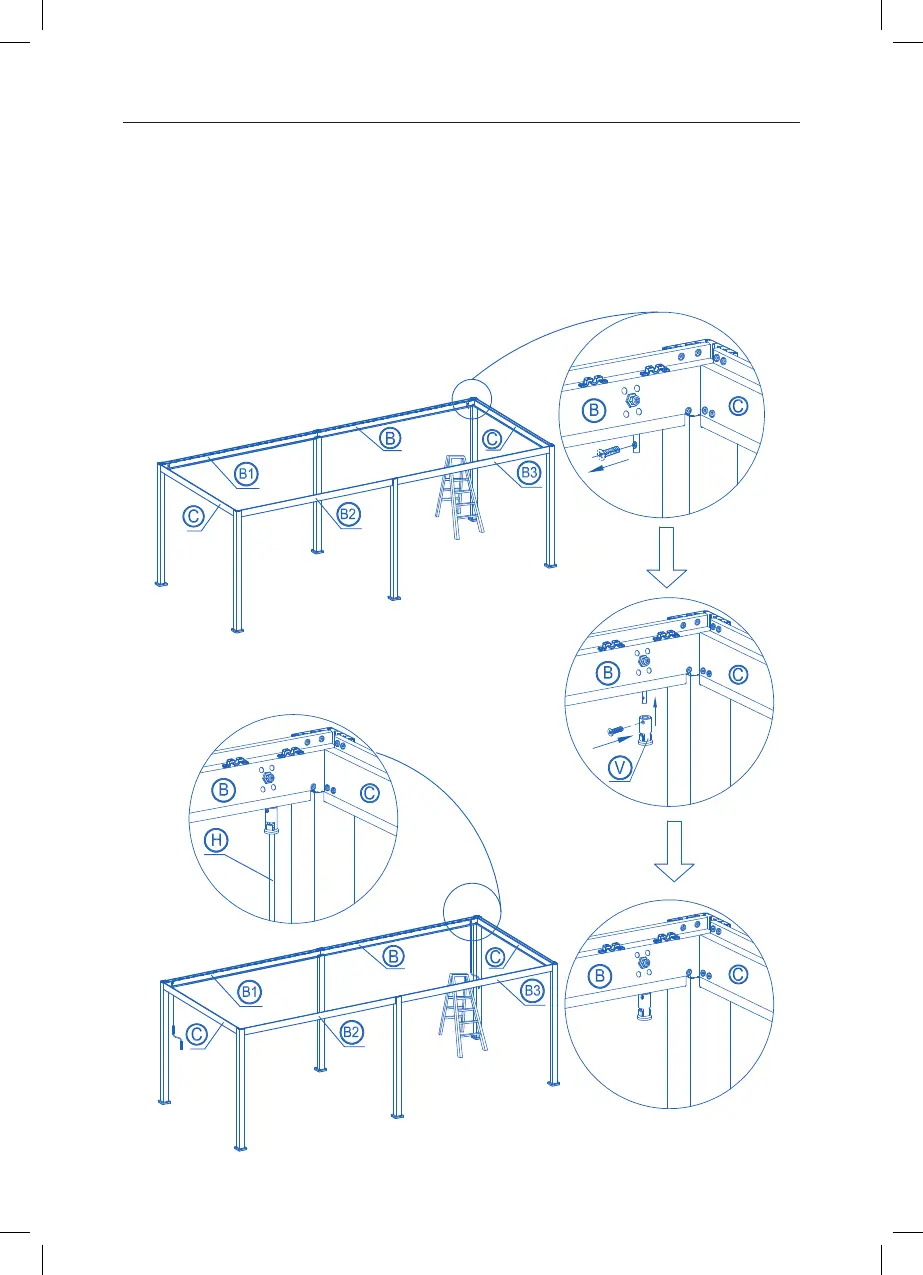

Find the corner along the B bream with the crank pin hanging down.
Remove the screw from the crank pin temporarily. Slide the crank
mechanism (V) over the pin, lining up the holes. Drive the screw through
both parts. Insert the hook of the crank handle (H).
Figure 10.
