Coolaroo FAIRHAVEN - Step 11: Louvre Plate Fitting

16
Figure 11.
STEP 11

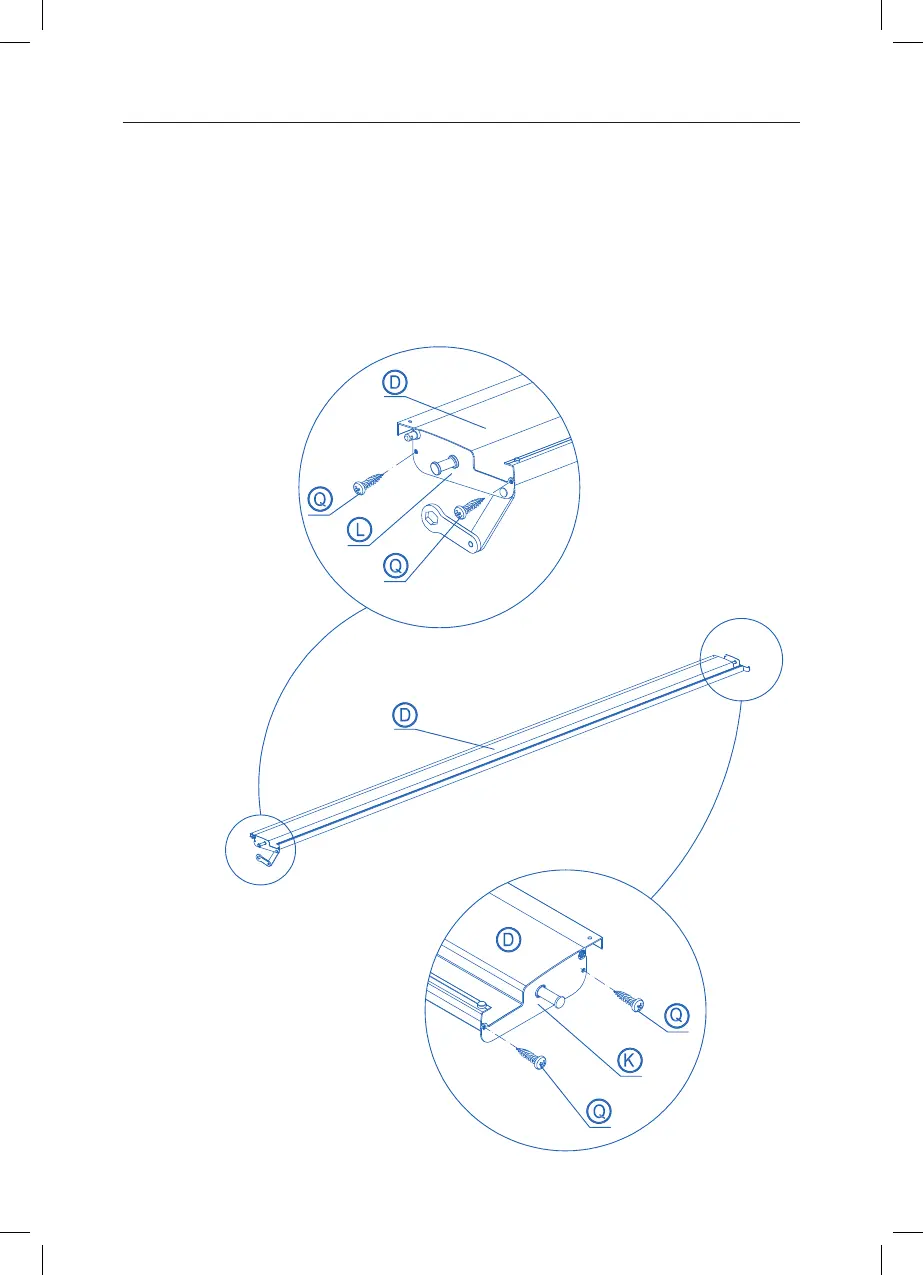

Take two of the louvres (D) aside. Take the louvre arm plate (L) and position it
on the inside of the le end of the louvre. Use two of the 25mm screws (Q) to ax
the controller to the louvre.
Find one of the louvre plates (K) and position it on the inside of the right end
of the louvre. Screw the plate in place using two more of the 25mm screws.
Repeat this step for the second louvre.
×2 times
