17
STEP 12
Remove the crank bolt from the (B) beam using the Allen key (X). Position the louvre
at the top of the gazebo with the attached arm (L), lining up the louvre arm (L) with
the crank socket on the (B) beam, just above the crank handle (second cradle
position). Place the pin on the other end of the louvre in the second cradle position
on top of the B3 beam.

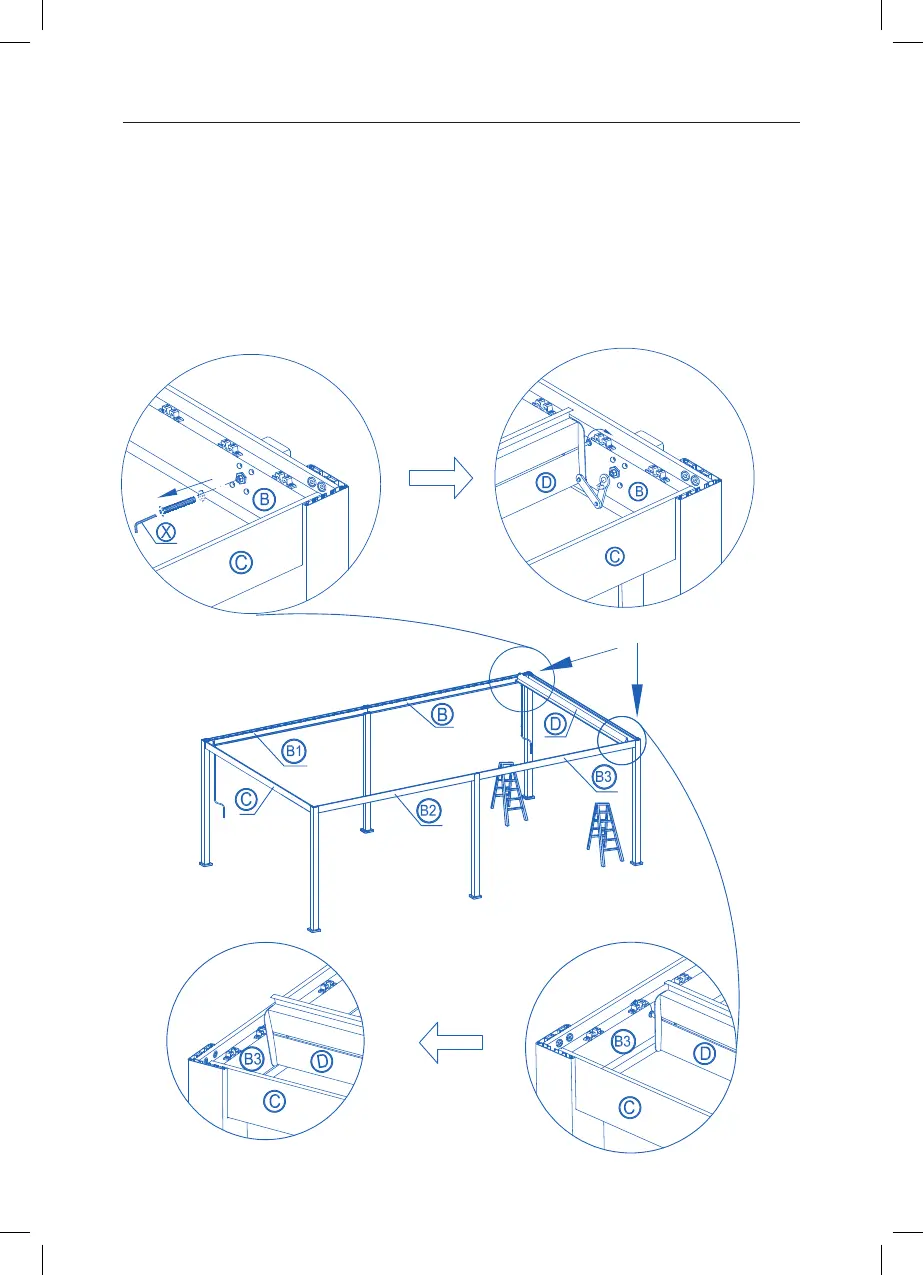

Figure 12.
Assemble the second slice to the right.
