Coolaroo FAIRHAVEN - Step 17: Securing Second Louvre Pin

22

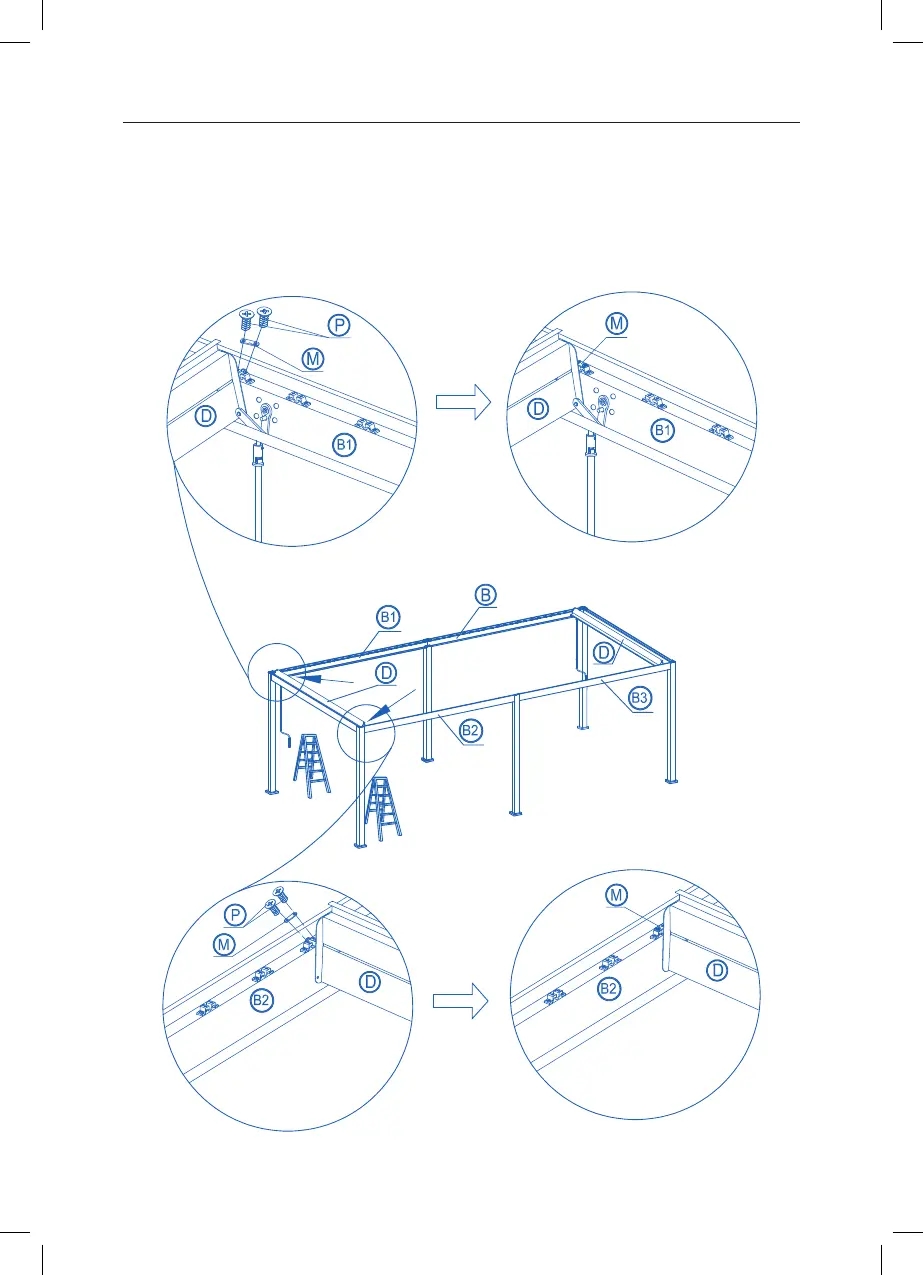

Figure 17.
STEP 17
This step is a repeat of step 14 but at the opposite end of the gazebo. To secure the
louvre pin into place, ensure the pin is sitting in the cradle on the beam (B1). Take the
cover (M) and line up the holes. Once in position, screw the cover plate in place using
two M5 screws (P). Repeat this on the other side of the louvre on beam B2.
