Coolaroo FAIRHAVEN - Step 16: Securing Second Louvre Arm

21
STEP 16
This step is a repeat of step 13 but at the opposite end of the gazebo.
Ensure the louvre arm (L) is in the correct position (as per illustration).
Re-insert the louvre bolt into the B1 beam and tighten with the Allen key (X).

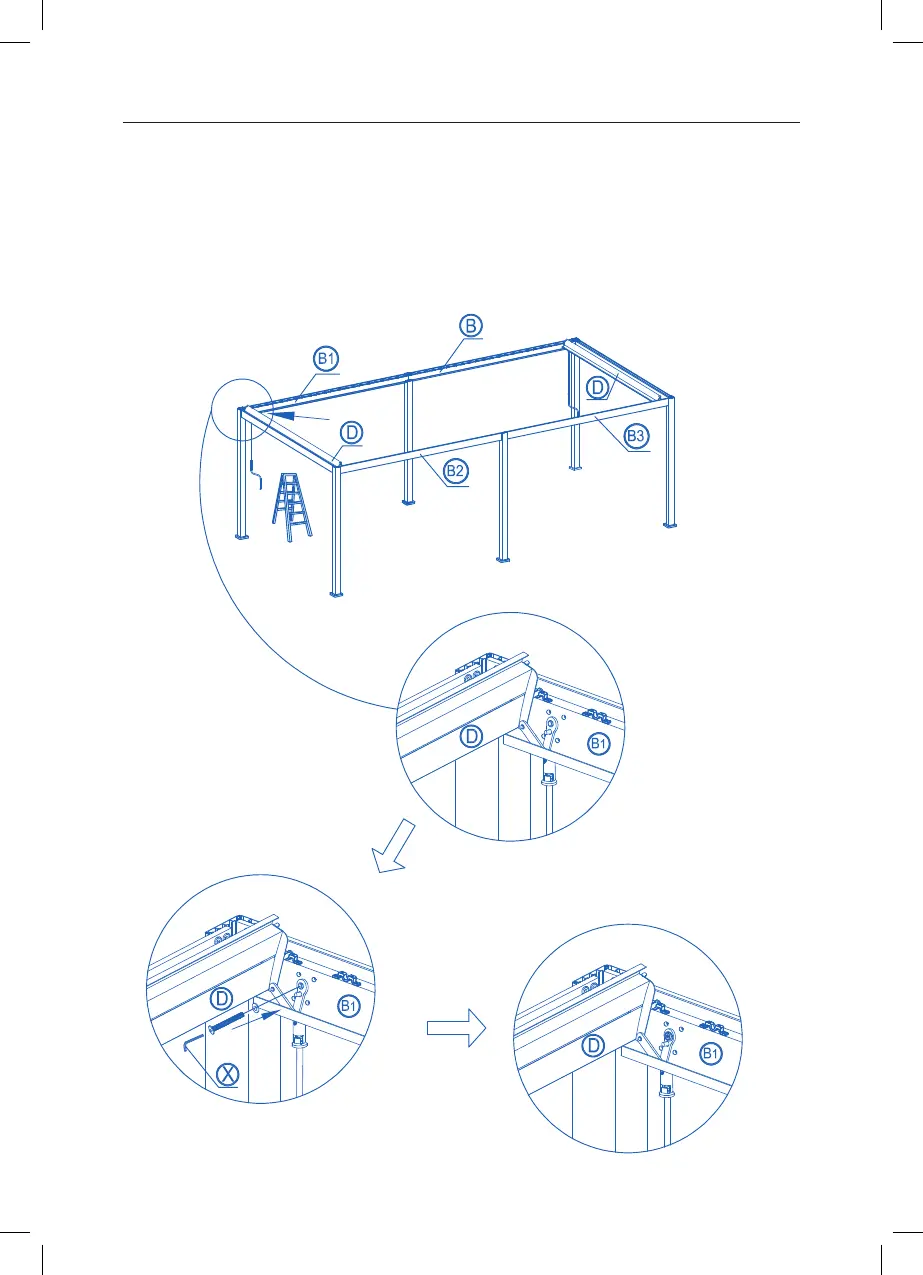

Figure 16.
