25

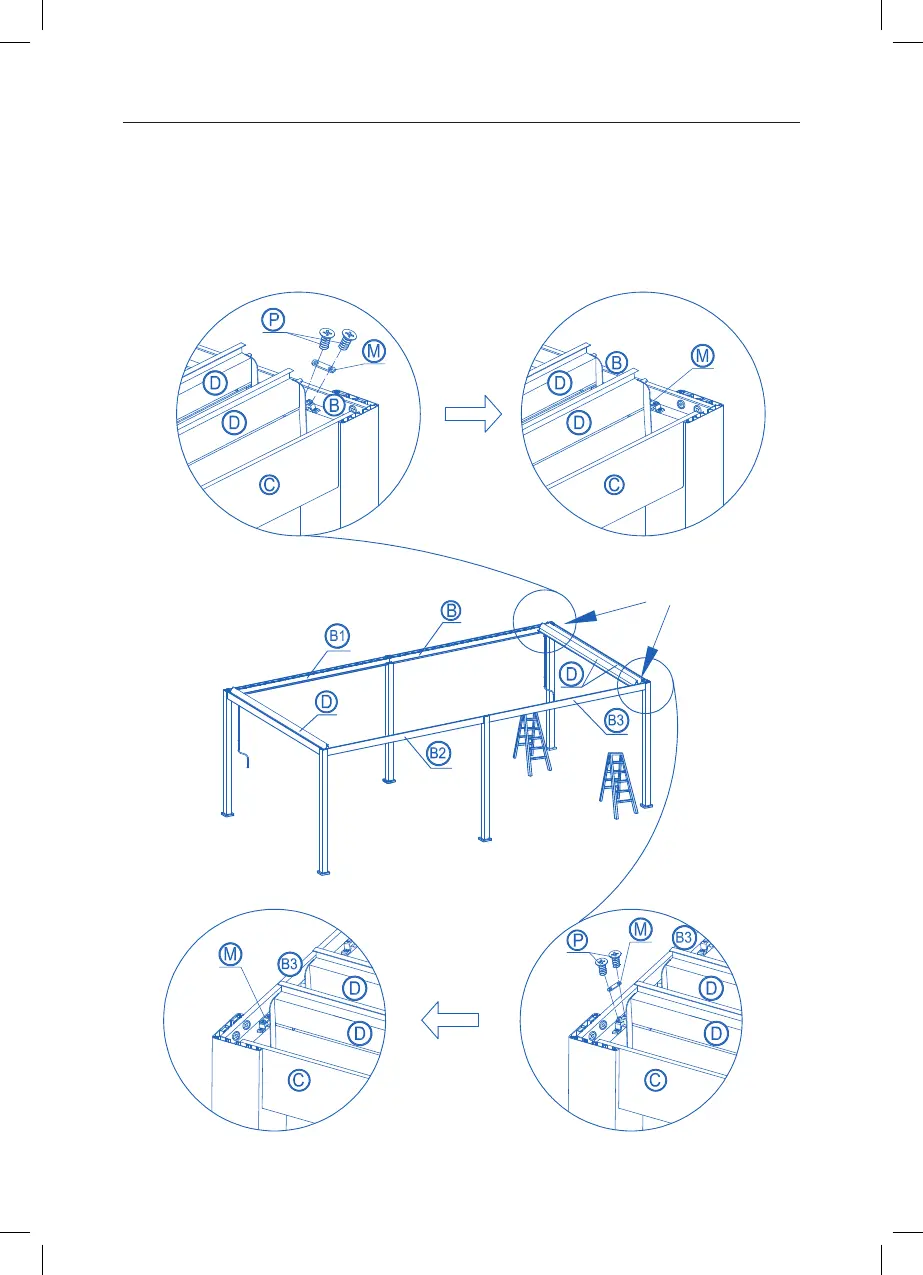

STEP 20
Place a small cover (M) on top and screw down in place using two M5 screws (P).
Repeat this step on the opposite side of the louvre.
Figure 20.
