Coolaroo FAIRHAVEN - Step 21: Centre Louvre Placement

26
Figure 21.

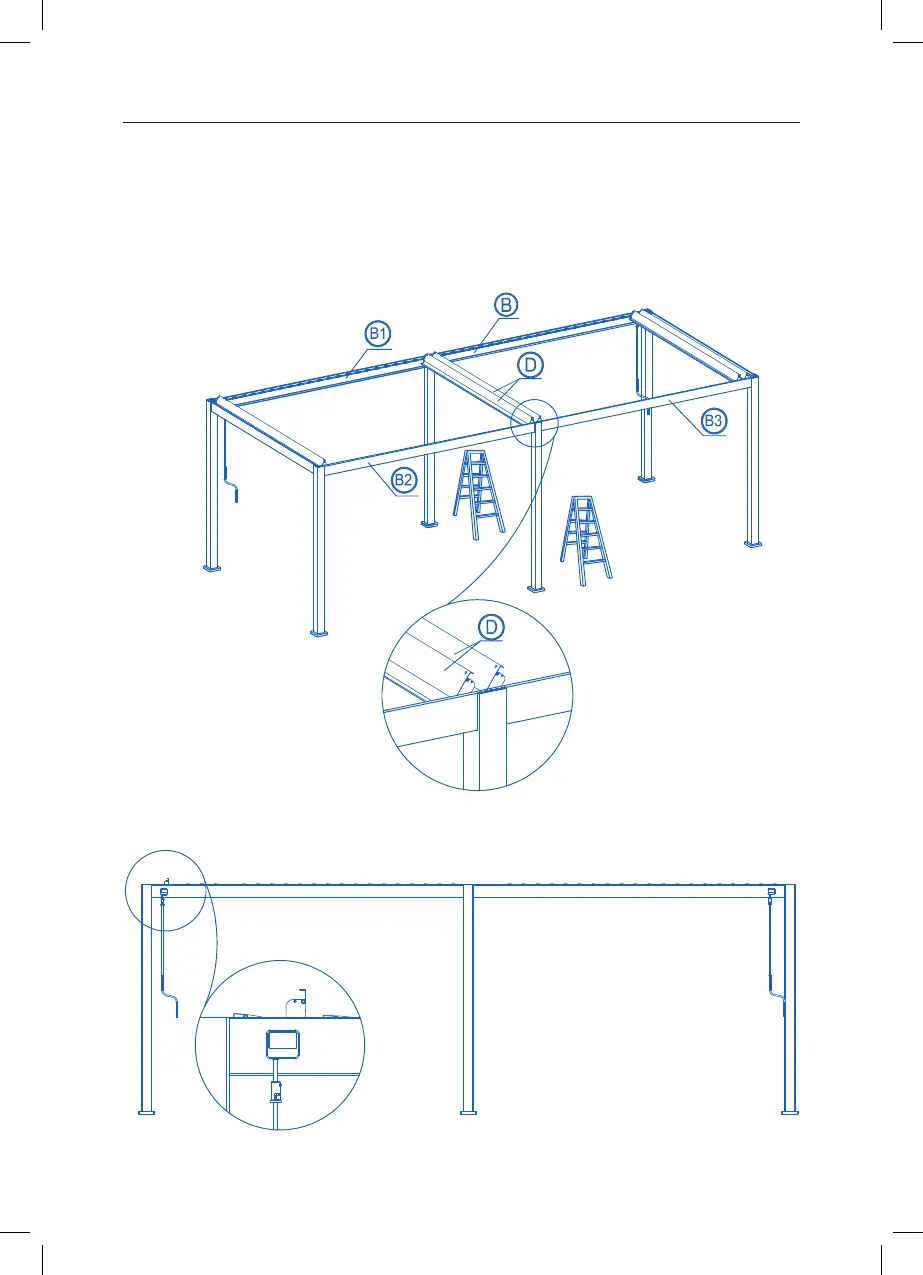

STEP 21
Position two louvres in the centre of the gazebo. Install the remaining louvres in the
same way as before. Ensure each louvre is in the same orientation. Insert the louvre
pin onto the cradle on both ends of the louvre and screw down the cover plate (M)
with two M5 screws (P).
Adjust the driving louvre in a vertical position.
Please install the middle two louvres rst.
