Coolaroo FAIRHAVEN - Step 22: Louvre Guide Rail Fitting

27
STEP 22

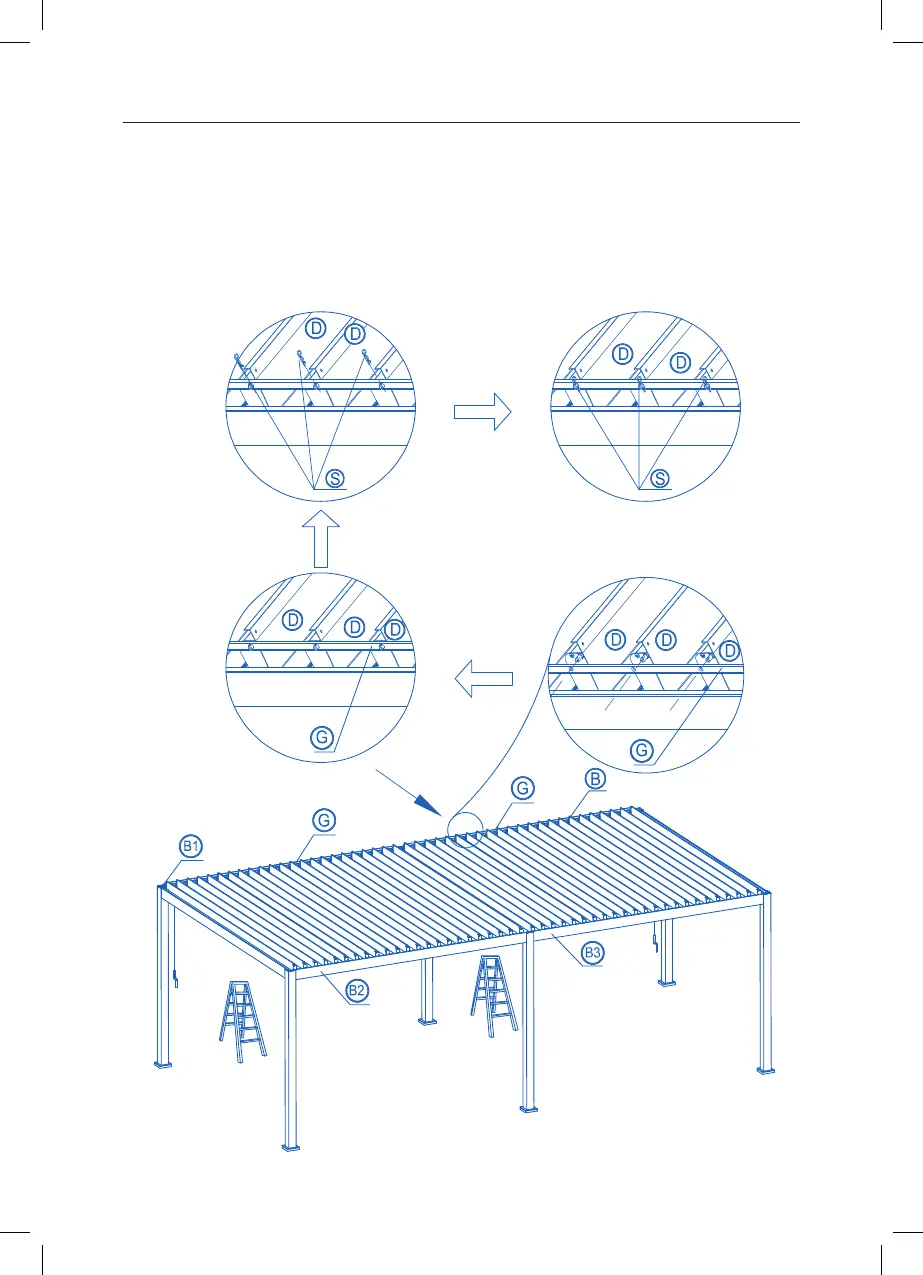

Once all louvres are correctly installed, take the louvre guide rail (G) and line up the
holes with the free louvre pins on the crank handle side. Put the louvre guide rail over
the pins. Push the straight section of the split pin (S) through the small hole of each
pin protruding through the guide rail.
Figure 22.
