4. Slide the new P.I. Drive Gear onto the shaft matching
up the gear teeth of the P.I. Drive Gear and the teeth of
the miter gear. (See Figure 228.)
5. Use a pair of pliers, either needle nose or wireman
pliers, and press the retainer ring over the shaft with the
retainer ring located in the shaft groove. (See Figures
229 and 230.)

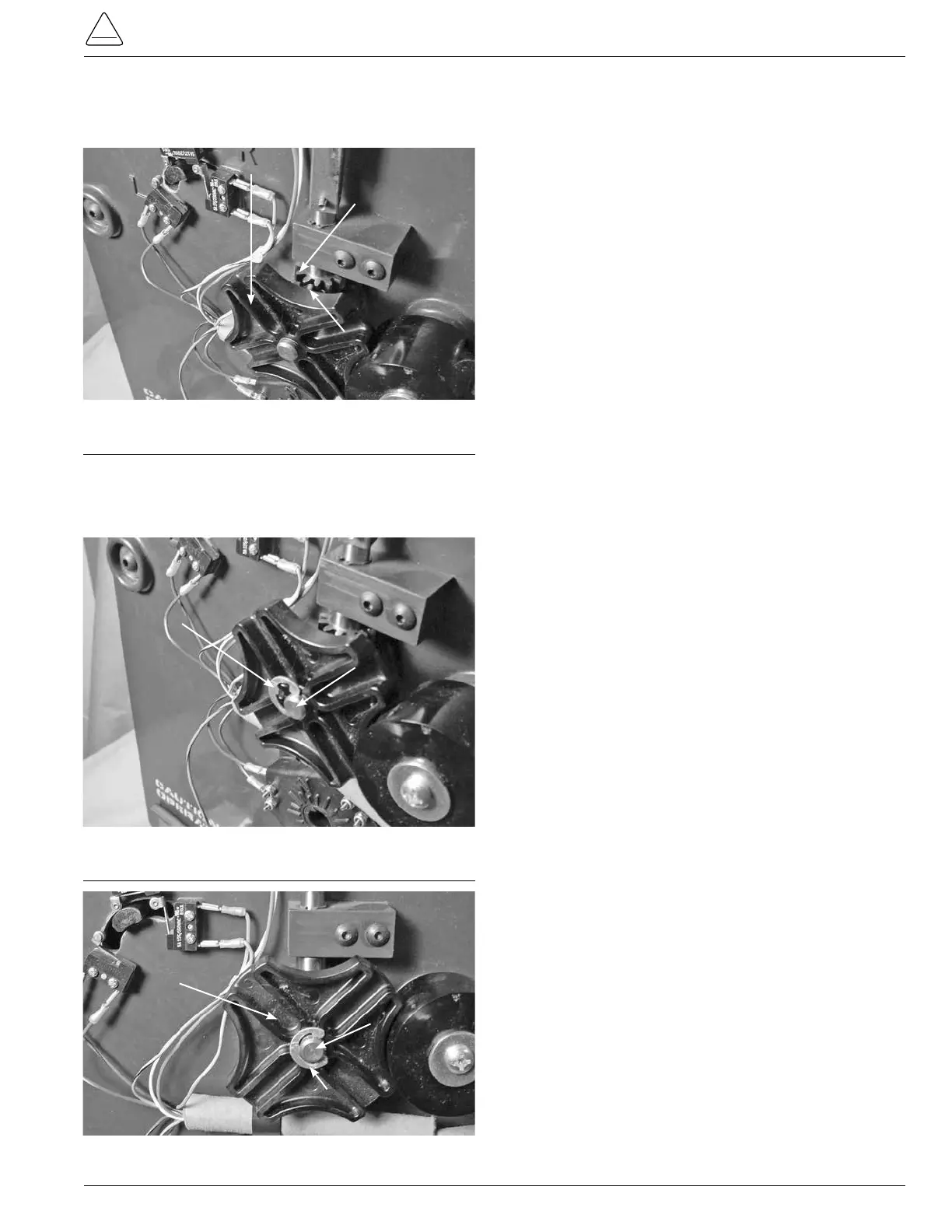

Figure 228.
Gear teeth.
Figure 230.
Retainer ring in place.
P.I. Drive Gear
Miter Gear
Teeth
P.I. Drive Gear
Retainer Ring
Retainer
Ring Shaft
Figure 229.
Retainer ring fastening.
Retainer Ring
Shaft
P.I. Drive Gear
