11
5. Fit the chain cover to the power unit and
fasten the nuts to finger tightness.
6. While holding up the tip of the bar, adjust the
chain tension by turning the tensioner screw
until the tie straps just touch the bottom side of
the bar rail (F4).
7. Tighten the nuts securely with the bar tip held
up (12-15N.m). Then check the chain for
smooth rotation and proper tension while
moving it by hand.
If necessary, readjust with the chain cover loose.
8.Tighten the tensioner screw.

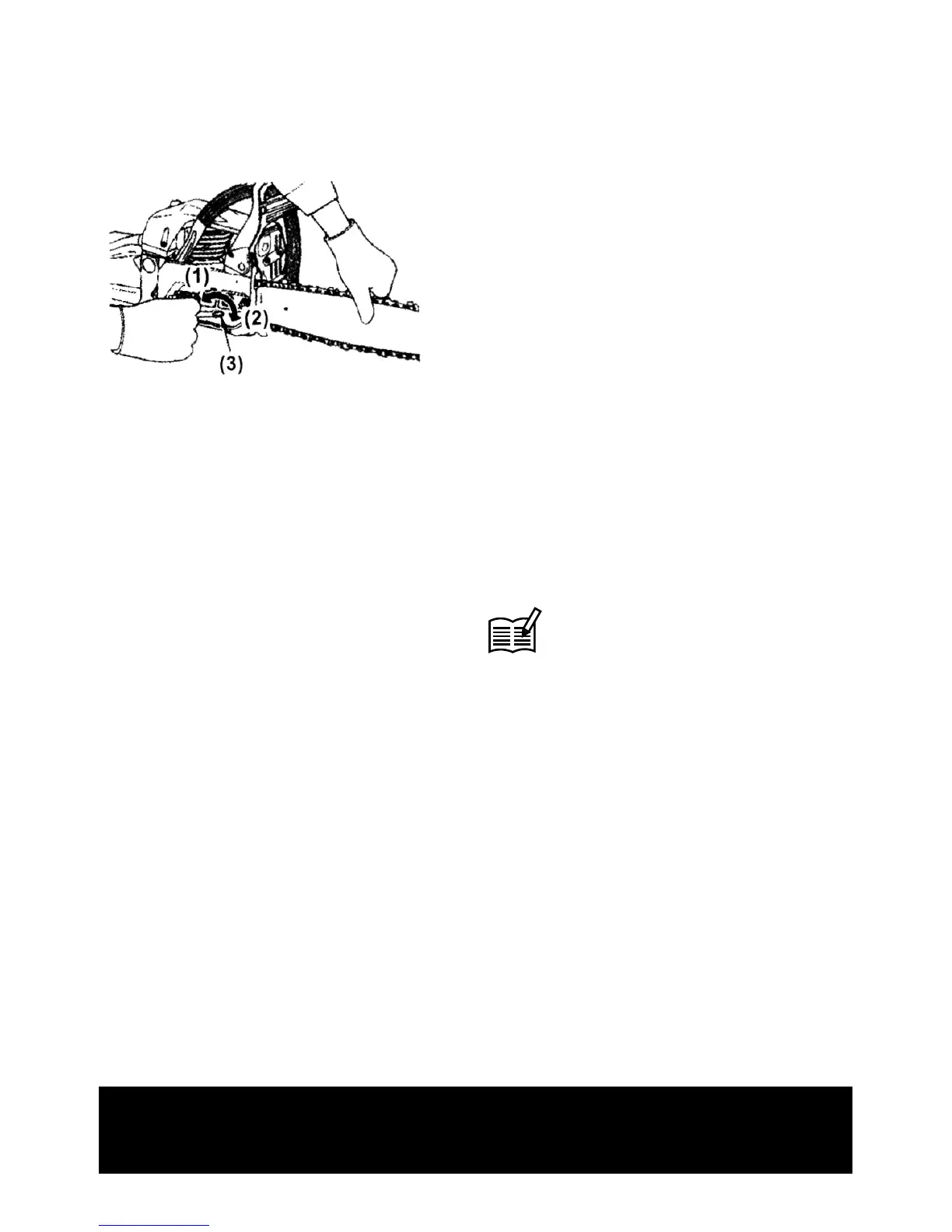

(1) Loosen
(2) Tighten
(3) Tensioner screw
Note
A new chain will loosen during first use. Check
and readjust the tension frequently as a loose
chain can easily derail or cause rapid wear of
itself and the guide bar.
Installing guide bar and saw chain
(F4)
