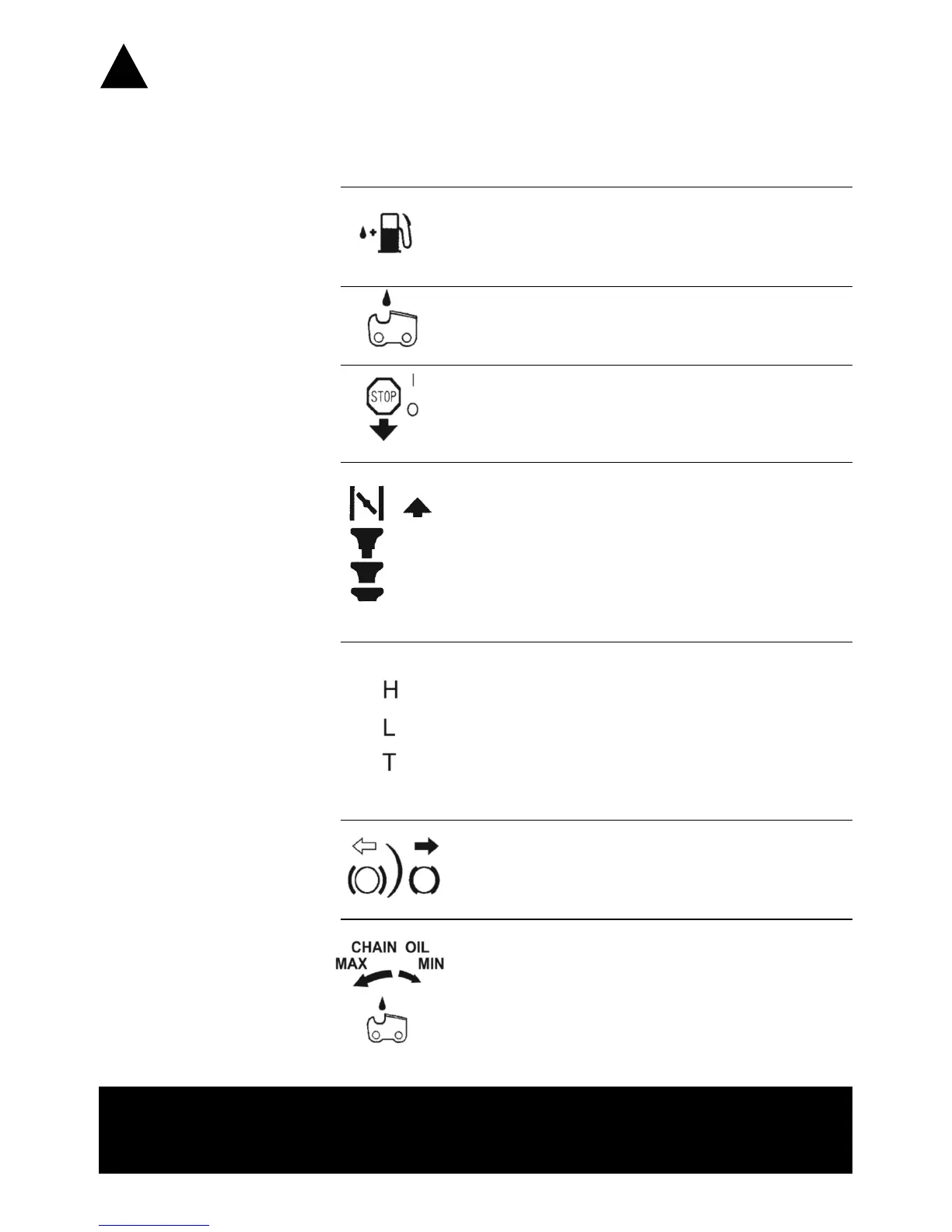

Symbols on the machine
For safe operation and maintenance, symbols are carved in relief on the machine.
According to these indications, please be careful not to make any mistake.
!
(a) The port to refuel Petrol/2-Stroke Oil mix using
mixing container.
Position: Fuel cap, bottom of the power unit.
(b) The port to top up chain oil.
Position: Oil cap.
(c) Setting the switch to the “O” position, the engine
stops immediately.
Position: Rear-left of the unit.
(d) Starting the engine. If you pull out the choke knob
(at the back-right of the rear handle) to the point of the
arrow, you can set the starting mode as follows: First-
stage position – starting mode when the engine is
warm. Second-stage position – starting mode when the
engine is cold.
Position: Upper-right of the air cleaner cover.
(e) The screw under the H stamp is the high-speed
adjustment screw.
The screw under the L stamp is the slow-speed
adjustment screw.
The screw at the left of the T stamp is the Idle
adjustment screw.
Position: to the right of the starter rope.
(f) Shows the directions that the chain brake is released
(white arrow) and activated (black arrow).
Position: Front of the chain cover.
g) Use a screwdriver to turn the screw to increase or
decrease the flow of oil to the chain.
Position: Bottom of the power unit.
CHOKE
START
RUN
(a)
(b)
(c)
(d)
(e)
(f)
(g)
