PARTS
Engine, Engine Mount,
Throttle Lead & Ignition Cable,
Handle bar, Drive Shaft
(come attached) 1 of each
Wheels 2
Wheel washers 2
Wheel Locking Nuts 2
Cable Ties 3
Wheel Axle 1
Wheel Axle Support Nut & Bolt 1
Handle Bar Shaft 1
Handle Bar Shaft Nut & Bolt 2
5mm Allen Key 1
4mm Allen Key 1
Screwdriver 1
Fuel Mixing Bottle 1
Plastic Shield 1
Plastic Shield Bracket 1
Plastic Shield Bracket Nut & Bolt 2
Blade 1
Blade Guard 1
Nylon T
rimmer Head 1
Spark Plug Socket 1
13mm / 15mm Spanner 1
10mm / 8mm Spanner 1
Cutting Blade 1
Cutting Blade Screws 3
Handle Bar Plastic Turning Knob 2
Handle Bar Washer 2
Handle Bar Bolt 2

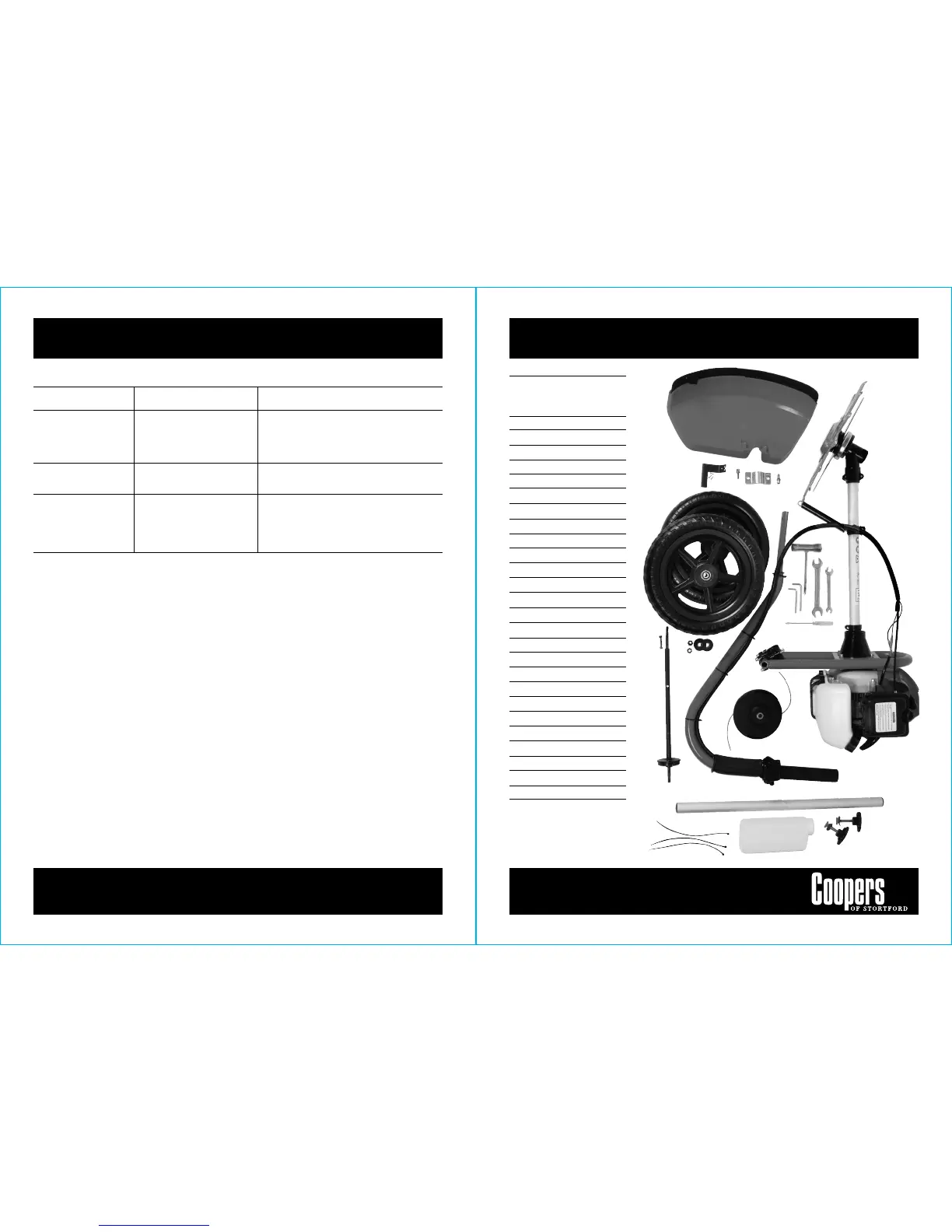

Parts location and description
3
TROUBLESHOOTING
PROBLEM CAUSE CORRECTION
Excessive Bounce 1. Ground too dry and hard 1. Moisten ground or wait for more favourable soil conditions
Difficult Handling 2. Wheels and depth stake 2. Adjust wheels and depth stake incorrectly adjusted
Soil Balls up or Clumps 1. Ground too wet 1. Wait for more favourable soil conditions
Engine runs but labours when tilling 1. Tilling too deep 1. Set depth stake for sha
llower tilling
2. Throttle control not properly 2. Check throttle control setting adjusted
3. Carburettor out of adjustment 3. Make necessary adjustments
Troubleshooting guide
14
