Cornwell Tools CAT2150 - Parts Breakdown

4CAT2150 Rev. 06/08/10
ITEM PART NO PART NAME QTY ITEM PART NO PART NAME QTY
101 RS2125101 HAMMER CASE 1 401 RS2125401 TRIGGER A 1
102 RS1081103 HAMMER CASE BUSHING 1 402 RS2125402 SPRING PIN 1
103 RS1734201 SOCKETRETAINER 1 403 RS3125403 TRIGGERBUSHING 1
104 RS2150104 O-RING 1 404 RS4150405 PUSHER SPRING 1
105 RS1081106 ANVIL 1 405 RS2125405 REGULATOR A 1
106 RS1081109 HAMMER FRAME 1 406 RS4135407 LEVER 1
107 RS2150107 HAMMER 2 407 RS2125407 REVERSE VALVE 1
108 RS1081107 HAMMER FRAME PIN 2 408 RS1735313 BALL 2
109 RS2125109 PACKING 1 409 RS1077410 SPRING 1
110 RS1837220 HAMMER CASE GREASE FITTING 1 410 RS1734414 O-RING 1
201 RS2150201 HOUSING 1 411 RS2125411 REGULATOR 1
202 RS4150202 HANDLE GRIP 1 412 RS2125412 SPRING 1
203 RS2125203 HALF ROUND HD. HEX.BOLT 4 413 RS1837309 SPRING PIN 1
204 RS2125204 HEX. SOC. HD. BOLT 1 415 RS2125415 O-RING 1
301 RS227B25 BEARING 1 416 RS4150417 TRIGGER TIP 1
302 RS2125302 FRONT BEARING PLATE 1 417 RS1735410 O-RING 2
303 RS2125303 SPRING PIN 1 418 RS2125418 AIR INLET 1
304 RS2125304 ROTOR 1 419 RS2135419 LATCH PIN 1
305 RS1081305 BLADES 7 421 RS1735408 EXHAUST DEFLECTOR 1
306 RS2125306 CYLINDER UNIT 1 422 RS1735411 TAP BOLT 1
307 RS30524 BEARING 1 423 RS2125423 TRIGGER B 1
308 RS2125308 O-RING 1 426 RS1735403 SEAL 1
309 RS2125309 WASHER 1 427 RS1735404 BUSHING 1
310 RS2125310 PACKING-CYLINDER 1 428 RS1735405 TIPVALVE 1
429 RS4150428 SPRING 1
430 RS2135430 E-RING 1

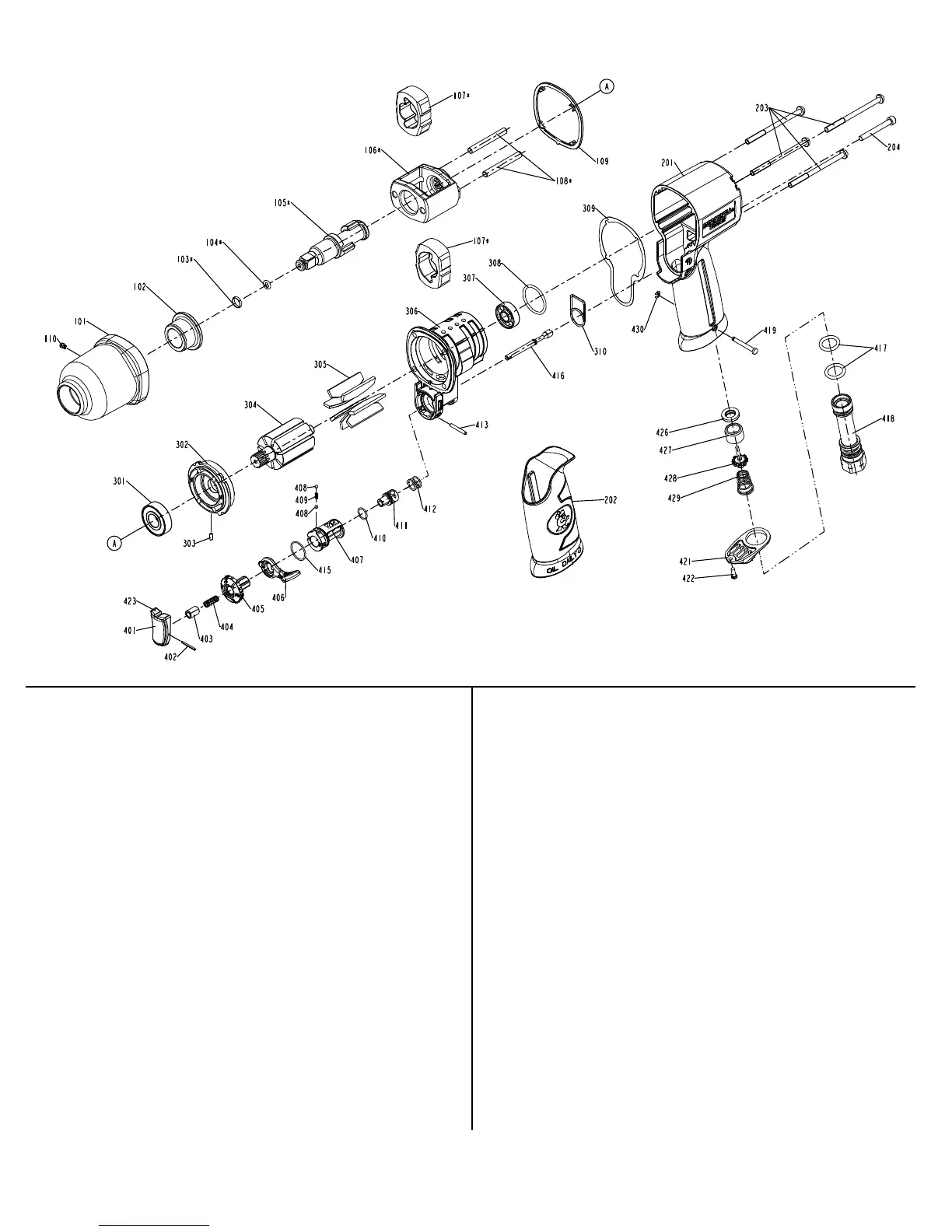

PARTS BREAKDOWN - CAT2150
(NotShown)-Tune-upkit,RS2150TK,including:103,104,109,305(7),308,309,310,410,415,417(2),and426.
