Cornwell Tools CAT4150 - Parts Breakdown

4CAT4150 Rev. 06/04/10
ITEM PARTS NO PARTS NAME QTY ITEM PARTS NO PARTS NAME QTY
101 RS4150101 HAMMER CASE 1 401 RS2125401 TRIGGER A 1
102 RS1761103 HAMMER CASE BUSHING 1 402 RS2125423 TRIGGER B 1
103 RS1761104 SOCKETRETAINER 1 403 RS2125402 SPRINGPIN 1
104 RS4135104 O-RING 1 404 RS3125403 TRIGGER BUSHING 1
105 RS1761106 ANVIL 1 405 RS4150405 PUSHER SPRING 1
106 RS1761109 HAMMER FRAME 1 406 RS2125405 REGULATOR A 1
107 RS1761108 HAMMER 2 407 RS4135407 LEVER 1
108 RS1761107 HAMMER FRAME PIN 2 408 RS2125407 REVERSE VALVE 1
110 RS4135110 PACKING-HAMMERCASE 1 409 RS1735313 BALL 1
111 RS1837220 HAMMER CASE GREASE FITTING 1 410 RS1077410 SPRING 1
112 RS4135112 SPRING PIN 1 411 RS2125415 O-RING 1
201 RS4150201 HOUSING 1 412 RS1734414 O-RING 1
202 RS4150202 HANDLE GRIP 1 413 RS2125411 REGULATOR 1
203 RS4135203 HALF ROUND HD. HEX. BOLT 1 414 RS2125412 SPRING 1
204 RS2125204 HEX. SOC. HD. BOLT 4 415 RS4135415 SPRING PIN 1
301 RS221RA32 BEARING 1 417 RS4150417 TRIGGER TIP 1
302 RS4135302 FRONT BEARING PLATE 1 418 RS1735410 O-RING 2
303 RS4135303 BOLT ASSEMBLY 3 419 RS2125418 AIR INLET 1
304 RS4135304 BLADE 7 420 RS4150420 LATCH PIN 1
305 RS4135305 ROTOR 1 422 RS1735408 EXHAUST DEFLECTOR 1
306 RS4135306 CYLINDER UNIT 1 423 RS1735411 TAP BOLT 1
307 RS227B25 BEARING 1 424 RS4150424 E-RING 1
308 RS4135308 O-RING 1 425 RS1735403 SEAL 1
309 RS4135309 GASKET-CYLINDER 1 426 RS1735404 BUSHING 1
310 RS2125310 PACKING-CYLINDER 1 427 RS1735405 TIPVALVE 1
1 428 RS4150428 SPRING 1

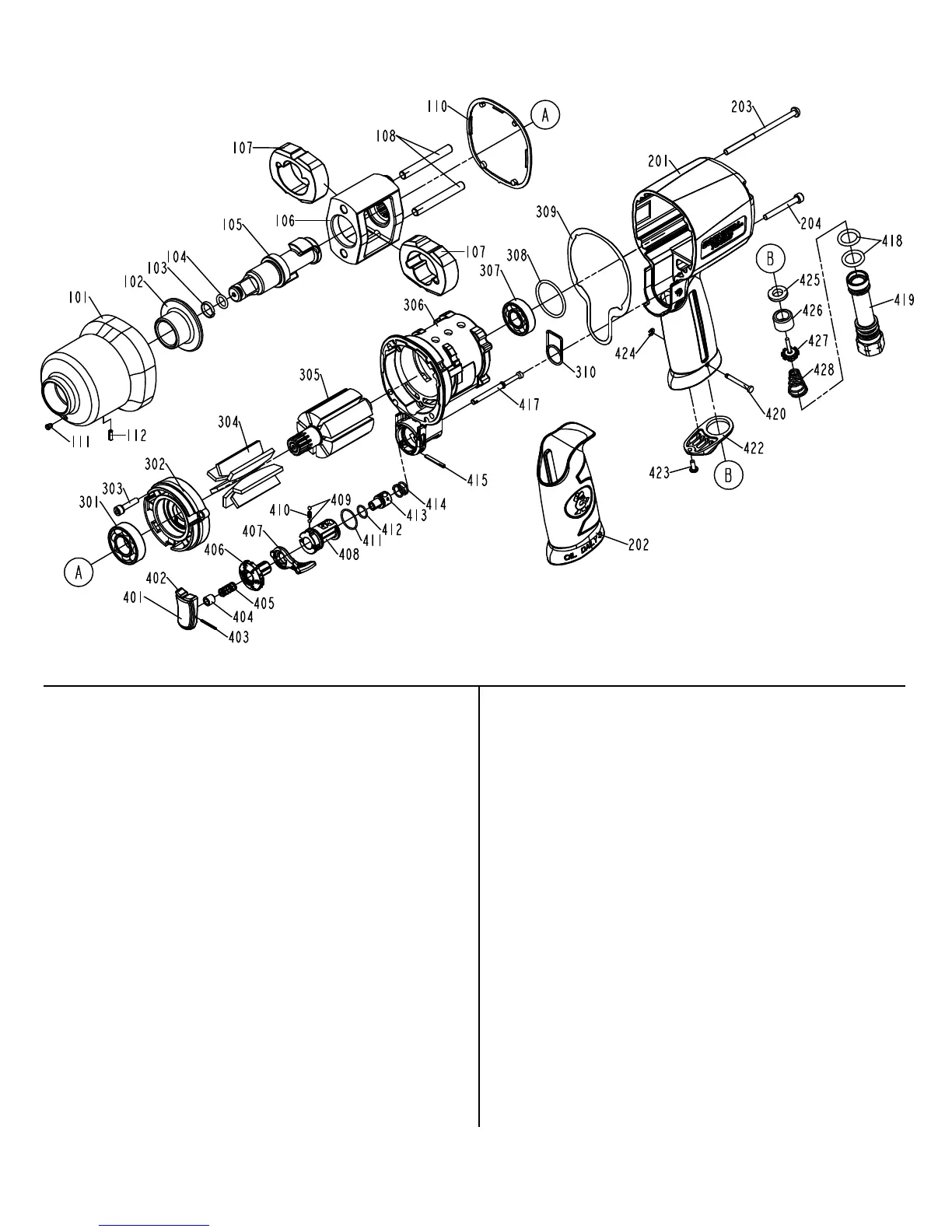

PARTS BREAKDOWN - CAT-4150
(NotShown)-Tune-upkit,RS4150TK,including:103,104,110,304(7),308,309,310,411,412,418(2),and425.
