CAT4150 / CAT4150G 3 05/29/18

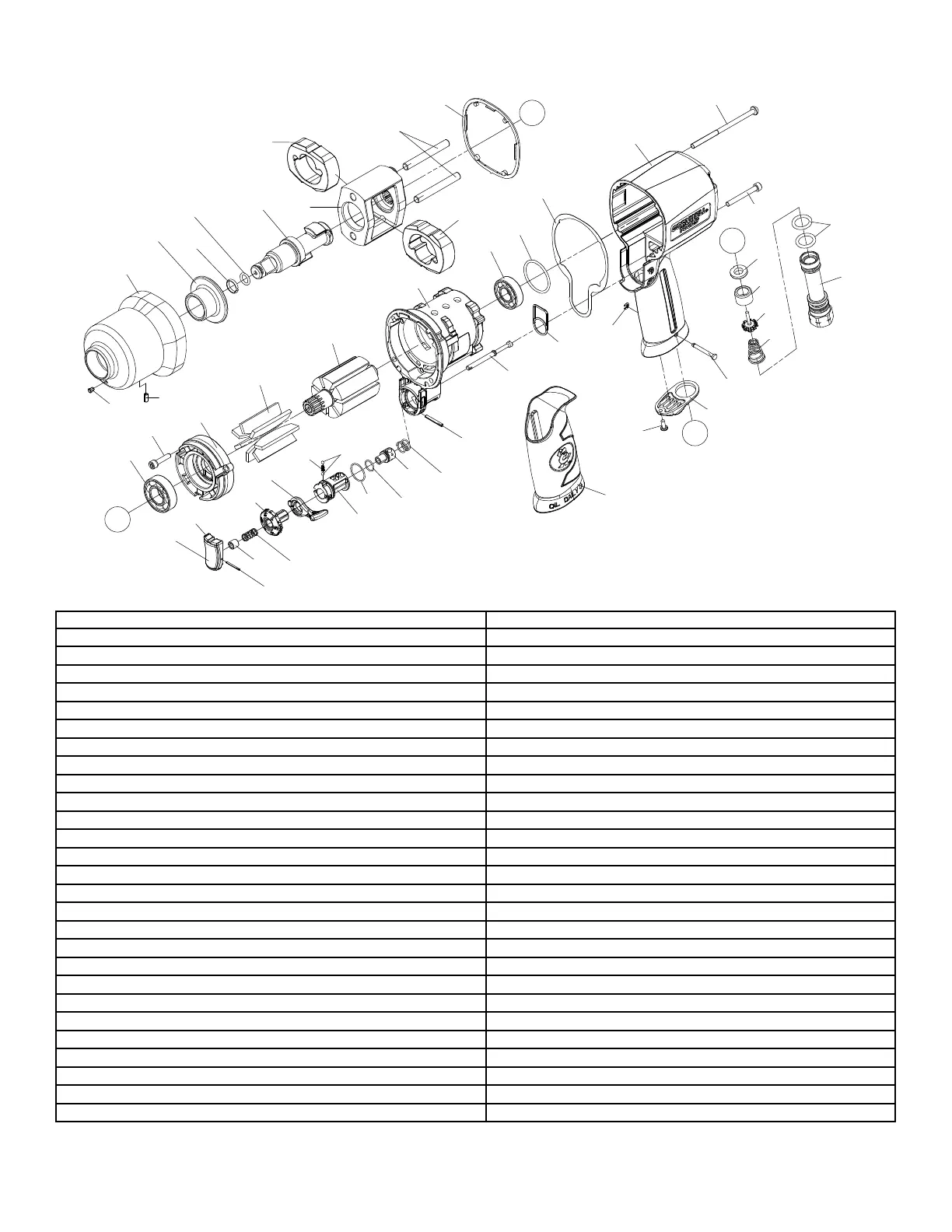

PARTS BREAKDOWN - CAT4150 / CAT4150G
REF. # ITEM # DESCRIPTION QTY REF. # ITEM # DESCRIPTION QTY
101 RS4150101 Hammer Case 1 402 RS2125423 Trigger B 1
102 RS1761103 Hmmer Case Bushing 1 403 RS2125402 Sprint Pin 1
103 RS1761104 Socket Retainer 1 404 RS3125403 Trigger Bushing 1
104 RS4135104 O-Ring 1 405 RS4150405 Pusher Spring 1
105 RS1761106 Anvil 1 406 RS2125405 Regulator A 1
106 RS1761109 Hammer Frame 1 407 RS4135407 Lever 1
107 RS1761108 Hammer 2 408 RS2125407 Reverse Valve 1
108 RS1761107 Hammer Frame Pin 2 409 RS1735313 Ball (2.5mm) 2
110 RS4135110 Packing-Hammer Case 1 410 RS1077410 Spring 1
111 RS1837220 Hammer Case Grease Fitting 1 411 RS2125415 O-Ring 1
112 RS4135112 Spring Pin 1 412 RS1734414 O-Ring 1
201 RS4150201 Housing - Blue 1 413 RS2125411 Regulator 1
201 RS4150201G Housing - Green 1 414 RS2125412 Spring 1
202 RS4150202 Handle Grip 1 415 RS4135415 Spring Pin 1
203 RS4135203 Half Round Hd. Hex. Bolt 4 417 RS4150417 Trigger Tip 1
204 RS2125204 Hex. Soc. Hd. Bolt 1 418 RS1735410 O-Ring 2
301 RS221RA32 Bearing (6002ZZ) 1 419 RS2125418 Air Inlet 1
302 RS4135302 Front Bearing Plate 1 420 RS4150420 Latch Pin 1
303 RS4135303 Bolt Assembly 3 422 RS1735408 Exhaust Deflector 1
304 RS4135304 Rotor Blade 7 423 RS1735411 Tap Bolt 1
305 RS4135305 Rotor 1 424 RS4150424 E-Clip 1
306 RS4135306 Cylinder Unit 1 425 RS1735403 Seal 1
307 RS227B25 Bearing (6001ZZ) 1 426 RS1735404 Bushing 1
308 RS4135308 O-Ring 1 427 RS1735405 Tip Valve 1
309 RS4135309 Gasket-Cylinder 1 428 RS4150428 Spring 1
310 RS2125310 Packing-Cylinder 1 RSCAT4150PLK Product Label Kit for CAT4150 1
401 RS2125401 Trigger A 1 RSCAT4150GPLK Product Label Kit for CAT4150G 1
(Not Shown) - Tune-up kit, RS4150TK, including: 103, 104, 110, 304 (7), 308, 309, 310, 411, 412, 418 (2), and 425.
101
102
103
104
105
106
107
108
110
A
A
B
B
203
204
418
419
425
426
427
428
420
422
423
202
424
310
417
415
414
409
410
407
406
401
402
413
412
411
408
405
404
403
201
309
308
107
307
306
305
304
112
302
111
303
301
