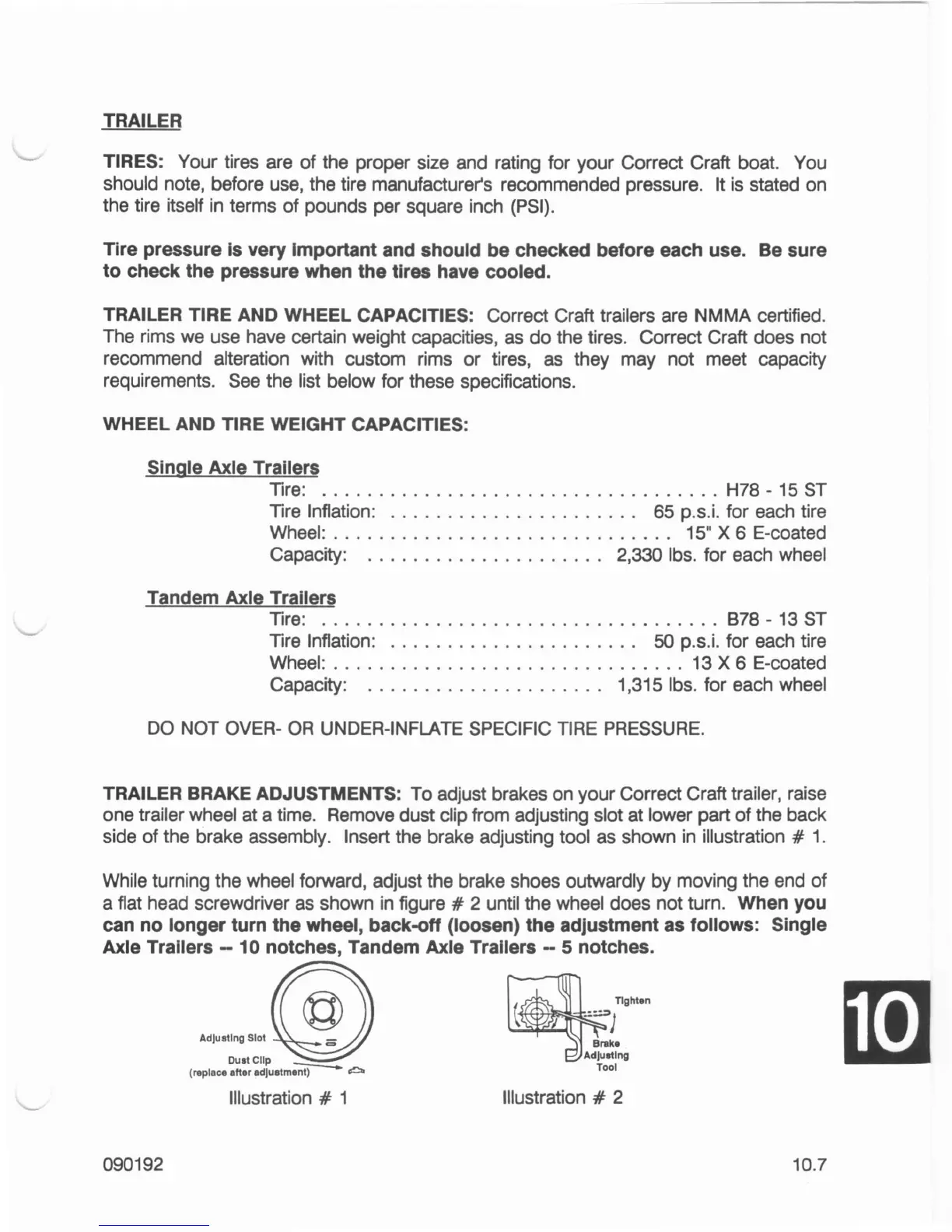

TRAILER
TIRES: Your tires are of the proper size and rating for your Correct Craft boat. You
should note, before use, the tire manufacturer's recommended pressure. It is stated on
the tire itself in terms of pounds per square inch
(PSI).
Tire pressure
Is
very Important and should be checked before each use.
Be
sure
to
check the pressure when the tires have cooled.
TRAILER TIRE AND WHEEL CAPACITIES: Correct Craft trailers are NMMA certified.
The rims we use have certain weight capacities, as
do
the tires. Correct Craft does not
recommend alteration with custom rims
or
tires, as they may not meet capacity
requirements.
See
the list below for these specifications.
WHEEL AND TIRE WEIGHT CAPACITIES:
Single Axle Trailers
Tire: H78 -
15
ST
Tire Inflation: 65 p.s.i. for each tire
Wheel: . . . . . . . . . . . . . . . . . . . . . . . . . . . .
..
15" X 6 E-coated
Capacity: 2,330
Ibs.
for each wheel
Tandem Axle Trailers
Tire: 878 -
13
ST
Tire Inflation:
50
p.s.i. for each tire
Wheel: 13 X 6 E-coated
Capacity: 1,315 Ibs. for each wheel
DO
NOT OVER-
OR
UNDER-INFLATE SPECIFIC TIRE
PRESSURE.
TRAILER BRAKE ADJUSTMENTS: To adjust brakes on your Correct Craft trailer, raise
one trailer wheel at a time. Remove dust clip from adjusting slot at lower part of the back
side of the brake assembly. Insert the brake adjusting tool as shown
in
illustration #
1.
While turning the wheel forward, adjust the brake shoes outwardly by moving the end of
a flat head screwdriver as shown
in
figure # 2 until the wheel does not turn. When you
can no longer turn the wheel, back-off (loosen) the adjustment as follows: Single
Axle Trailers -
10
notches, Tandem Axle Trailers - 5 notches.
.~T1ghten
,
..-
1
Adjusting Slot
--....
__
Brake
~
Adjuetlng
Dust Clip
~
Tool
(",place after sdjustment)
~
Illustration # 1
Illustration
# 2
090192
10.7
