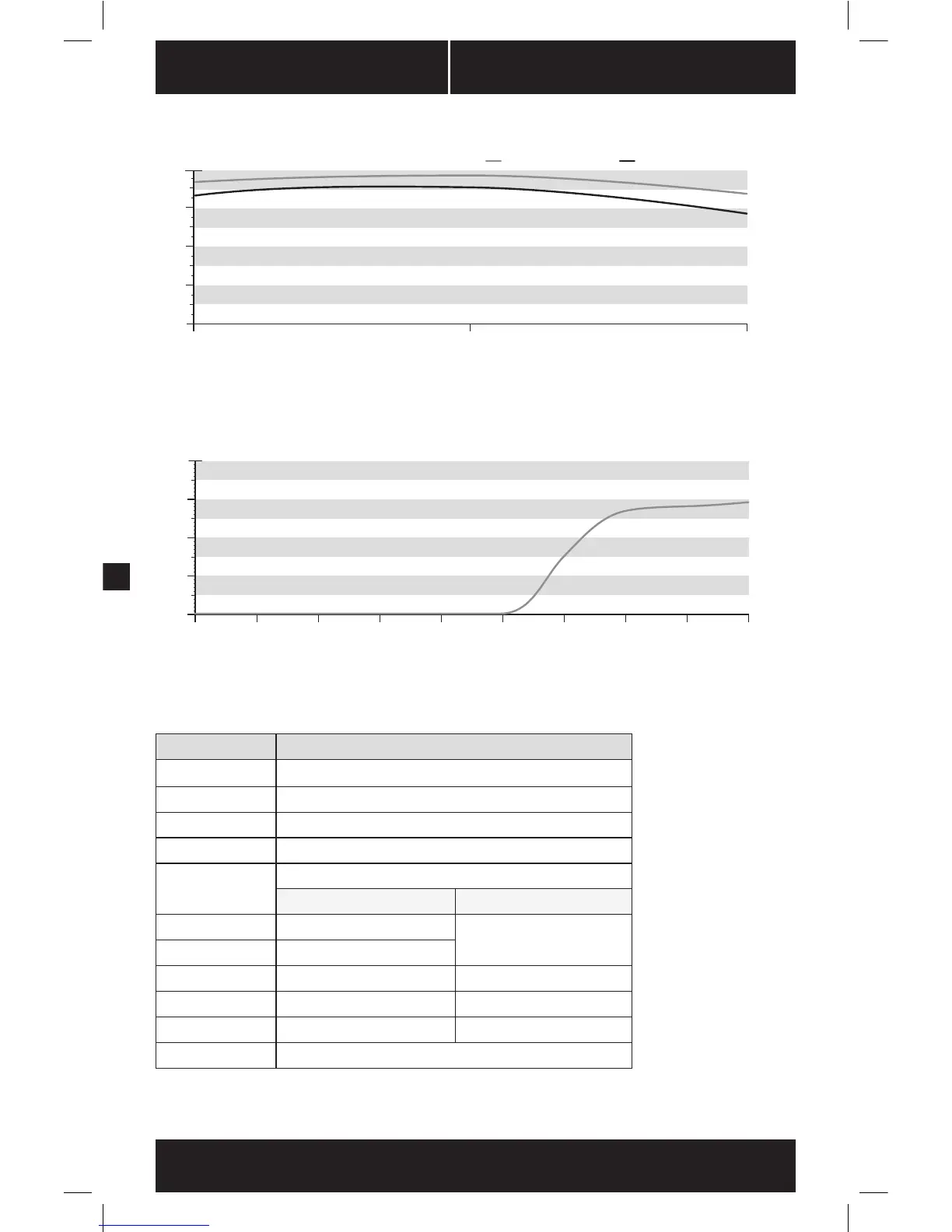

Corsair AX760 User Manual

6
AX SERIES
™
FAN NOISE (Decibels)
SYSTEM LOAD (Watts)
SYSTEM LOAD
% EFFICIENCY
INPUT 230Vac
INPUT 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%
FAN NOISE (Decibels)
SYSTEM LOAD (Watts)
SYSTEM LOAD
% EFFICIENCY
INPUT 230Vac INPUT 115Vac
20%10% 40% 60% 80% 100%
40
0
20
30
94
78
82
86
90
20% 100%50%
Corsair AX860 Power Supply Eciency
Corsair AX860 Power Supply Fan Noise Curve
AX760
MODEL 75-001304
AC INPUT RATING
AC Input 100-240V
Input Current 9.5-4.5A
Frequency 50-60Hz
DC OUTPUT RATING
MAX LOAD MAX OUTPUT
+3.3V 25A
125W
+5V 25A
+12V 63A 756W
-12V 0.5A 6W
+5Vsb 3A 15W
Total Power 760W

Corsair AX760 Specifications

General

Total power	760 W
AC input voltage	90 - 264 V
Power protection features	-
Cooling type	Active
Fan diameter	120 mm
On/off switch	Yes
Product color	Black
Cabling type	Fully-Modular
Floppy drive power connector	1
Number of SATA power connectors	12
Peripheral (Molex) power connectors (4-pin)	8
Purpose	PC
ATX version	2.31
Noise level	- dB
80 PLUS certification	80 PLUS Platinum
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Sustainability certificates	RoHS

Weight and Dimensions

Depth	160 mm
Width	150 mm
Height	86 mm
