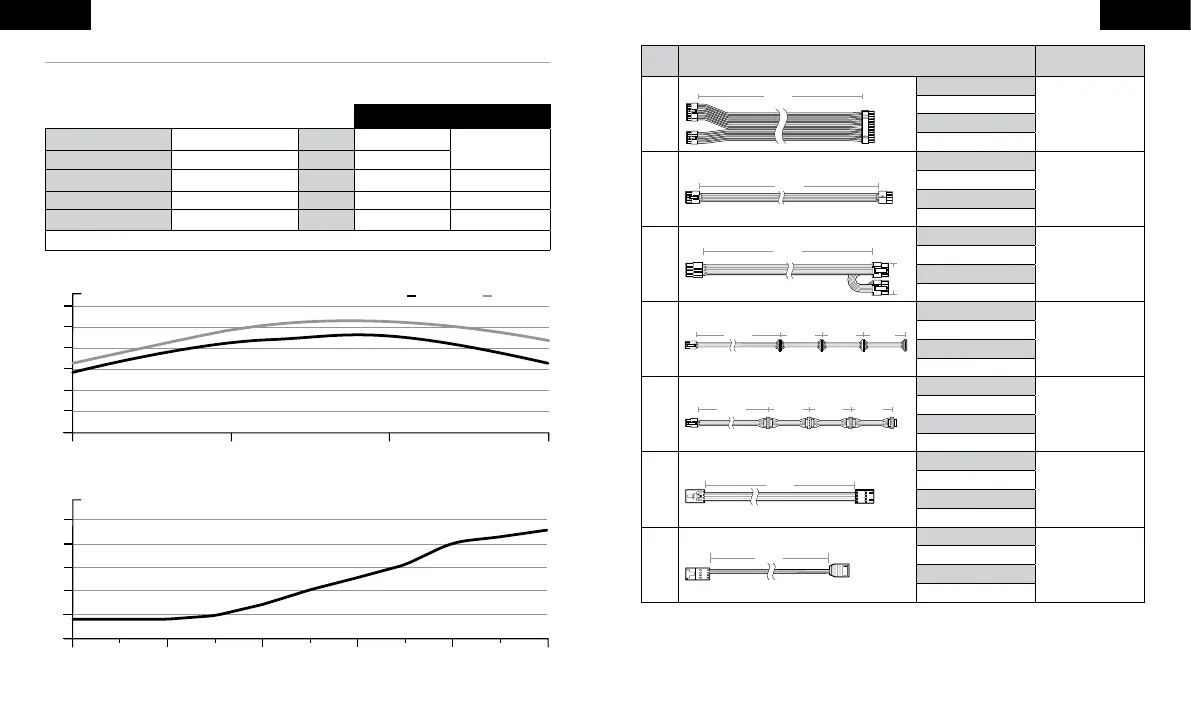

Corsair CX550F User Manual

3 4
Qty
CORSAIR CX750F RGB cable information
Total length
1
ATX 24 pin
Connectors per cable
610mm
(± 10mm)
1
Total connectors
1
2
EPS/ATX12V 8 pin (4+4)
Connectors per cable
650mm
(± 10mm)
1
Total connectors
2
2
PCIe 8 pin (6+2)
Connectors per cable
750mm
(± 10mm)
2
Total connectors
4
2
SATA (4 SATA)
Connectors per cable
800mm
(± 10mm)
4
Total connectors
8
1
PATA
Connectors per cable
750mm
(± 10mm)
4
Total connectors
4
1
iCUE RGB
Connectors per cable
500mm
(± 10mm)
1
Total connectors
1
1
iCUE RGB to ARGB
Connectors per cable
300mm
(± 10mm)
1
Total connectors
1
35
28
21
14
7
0
75
0
6004503001500
CORSAIR CX750F RGB POWER SUPPLY FAN NOISE CURVE
FAN NOISE (dB)
POWER OUTPUT (W)
CX750F RGB INCLUDED HARDWARE AND SPECIFICATIONS
Dimensions: 150mm (W) x 86mm (H) x 140mm (L)
Package contents: Power supply, AC cable, DC cables, mounting screws, safety leaflet
CORSAIR CX750F RGB POWER TABLE MAX LOAD MAX OUTPUT
MODEL RPS0135 +3.3V 20A
130W
PART NO. CP-9020218/CP-9020227 +5V 20A
AC INPUT RATING 100–240V +12V 62.5A 750W
INPUT CURRENT 10A–5A -12V 0.3A 3.6W
FREQUENCY 47–63Hz +5Vsb 3A 15W
TOTAL POWER: 750W
93
90
87
84
81
78
75
10
0
10 20 50
CORSAIR CX750F RGB POWER SUPPLY EFFICIENCY
input 115Vac input 230VacEFFICIENCY (%)
SYSTEM LOAD (%)
ENGLISH ENGLISH
550mm 100mm 100mm 100mm
455mm 115mm 115mm 115mm
650mm
610mm
500mm
300mm
450mm 100mm 100mm100mm
600mm
150mm

Corsair CX550F Specifications

General

Total power	550 W
Input current	10 - 5 A
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Cabling type	Fully-Modular
EPS power connector (8-pin)	Yes
Motherboard power connector	24-pin ATX
Number of PATA power connectors	1
Number of SATA power connectors	2
Peripheral (Molex) power connectors (4-pin)	-
Purpose	PC
ATX version	2.4
Noise level	- dB
80 PLUS certification	80 PLUS Bronze
Mean time between failures (MTBF)	100000 h
Power supply unit (PSU) form factor	ATX
Cooling type	Active
Fan diameter	120 mm
Product color	White
Number of fans	1 fan(s)
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	140 mm
Width	150 mm
Height	86 mm
