Cortex GS-6 - Page 11

11

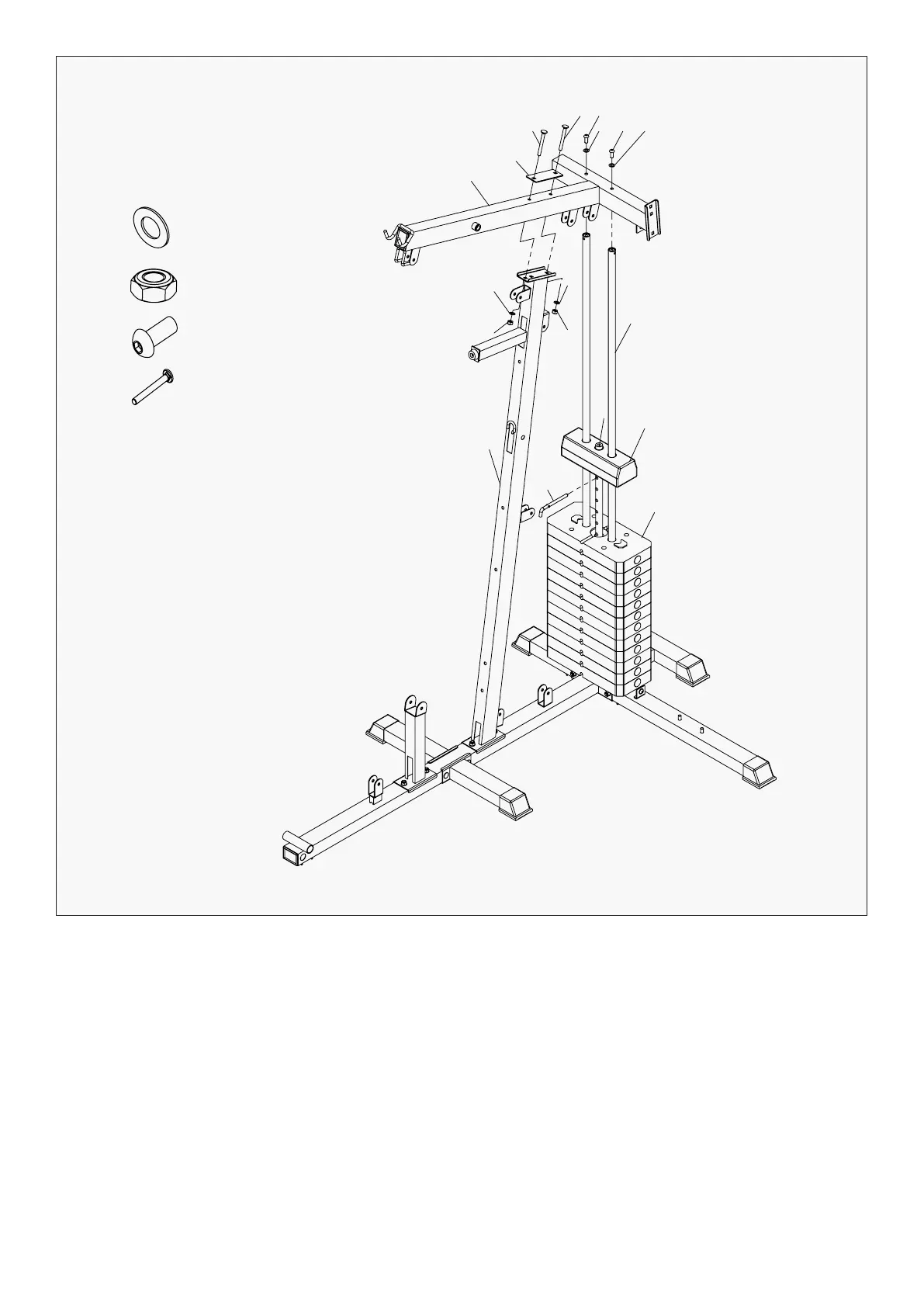

STEP 2
1. Slide the 12 Weight Plates (#56) onto the Guide Rods (#1). (Note: The groove side faces down). Insert
the Selector Rod (#57) through the centre hole.
2..Slide the Selector Stem (#58) onto the Guide Rod (#1). Insert the L- shaped Pin (#111).
3. Attach the Upper Frame (#90) to the Guide Rods (#1). Secure it with 2x Allen Bolt M10*20mm (#49)
and 2x Washer Φ10 (#14).
4. Secure the Upper Frame (#90) to the Front Vertical Frame (#2) with 2x Carriage Bolt M10*90mm (#31),
2x Washer Φ10 (#14), Bracket (#22) and 2x Aircraft Nut M10mm (#22).
31
31
22
90
49
49
14
14
14
20
20
2
111
57
58
56
1
14
#17 Φ10 - 4pcs
#23 M10 - 2pcs
#49 M10X20 - 2pcs
#34 M10x90 - 2pcs
ASSEMBLY INSTRUCTIONS |
